45MR-2404-T

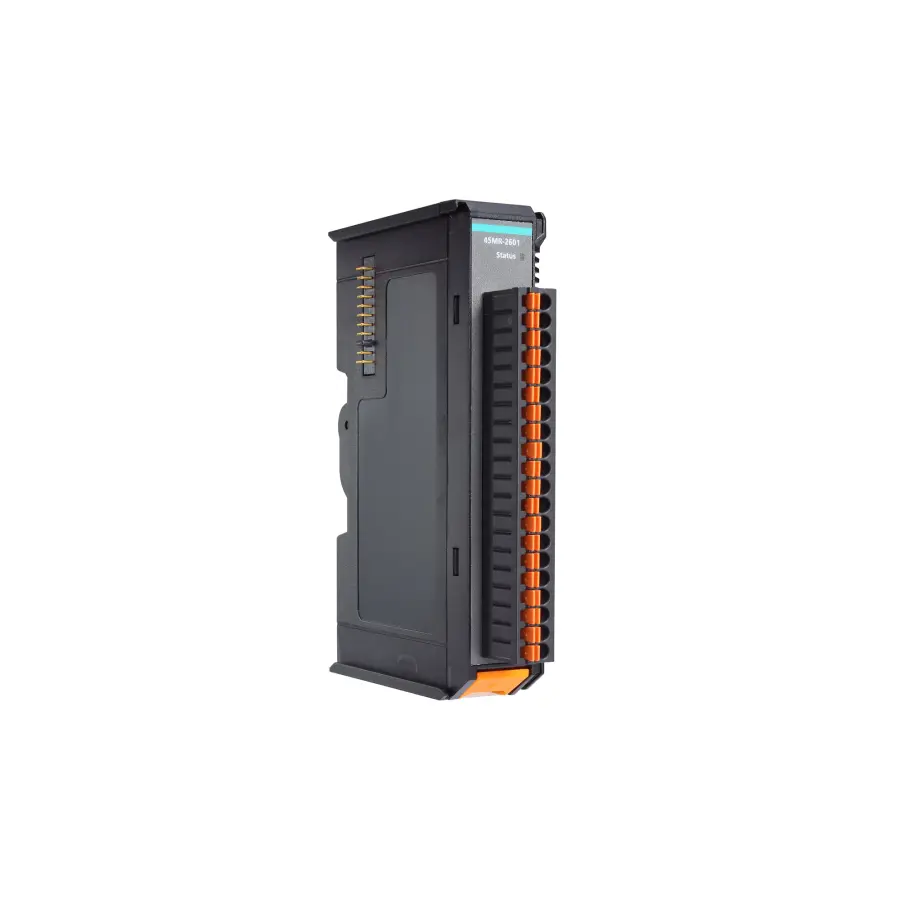

I/O module – Module for the ioThinx 4500 Series, 4 relays, form A, -40 to 75°C operating temperature

Input/Output Interface

• Relay Channels: 4
• Isolation: 3k VDC or 2k Vrms

Relays

• Connector: Spring-type Euroblock terminal
• Type: Form A (N.O.) power relay
• I/O Mode: DO
• Contact Current Rating: Resistive load: 2 A @ 30 VDC Resistive load: 2 A @ 250 VAC
• Relay On/Off Time: 10 ms (max.)
• Initial Insulation Resistance: 1000 mega-ohms (min.) @ 500 VDC
• Mechanical Endurance: 5,000,000 operations
• Electrical Endurance: 50,000 operations @ 2 A resistive load
• Contact Resistance: 100 milli-ohms (max.)

Power Consumption

• System Power: 44 mA @ 3.3 VDC
• Field Power: 31.2 mA @ 12 VDC 24.7 mA @ 24 VDC

Physical Characteristics

• Housing: Plastic
• Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
• Weight: 88.4 g (0.195 lb)
• Installation: DIN-rail mounting
• Strip Length: I/O cable, 9 to 10 mm
• Wiring: 18 AWG

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing) The relays of the 45MR-2404 may malfunction when operating in high condensation environments below 0°C.
• Altitude: Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Safety: UL 61010-2-201
• Hazardous Locations: ATEX, Class I Division 2

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 1,955,805 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 2 years
• Details: See www.moxa.com/warranty
