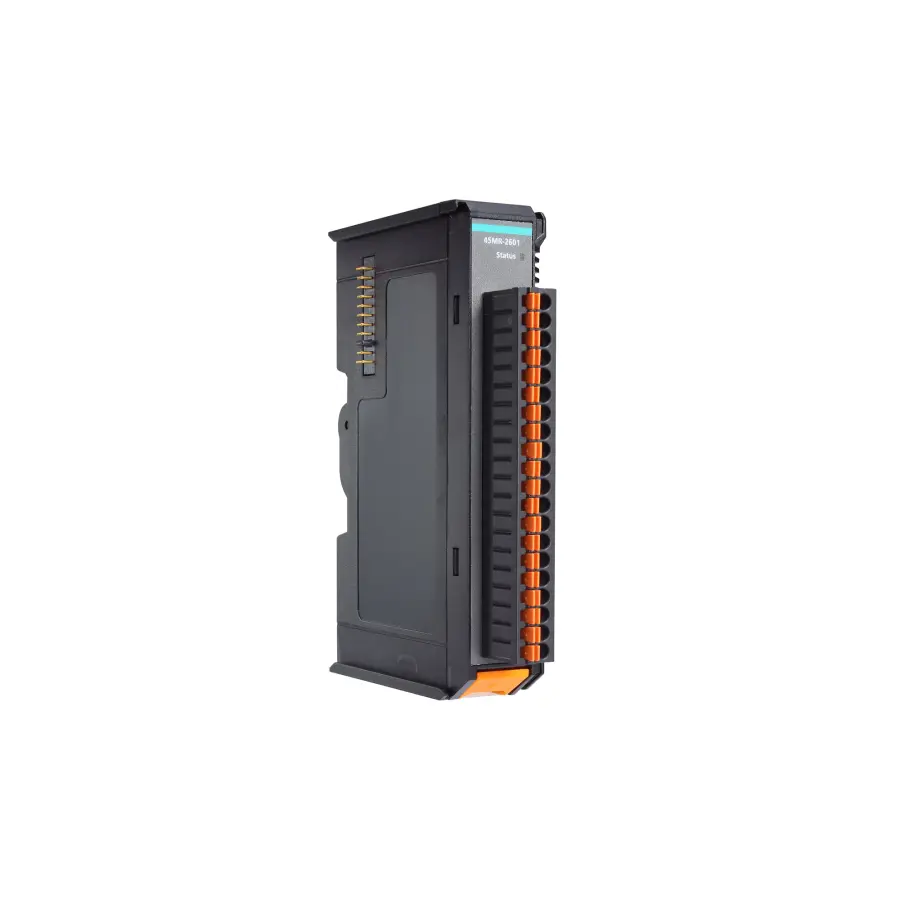

# 45MR-2601-T

I/O module, Temp: -40 to 75°C (-40 to 167°F)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200832025220 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

I/O module – Module for the ioThinx 4500 Series, 16 DOs, 24 VDC, source, -40 to 75°C operating temperatureInput/Output InterfaceDigital Output Channels: 16Isolation: 3k VDC or 2k VrmsDigital OutputsConnector: Spring-type Euroblock terminalI/O Type: SourceI/O Mode: DO or pulse output (only supports the first 4 channels)External Power: 12/24 VDCPulse Output Frequency: 1 kHzOver-Temperature Shutdown: 175°C (typical), 150°C (min.)Current Rating: 500 mA per channelPower ConsumptionSystem Power: 63.8 mA @ 3.3 VDCPhysical CharacteristicsHousing: PlasticDimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)Weight: 77 g (0.17 lb)Installation: DIN-rail mountingStrip Length: I/O cable, 9 to 10 mmWiring: 18 to 22 AWGEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Altitude: Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMFShock: IEC 60068-2-27Vibration: IEC 60068-2-6Safety: UL 61010-2-201Hazardous Locations: ATEX, Class I Division 2DeclarationGreen Product: RoHS, CRoHS, WEEEMTBFTime: 660,179 hrsStandards: Telcordia SR332WarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty
