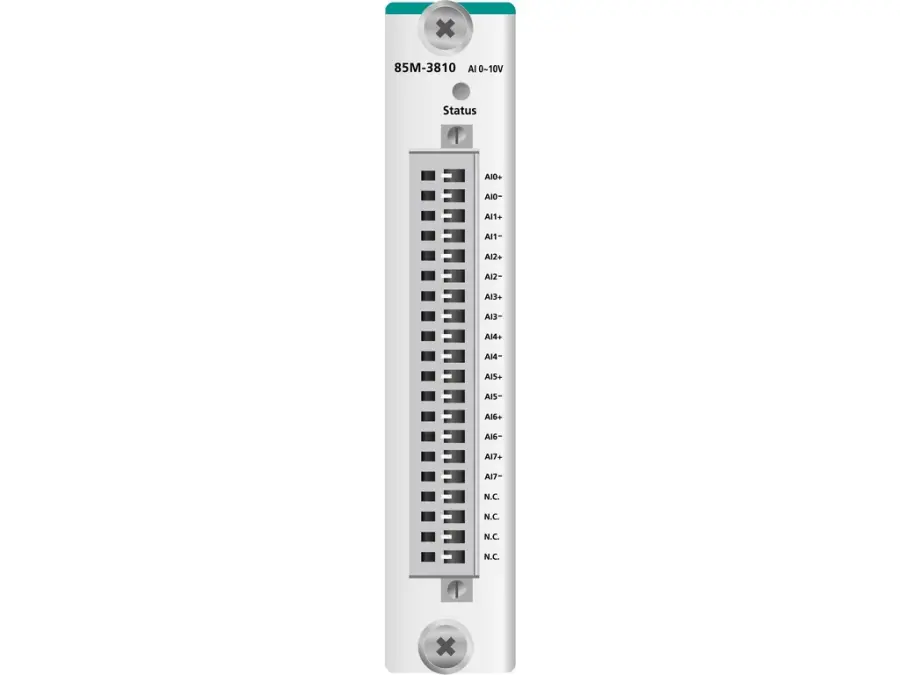

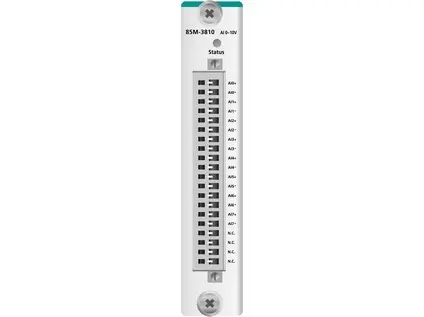

# 85M-3810-T

I/O module, Temp: -40 to 75°C (-40 to 167°F)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200822026670 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

I/O module – Module for the ioPAC 8500/8600 Series, 8 AIs, 0 to 10 V, -40 to 75°C operating temperatureInput/Output InterfaceAnalog Input Channels: 8Isolation: 3k VDC or 2k VrmsDigital OutputsPulse Output Frequency: 5 kHzAnalog InputsAccuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -40 to 75°CConnector: Spring-type Euroblock terminalI/O Type: DifferentialInput Impedance: 200 kilo-ohms (min.)Input Range: 0 to 10 VDCResolution: 16 bitsSampling Rate: All channels: 100 samples/sec Per channel: 12.5 samples/secPower ParametersPower Consumption: 43.3 mA @ 24 VDCPhysical CharacteristicsDimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)Weight: Under 80 gWiring: I/O cable, 14 to 28 AWGEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Altitude: 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.Standards and CertificationsEMC: EN 55032/24 EN 61000-6-2/-6-4EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFRailway: EN 50121-4 EN 50155 (complies with a portion of EN 50155 specifications)Safety: UL 508Shock: IEC 60068-2-27Vibration: IEC 60068-2-6MTBFTime: 1,530,690 hrsStandards: Telcordia SR332WarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog ioPAC_8500_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/ioPAC_8500_Series_ELVAC15.pdf)
* [Manual ioPAC_8500_Hardware_Users_Manual_v2_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/ioPAC_8500_Hardware_Users_Manual_v2_ELVAC15.pdf)
