85M-6810-T

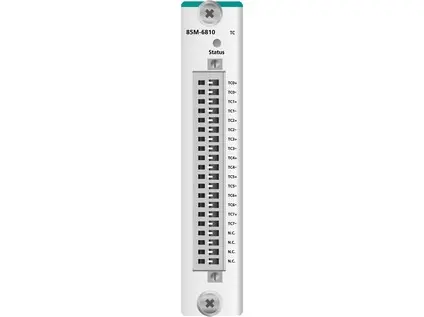

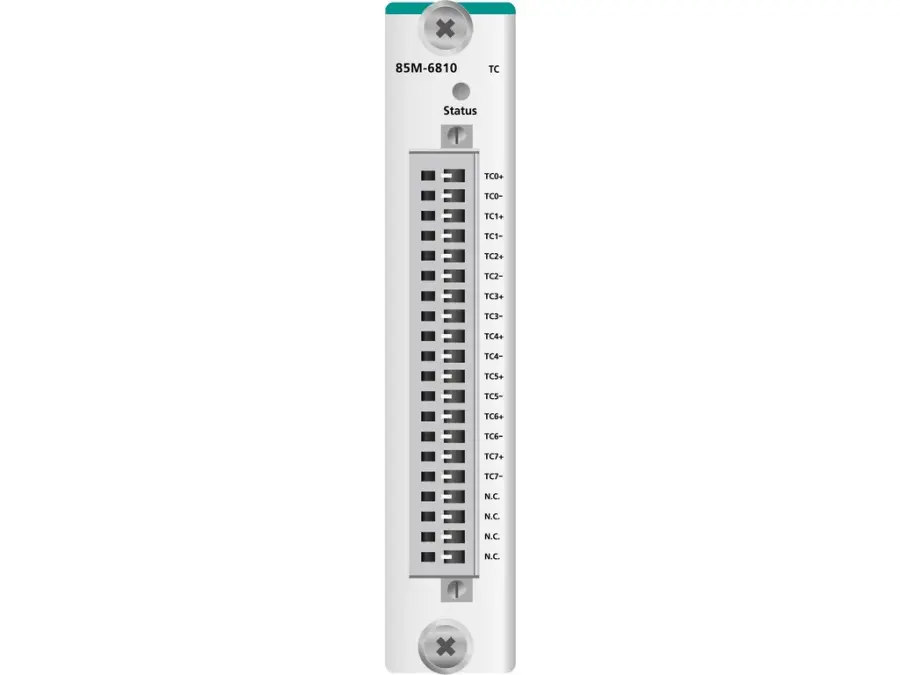

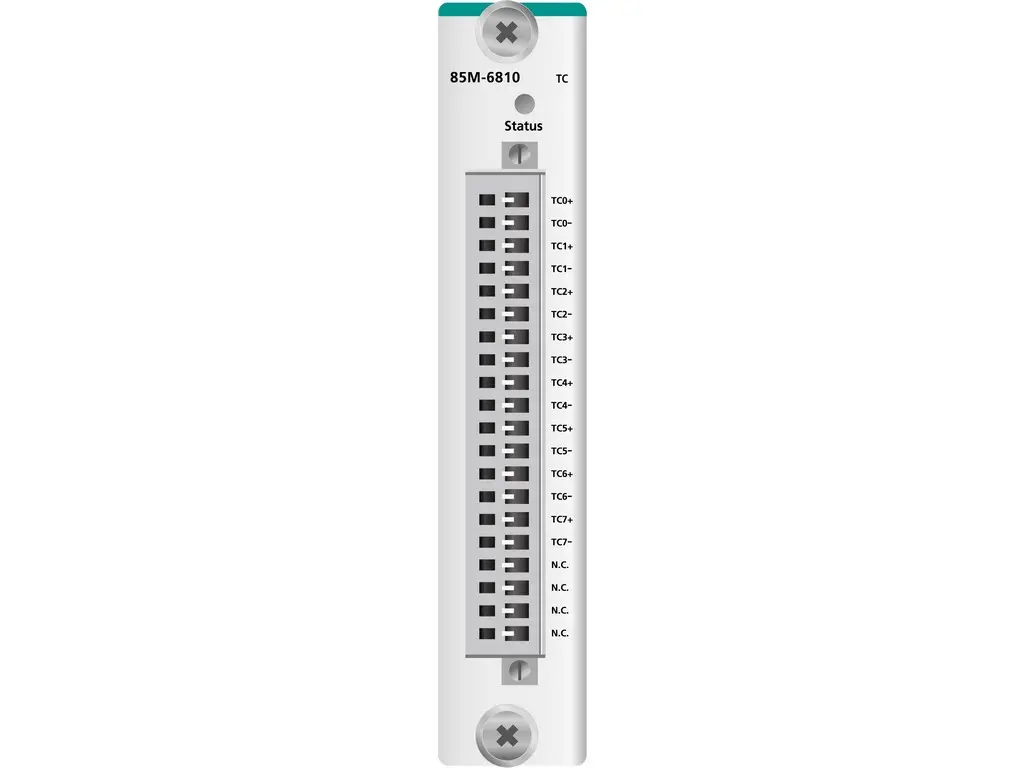

I/O module – Module for the ioPAC 8500/8600 Series, 8 TCs, -40 to 75°C operating temperature

Input/Output Interface

• Isolation: 3k VDC or 2k Vrms
• Thermocouple Channels: 8

Digital Outputs

• Pulse Output Frequency: 5 kHz

Thermocouples

• Millivolt Accuracy: ±0.1% FSR @ 25°C ±0.3% FSR @ -40 to 75°C
• Connector: Spring-type Euroblock terminal
• Input Impedance: 1 mega-ohms (min.)
• Millivolt Type: ±19.532 mV ±39.062 mV ±78.126 mV Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)
• Resolution: 16 bits
• Sampling Rate: All channels: 12 samples/sec Per channel: 1.5 samples/sec
• Sensor Type: J, K, T, E, R, S, B, N

Power Parameters

• Power Consumption: 24.1 mA @ 24 VDC

Physical Characteristics

• Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
• Weight: Under 80 g
• Wiring: I/O cable, 14 to 28 AWG

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMC: EN 55032/24 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Railway: EN 50121-4 EN 50155 (complies with a portion of EN 50155 specifications)
• Safety: UL 508
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6

MTBF

• Time: 2,324,891 hrs
• Standards: Telcordia SR332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
