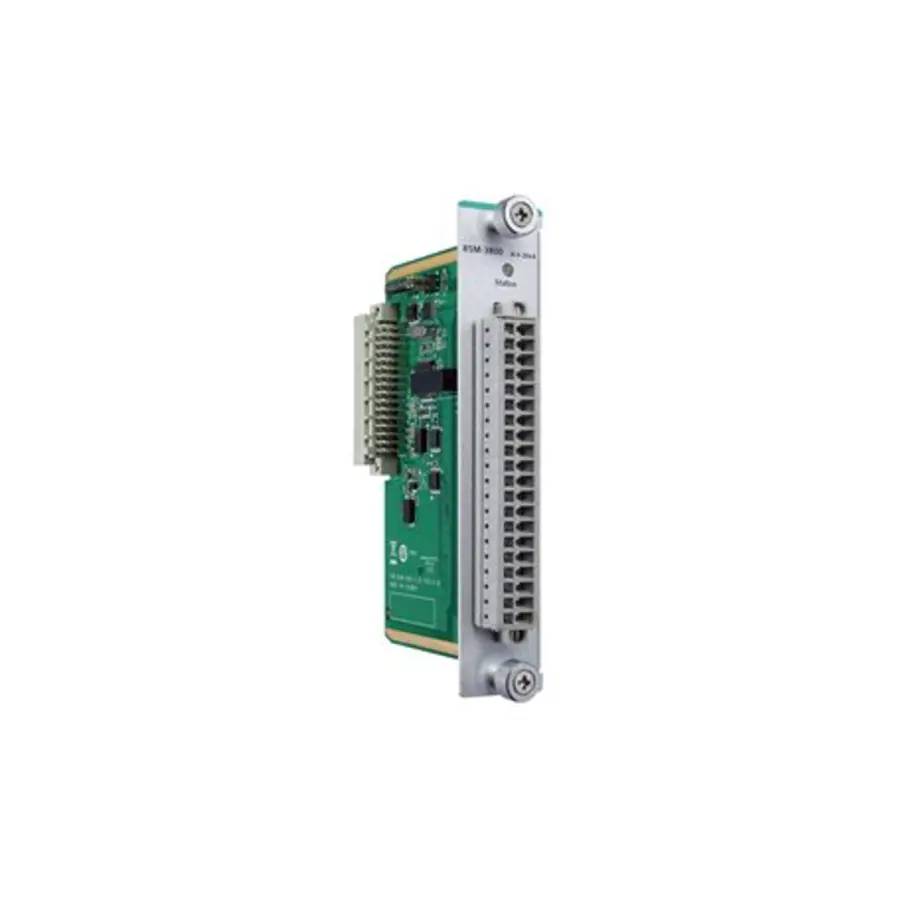

# 86M-2604D-T

I/O module, Temp: -40 to 75°C (-40 to 167°F)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 200822026980 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

I/O module – Module for the ioPAC 8600 Series, 6 Relays, form A (N.O.), channel LED, -40 to 75°C operating temperatureInput/Output InterfaceRelay Channels: 6Isolation: 3k VDC or 2k VrmsDigital OutputsConnector: Spring-type Euroblock terminalI/O Mode: DO or PWMRelaysConnector: Spring-type Euroblock terminalI/O Mode: Relay or PWMContact Current Rating: Resistive load: 5 A @ 30 VDC, 250 VACContact Resistance: 100 milli-ohms (max.)Electrical Endurance: 60,000 operations @ 5 A resistive loadInitial Insulation Resistance: 1,000 mega-ohms (min.) @ 500 VDCMechanical Endurance: 5,000,000 operationsPulse Output Frequency: 0.33 Hz at rated loadType: Form A (N.O.) power relayPower ParametersPower Consumption: 127 mA @ 24 VDCPhysical CharacteristicsDimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)Weight: Under 80 gWiring: I/O cable, 16 to 28 AWGEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.Standards and CertificationsEMC: EN 55032/24, EN 61000-6-2/-6-4EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFRailway: EN 50121-4, EN 50155Safety: UL 508Shock: IEC 60068-2-27Vibration: IEC 60068-2-6MTBFTime: 4,173,843 hrsStandards: Telcordia SR332WarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty
