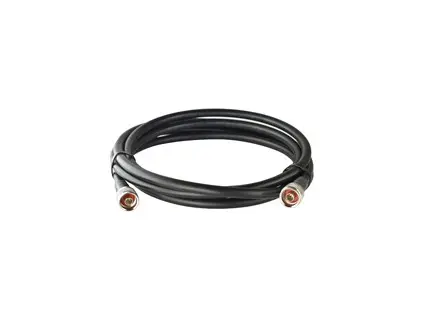

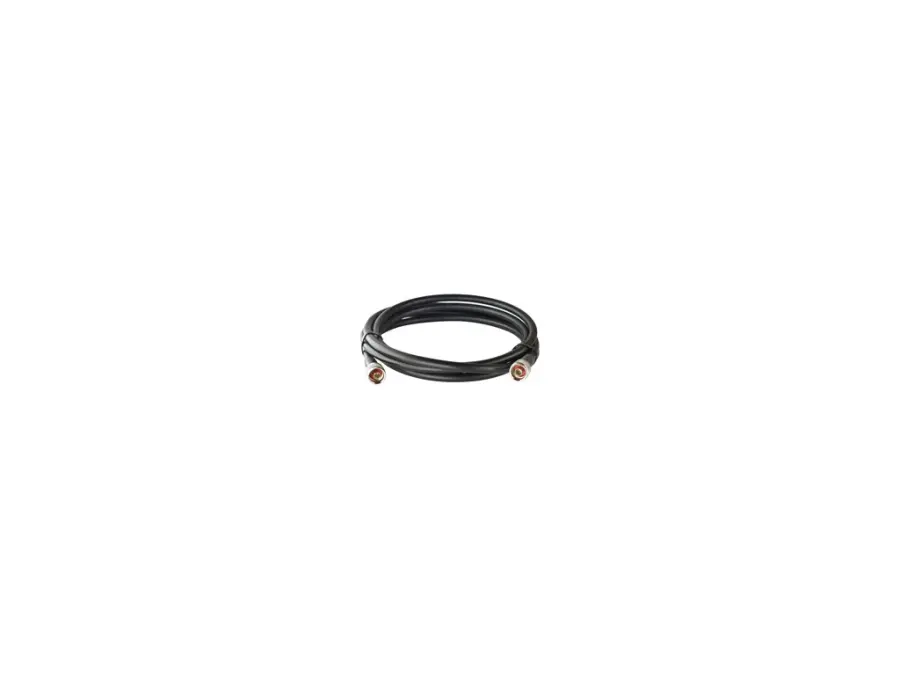

A-CRF-NMNM-LL4-300

Cable – N-type (male) to N-type (male) LMR-400 Lite cable, 3 m

Physical Characteristics

• Cable Type: LMR-400 Lite
• Connector Type: N-type (Male) to N-type (Male)
• Cable Length: 3 m
• Outer Diameter: 10.29 mm (0.41 in)
• Min. Bend Radius: 24.5 mm (0.96 in)
• Impedance: 50 ohms
• V.S.W.R.: 1.65:1 Max @ 5150 to 5875 MHz
• Insertion Loss: -1.6 dB (max.)

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
