title: "A52-DB9F w/ Adapter"
category: "Industrial Communication > Serial Interface Converters > RS-232/422/485 Converters"
---

**Kategorie:** Industrial Communication > Serial Interface Converters > RS-232/422/485 Converters

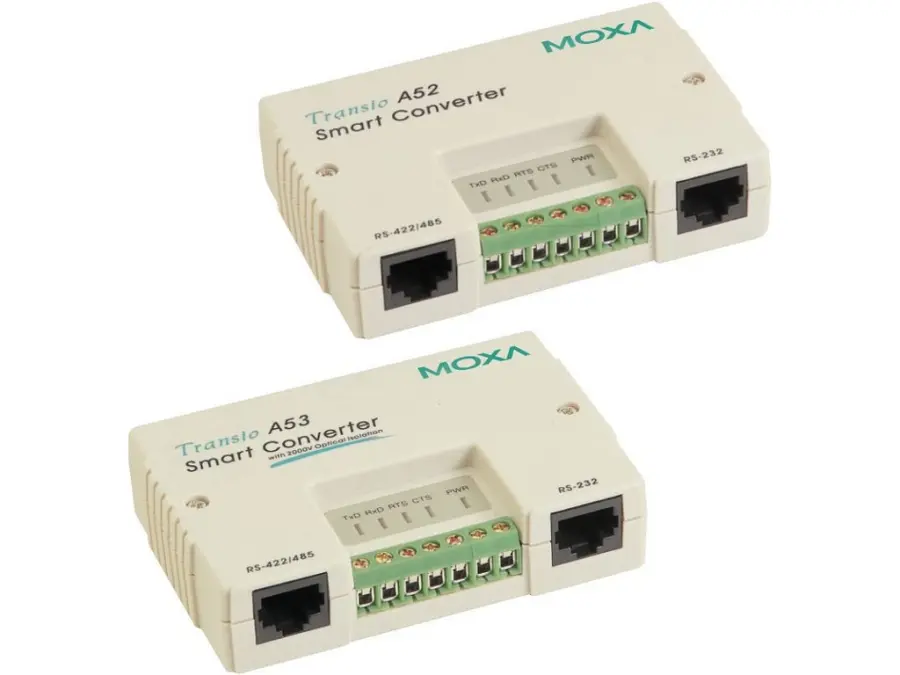

# A52-DB9F w/ Adapter

Serial converter, Serial: RS-232 RS-422 RS-485, Temp: 0 to 55°C (32 to 131°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181604021110 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial converter – RS-232/422/485 converter with adapter, DB9F cableSerial InterfaceConnector: 10-pin RJ45Flow Control: RTS/CTSNo. of Ports: 2RS-485 Data Direction Control: ADDC (automatic data direction control)Serial Standards: RS-232 RS-422 RS-485Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPower ParametersInput Current: 170 mA @ 9 VDCInput Voltage: 9 to 30 VDCNo. of Power Inputs: 1Overload Current Protection: SupportedPower Consumption: 170 mA @ 9 VDCSource of Input Power: Power input jackPhysical CharacteristicsHousing: PlasticIP Rating: IP30Dimensions: 90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)Weight: 85 g (0.19 lb)Installation: DesktopEnvironmental LimitsOperating Temperature: 0 to 55°C (32 to 131°F)Storage Temperature (package included): -20 to 75°C (-4 to 167°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMFEnvironmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3Vibration: IEC 60068-2-6MTBFTime: 1,870,854 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog A53_DS_ELVAC15_15](https://www.elvac.eu/files/shop/moxa/datasheet/A53_DS_ELVAC15_15.pdf)
* [Manual Transio_A52_A53_QIG_v8_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/Transio_A52_A53_QIG_v8_ELVAC15.pdf)
