ANT-5G-ASM-03

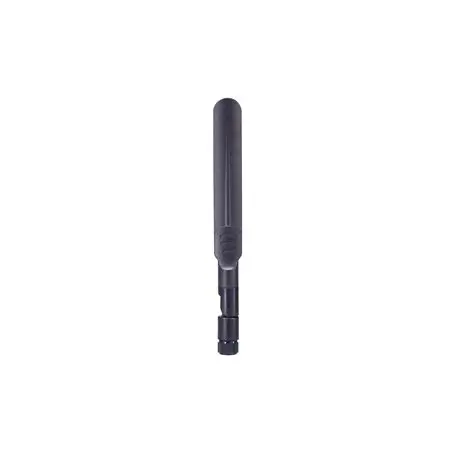

Antenna – 3 dBi GSM/UMTS/LTE/5G NR dipole antenna with SMA (male) connector

Antenna Characteristics

• Frequency: 617 to 960 MHz 1420 to 1561 MHz 1710 to 2170 MHz 2300 to 2690 MHz
• Antenna Type: Omni-directional
• Typical Antenna Gain: 3.02 dBi @ 617 to 698 MHz (5G NR n71)0.70 dBi @ 698 to 824 MHz (LTE 700)0.63 dBi @ 824 to 960 MHz (GSM 850/900)2.50 dBi @ 1420 to 1561 MHz (LTE Japan B74, 75, 76)2.83 dBi @ 1710 to 1880 MHz (DCS)2.91 dBi @ 1850 to 1990 MHz (PCS)3.65 dBi @ 1920 to 2170 MHz (UMTS1)3.67 dBi @ 2300 to 2690 MHz (LTE 2600)
• Connector: SMA (male)
• Impedance: 50 ohms
• Polarization: Vertical Linear
• HPBW/Horizontal: 360°
• V.S.W.R.: < 5.85 @ 617 to 960 MHz< 2 @ 1420 to 1561 MHz< 3 @ 1710 to 2690 MHz

Physical Characteristics

• Weight: 35.8 g (0.08 lb)
• Length: 157.5 mm (6.2 in)
• Radome Color: Black
• Radome Material: Plastic
• Installation: Straight mount

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
