ANT-LTEUS-ASM-01

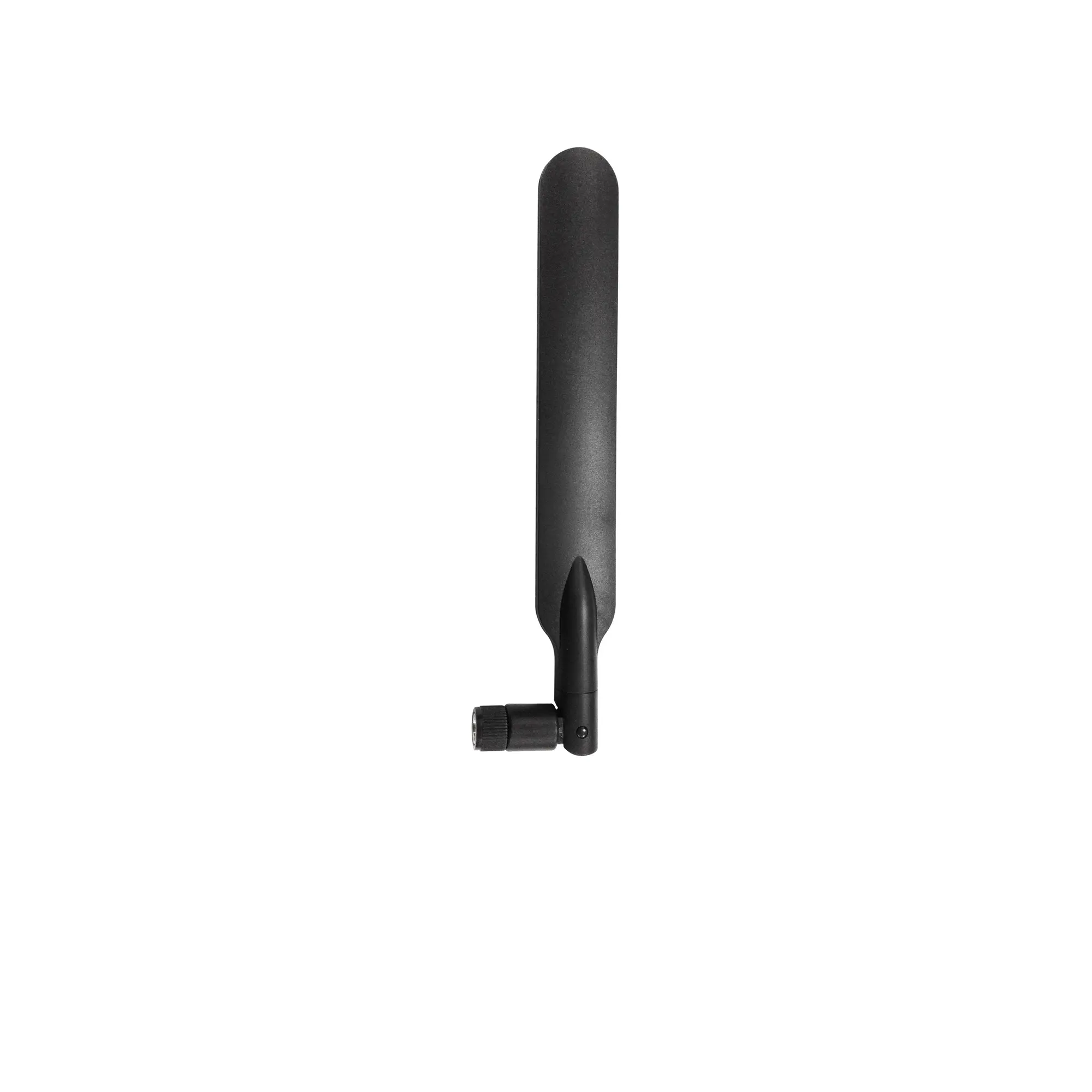

Antenna – GSM/GPRS/EDGE/UMTS/HSPA/LTE, 1 dBi, omnidirectional rubber-duck antenna

Antenna Characteristics

• Frequency: 700/850/900/1700/1900/2600 MHz
• Antenna Type: Omni-directional
• Typical Antenna Gain: 1 dBi @ 698 to 960 MHz 2 dBi @ 1710 to 1990 MHz 2 dBi @ 2300 to 2400 MHz 2 dBi @ 2500 to 2700 MHz
• Connector: SMA (male)
• Impedance: 50 ohms
• Polarization: Linear, Vertical
• HPBW/Horizontal: 360°
• V.S.W.R.: < 3

Physical Characteristics

• Weight: 26 g (0.06 lb)
• Length: 205 mm (8.07 in)
• Radome Color: Black
• Radome Material: Plastic
• Installation: Straight mount

Environmental Limits

• Operating Temperature: -30 to 75°C (-22 to 167°F)
• Storage Temperature (package included): -30 to 75°C (-22 to 167°F)
• Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
