# ANT-WDB-ANM-0306

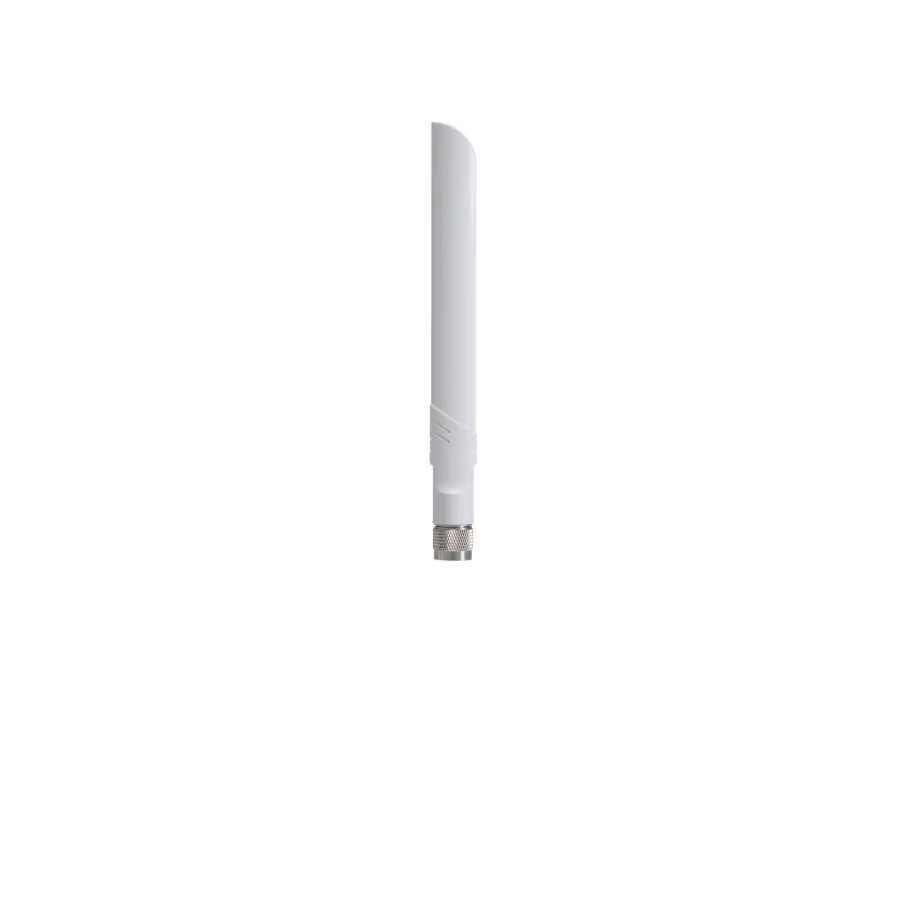

Antenna, Material: PC-9330, Dimensions: Diameter: 22 mm (0.87 in) Length: 215 mm (8.46 in)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 183220111066 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Antenna – 3 dBi at 2.4 GHz or 6 dBI at 5 GHz, N-type (male), omnidirectional antennaAntenna CharacteristicsFrequency: 2.4 to 2.5, 4.9 to 5.825 GHzAntenna Type: Omni-directionalTypical Antenna Gain: 3.5/6 dBiConnector: N-type (male)Impedance: 50 ohmsPolarization: LinearHPBW/Horizontal: 360°V.S.W.R.: 2:1 max.Power Handling: 1 W max.Physical CharacteristicsIP Rating: IP67Dimensions: Diameter: 22 mm (0.87 in) Length: 215 mm (8.46 in)Weight: 68.9 g (0.15 lb)Radome Color: WhiteRadome Material: PC-9330Installation: Straight mountEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 75°C (-40 to 167°F)Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)WarrantyWarranty Period: 1 yearDetails: See www.moxa.com/warranty
