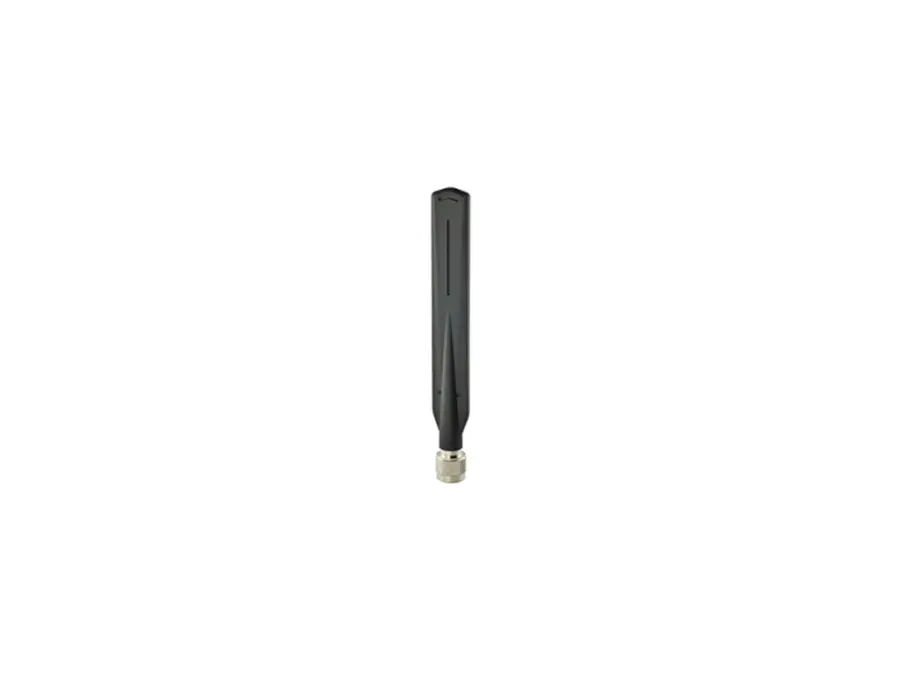

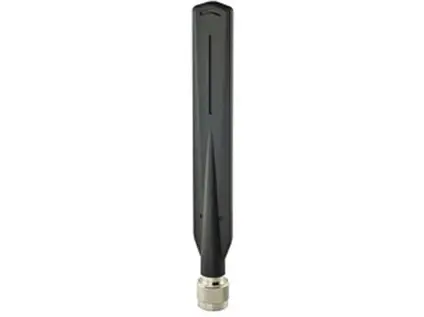

ANT-WDB-ANM-0502

Antenna – 5 dBi at 2.4 GHz or 2 dBI at 5 GHz, N-type (male), omnidirectional antenna

Antenna Characteristics

• Frequency: 2.4 to 2.5, 5.1 to 5.9 GHz
• Antenna Type: Omni-directional
• Typical Antenna Gain: 5/2 dBi
• Connector: N-type (male)
• Impedance: 50 ohms
• Polarization: Linear
• HPBW/Horizontal: 360°
• HPBW/Vertical: 65°
• V.S.W.R.: 1:2 max.
• Power Handling: 2 W (max.)

Physical Characteristics

• Weight: 72 g (0.16 lb)
• Length: 189.4 mm (7.46 in)
• Diameter: 26 mm (1.02 in)
• IP Rating: IP67
• Radome Color: Black
• Radome Material: NY66
• Installation: Straight mount

Environmental Limits

• Operating Temperature: -40 to 80°C (-40 to 176°F)
• Storage Temperature (package included): -40 to 80°C (-40 to 176°F)
• Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
