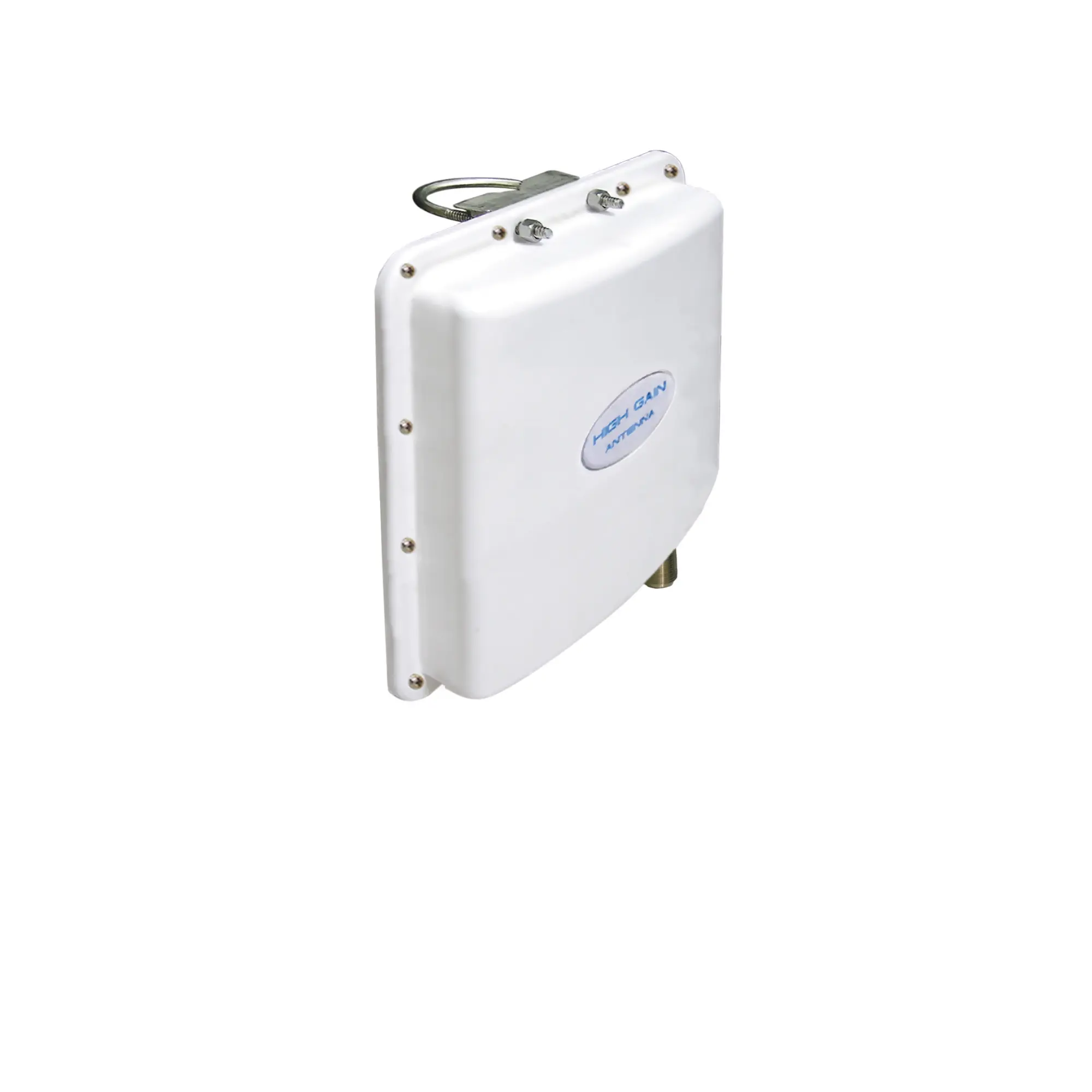

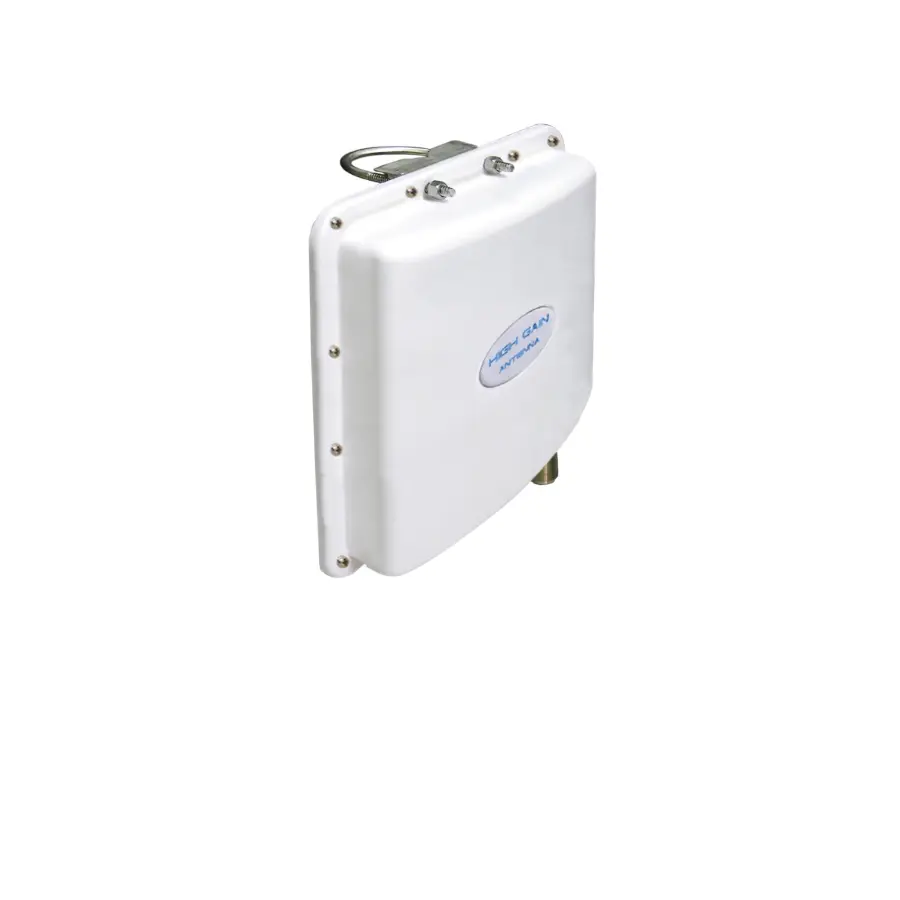

ANT-WDB-PNF-1011

Antenna – 10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna

Antenna Characteristics

• Frequency: 2.4 to 2.4835, 5.15 to 5.85 GHz
• Antenna Type: Directional, Panel
• Typical Antenna Gain: 10/11 dBi
• Connector: N-type (female)
• Impedance: 50 ohms
• HPBW/Horizontal: 40°
• HPBW/Vertical: 30°
• V.S.W.R.: 1:3.0 max.
• Power Handling: 10 W (max.)
• Polarization: Vertical

Physical Characteristics

• IP Rating: IP65
• Dimensions: 260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)
• Weight: 767 g (1.69 lb)
• Radome Color: White
• Radome Material: PC and ABS
• Installation: Pole mount

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Warranty

• Warranty Period: 1 year
• Details: See www.moxa.com/warranty
