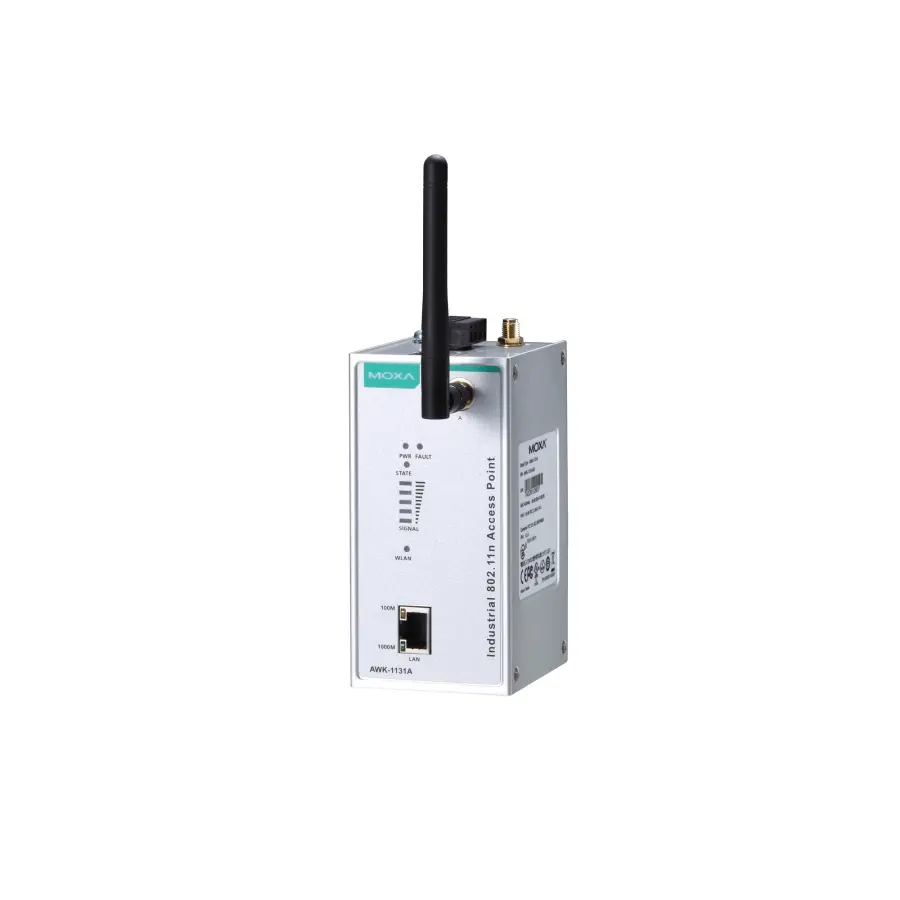

AWK-1131A-EU-T

Industrial wireless AP/client – Industrial Wi-Fi 4 (802.11n) wireless AP/client, EU band, -40 to 75°C operating temperature

WLAN Interface

• WLAN Standards: 802.11a/b/g/n 802.11i Wireless Security 2.4 GHz: 802.11n with 64 QAM support, 20/40 MHz5 GHz: 802.11n with 64 QAM support, 20/40 MHzWMM for QoS
• Frequency Band for EU (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
• Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
• Wireless Roaming: Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
• Transmission Rate: 2.4 GHz: Up to 144.4 Mbps5 GHz: Up to 300 Mbps
• Transmitter Power: Read more US, EU, JP 2.4 GHz 26 dBm 18 dBm 18 dBm 5 GHz (UNII-1) 23 dBm 21 dBm 21 dBm 5 GHz (UNII-2) 23 dBm 21 dBm 21 dBm 5 GHz (UNII-2e) 23 dBm 23 dBm 23 dBm 5 GHz (UNII-3) 23 dBm – – Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
• Transmitter Power for 802.11a (Dual Chain): 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (5 GHz, Dual Chain): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 18±1.5 dBm @ MCS7/15 40 MHz
• Transmitter Power for 802.11b (Dual Chain): 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
• Transmitter Power for 802.11g (Dual Chain): 23±1.5 dBm @ 6 to 24 Mbps 22±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 19±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (2.4 GHz, Dual Chain): 23±1.5 dBm @ MCS0/8 20 MHz 17±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
• Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -88 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -72 @ 54 Mbps Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
• Receiver Sensitivity for 802.11n (5 GHz): Typ. -69 dBm @ MCS7 20 MHz Typ. -71 dBm @ MCS15 20 MHz Typ. -63 dBm @ MCS7 40 MHz Typ. -68 dBm @ MCS15 40 MHz Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
• Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -93 dBm @ 1 Mbps Typ. -93 dBm @ 2 Mbps Typ. -93 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps
• Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps Typ. -86 dBm @ 9 Mbps Typ. -85 dBm @ 12 Mbps Typ. -85 dBm @ 18 Mbps Typ. -85 dBm @ 24 Mbps Typ. -82 dBm @ 36 Mbps Typ. -78 dBm @ 48 Mbps Typ. -74 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -70 dBm @ MCS7 20 MHz Typ. -69 dBm @ MCS15 20 MHz Typ. -67 dBm @ MCS7 40 MHz Typ. -67 dBm @ MCS15 40 MHz
• WLAN Operation Mode: Access point Client Sniffer
• Antenna: External, 2/2 dBi Omni-directional
• Antenna Connectors: 2 RP-SMA female

Ethernet Interface

• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.1X for authentication
• 10/100/1000BaseT(X) Ports (RJ45 connector): 1

Ethernet Software Features

• Management: DHCP Server/Client DNS HTTP IPv4 LLDP Proxy ARP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP VLAN Wireless Search Utility MXconfig MXview One MXview Wireless Turbo Roaming Analyzer
• Security: HTTPS/SSL, RADIUS, SSH
• Time Management: SNTP Client

Firewall

• Filter: ICMP MAC address IP protocol Port-based

Serial Interface

• Console Port: RS-232 8-pin RJ45

LED Interface

• LED Indicators: PWR, FAULT, STATE, SIGNAL, WLAN, LAN

Input/Output Interface

• Buttons: Reset button

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)
• Weight: 307 g (0.68 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Power Parameters

• Input Current: 0.56 A @ 12 VDC, 0.14 A @ 48 VDC
• Input Voltage: 12 to 48 VDC
• Power Connector: 1 removable 4-contact terminal block(s)
• Power Consumption: 6.96 W (max.)
• Reverse Polarity Protection: Supported

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Radio: EN 300 328 EN 301 489-1/17 EN 301 893 FCC, ID, SLE-WAPN008 MIC, NCC, RCM, SRRC, WPC, KC ANATEL
• Safety: EN 62368-1 UL 60950-1
• Cybersecurity: EN 18031-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 749,476 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
