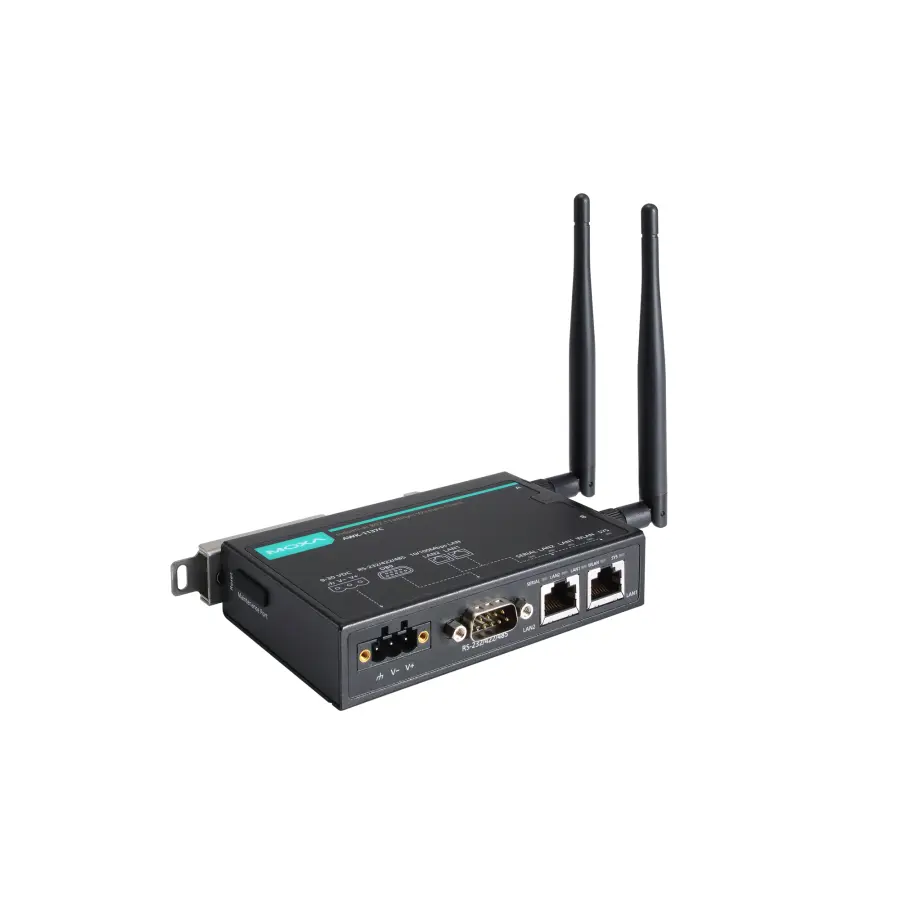

AWK-1137C-EU-T

Industrial wireless AP/client – Industrial Wi-Fi 4 (802.11n) wireless client, EU band, -40 to 75°C operating temperature

WLAN Interface

• WLAN Standards: 2.4 GHz: 802.11n with 64 QAM support, 20/40 MHz5 GHz: 802.11n with 64 QAM support,20/40 MHzWMM for QoS
• Frequency Band for EU (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
• Wireless Security: WEP encryption (64-bit and 128-bit) WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2-Personal
• Wireless Roaming: Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
• Transmission Rate: 2.4 GHz: Up to 144.4 Mbps5 GHz: Up to 300 Mbps
• Transmitter Power: Read more US, EU, JP 2.4 GHz 26 dBm 18 dBm 18 dBm 5 GHz (UNII-1) 23 dBm 23 dBm 23 dBm 5 GHz (UNII-2) 23 dBm 23 dBm 23 dBm 5 GHz (UNII-2e) 23 dBm 23 dBm 23 dBm 5 GHz (UNII-3) 23 dBm – – Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.
• Transmitter Power for 802.11a (Dual Chain): 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 29±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (5 GHz, Dual Chain): 23±1.5 dBm @ MCS0/8 20 MHz 18±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 18±1.5 dBm @ MCS7/15 40 MHz
• Transmitter Power for 802.11b (Dual Chain): 26±.1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps
• Transmitter Power for 802.11g (Dual Chain): 22±1.5 dBm @ 36 Mbps 19±1.5 dBm @ 54 Mbps 23±1.5 dBm @ 6 to 24 Mbps 20±1.5 dBm @ 48 Mbps
• Transmitter Power for 802.11n (2.4 GHz, Dual Chain): 23±1.5 dBm @ MCS0/8 20 MHz 17±1.5 dBm @ MCS7/15 20 MHz 23±1.5 dBm @ MCS0/8 40 MHz 17±1.5 dBm @ MCS7/15 40 MHz
• Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -87 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -73 @ 54 Mbps Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
• Receiver Sensitivity for 802.11n (5 GHz): Typ. -69 dBm @ MCS7 20 MHz Typ. -70 dBm @ MCS15 20 MHz Typ. -64 dBm @ MCS7 40 MHz Typ. -66 dBm @ MCS15 40 MHz Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
• Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -89 dBm @ 1 Mbps Typ. -89 dBm @ 2 Mbps Typ. -89 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps
• Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -88 dBm @ 6 Mbps Typ. -88 dBm @ 9 Mbps Typ. -88 dBm @ 12 Mbps Typ. -87 dBm @ 18 Mbps Typ. -84 dBm @ 24 Mbps Typ. -81 dBm @ 36 Mbps Typ. -77 dBm @ 48 Mbps Typ. -75 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -70 dBm @ MCS7 20 MHz Typ. -70 dBm @ MCS15 20 MHz Typ. -64 dBm @ MCS7 40 MHz Typ. -65 dBm @ MCS15 40 MHz
• WLAN Operation Mode: Client Client-Router Slave Sniffer
• Antenna: External, 2/2 dBi Omni-directional
• Antenna Connectors: 2 RP-SMA female

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.1Q for VLAN Tagging

Ethernet Software Features

• Management: DHCP Server/Client HTTP IPv4 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP Proxy ARP VLAN Wireless Search Utility MXconfig MXview One MXview Wireless Turbo Roaming Analyzer
• Routing: Port forwarding Static Route NAT
• Security: HTTPS/SSL, RADIUS, SSH
• Time Management: NTP Client SNTP Client

Firewall

• Filter: ICMP MAC address IP protocol Port-based

Serial Interface

• Connector: DB9 male
• Serial Standards: RS-232, RS-422/485, RS-232/422/485
• Operation Modes: Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: None, RTS/CTS, XON/XOFF
• Baudrate: 75 bps to 921.6 kbps
• Serial Data Log: 256 KB

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

LED Interface

• LED Indicators: SYS, LAN1, LAN2, WLAN, Serial

Input/Output Interface

• Buttons: Reset button

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
• Weight: 470 g (1.03 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Power Parameters

• Input Voltage: 9 to 30 VDC
• Power Connector: 1 removable 3-contact terminal block(s)
• Power Consumption: 11.7 W (max.)
• Reverse Polarity Protection: Supported

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 61000-6-2/-6-4 EN 55032/35
• EMI: CISPR 22, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Radio: EN 300 328 EN 301 489-1/17 EN 301 893 FCC, ID, SLE-1137C MIC, NCC, SRRC, WPC, KC, RCM
• Road Vehicles: E mark E1
• Safety: EN 62368-1 UL 60950-1
• Cybersecurity: EN 18031-1
• Vibration: IEC 60068-2
