Description

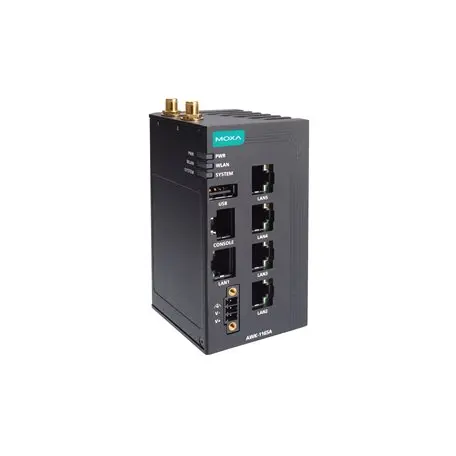

Industrial wireless AP/client – Industrial Wi-Fi 6 (802.11ax) wireless AP with 5 10/100/1000BaseT(X) ports, IP30, UN band, -40 to 75°C operating temperature
WLAN Interface
- WLAN Standards: 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHzWMM for QoS
- Frequency Band for UN (20 MHz operating channels): 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) Available channels change depending on the selected country or region code. 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
- Wireless Security: WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal
- Wireless Roaming: 802.11k/v/r 802.11k/v are not supported in Client-based modes.
- Transmission Rate: 2.4 GHz:Up to 573.5 Mbps5 GHz:Up to 1,201 Mbps
- Transmitter Power for 802.11a (Dual Chain): 21±1.5 dBm @ 6 Mbps 21±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (5 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS7 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS7 40 MHz
- Transmitter Power for 802.11ac (Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS8 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS9 40 MHz 21±1.5 dBm @ MCS0 80 MHz 21±1.5 dBm @ MCS9 80 MHz
- Transmitter Power for 802.11ax (Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 20±1.5 dBm @ MCS11 20 MHz 21±1.5 dBm @ MCS0 40 MHz 20±1,5 dBm @ MCS11 40 MHz 21±1.5 dBm @ MCS0 80 MHz 20±1.5 dBm @ MCS11 80 MHz
- Transmitter Power for 802.11b (Dual Chain): 21±1.5 dBm @ 1 Mbps 21±1.5 dBm @ 11 Mbps
- Transmitter Power for 802.11g (Dual Chain): 21±1.5 dBm @ 6 Mbps 21±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (2.4 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS7 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS7 40 MHz
- Transmitter Power for 802.11ac (2.4 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS8 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS7 40 MHz
- Transmitter Power for 802.11ax (2.4 GHz, Dual Chain): 21±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS11 20 MHz 21±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS11 40 MHz
- Receiver Sensitivity for 802.11a: Typ. -88 dBm @ 6 Mbps Typ. -72 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (5 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -68 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
- Receiver Sensitivity for 802.11ac (5 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -65 dBm @ MCS8 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -60 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz
- Receiver Sensitivity for 802.11ax (5 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -52 dBm @ MCS11 80 MHz
- Receiver Sensitivity for 802.11b: Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps
- Receiver Sensitivity for 802.11g: Typ. -90 dBm @ 6 Mbps Typ. -74 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (2.4 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz
- Receiver Sensitivity for 802.11ac (2.4 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -66 dBm @ MCS6 20 MHz Typ
