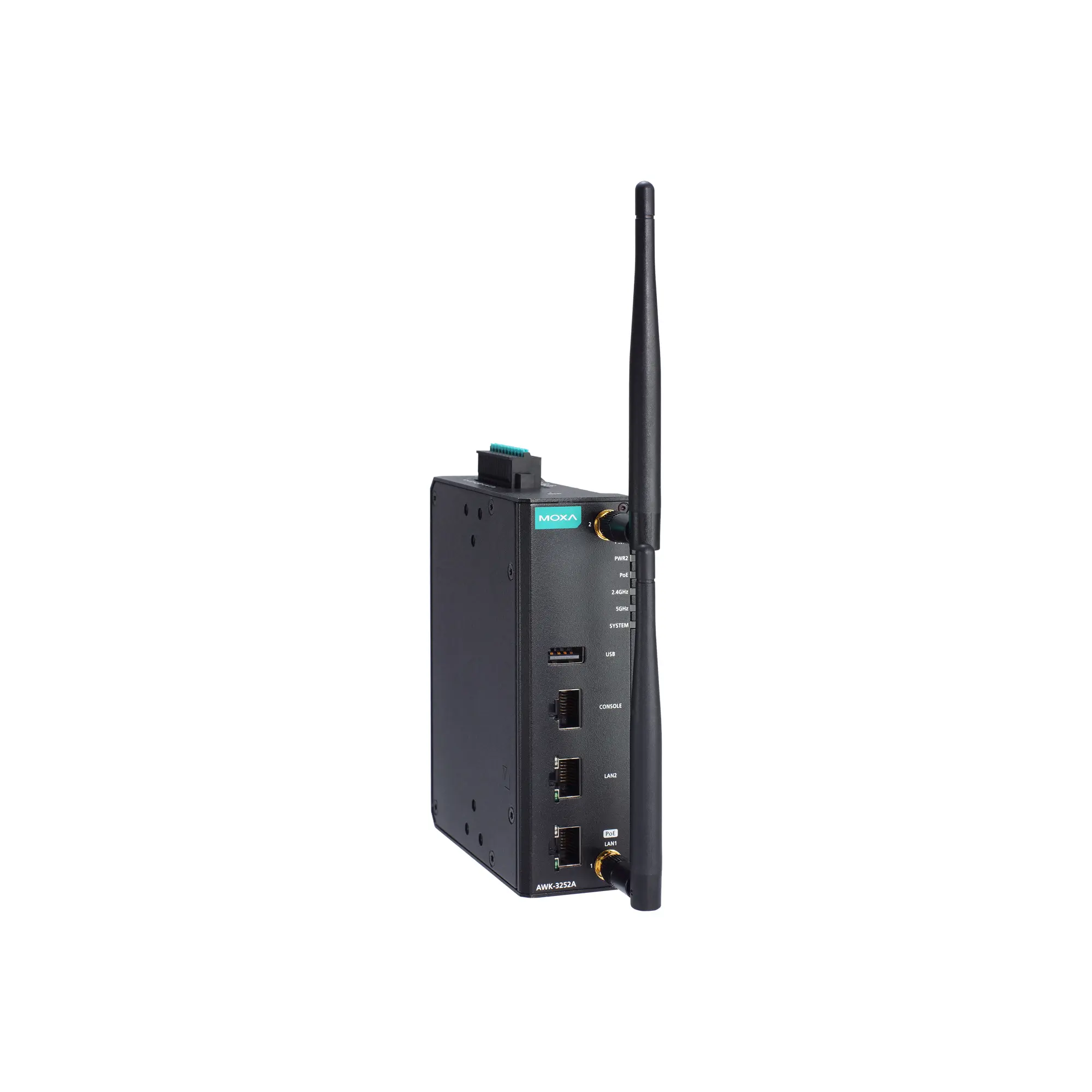

AWK-3252A-UN-T

Industrial wireless AP/client – Industrial Wi-Fi 5 (802.11ac) wireless AP/bridge/client, UN band, -40 to 75°C operating temperature

WLAN Interface

• WLAN Standards: 2.4 GHz: 802.11b/g/n with 256 QAM support5 GHz: 802.11a/n/ac Wave 2 with 256 QAM supportWMM for QoS
• Frequency Band for UN (20 MHz operating channels): 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.745 to 5.825 GHz (5 channels) Available channels change depending on the selected country or region code. 5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
• Wireless Security: WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal
• Wireless Roaming: Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual. 802.11r
• Transmission Rate: 2.4 GHz: Up to 400 Mbps5 GHz: Up to 867 Mbps
• Transmitter Power for 802.11a (Dual Chain): 25±1.5 dBm @ 6 Mbps 23±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (5 GHz, Dual Chain): 25±1.5 dBm @ MCS0 20 MHz 22±1.5 dBm @ MCS7 20 MHz 24±1.5 dBm @ MCS0 40 MHz 22±1.5 dBm @ MCS7 40 MHz
• Transmitter Power for 802.11ac (Dual Chain): 25±1.5 dBm @ MCS0 20 MHz 22±1.5 dBm @ MCS8 20 MHz 24±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS9 40 MHz 23±1.5 dBm @ MCS0 80 MHz 20±1.5 dBm @ MCS9 80 MHz
• Transmitter Power for 802.11b (Dual Chain): 29±1.5 dBm @ 1 Mbps 29±1.5 dBm @ 11 Mbps
• Transmitter Power for 802.11g (Dual Chain): 29±1.5 dBm @ 6 Mbps 26±1.5 dBm @ 54 Mbps
• Transmitter Power for 802.11n (2.4 GHz, Dual Chain): 28±1.5 dBm @ MCS0 20 MHz 25±1.5 dBm @ MCS7 20 MHz 28±1.5 dBm @ MCS0 40 MHz 25±1.5 dBm @ MCS7 40 MHz
• Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -88 @ 6 Mbps Typ. -72 @ 54 Mbps
• Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -88 dBm @ MCS0 20 MHz Typ. -68 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
• Receiver Sensitivity for 802.11ac: Typ. -88 dBm @ MCS0 20 MHz Typ. -65 dBm @ MCS8 20 MHz Typ. -85 dBm @ MCS0 40 MHz Typ. -60 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz
• Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps
• Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -90 dBm @ 6 Mbps Typ. -74 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz
• WLAN Operation Mode: Access point Client Client-Router Master Slave Sniffer Mesh
• Antenna: External, 2/2 dBi Omni-directional
• Antenna Connectors: 2 RP-SMA female

Ethernet Interface

• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.3at for PoE IEEE 802.3az for Energy-Efficient Ethernet IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication
• 10/100/1000BaseT(X) Ports (RJ45 connector): 1
• PoE Ports (10/100/1000BaseT(X), RJ45 connector): 1

Ethernet Software Features

• Management: DHCP Server DHCP Client DNS HTTP IPv4/IPv6 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP Telnet UDP VLAN MXconfig MXview One MXview Wireless Turbo Roaming Analyzer
• Routing: Port forwarding Static Route NAT
• Security: HTTPS/SSL, RADIUS, SSH Certificate Management
• Time Management: SNTP Client

Firewall

• Filter: ICMP MAC address IP protocol Port-based Wi-Fi ACL Client Isolation

Serial Interface

• Console Port: RS-232 8-pin RJ45

USB Interface

• Storage Port: USB Type A (for ABC-02 only)

LED Interface

• LED Indicators: PWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2

Input/Output Interface

• Digital Inputs: 2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to -30 V for state 0
• Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
• Buttons: Reset button

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
• Weight: 700 g (1.5 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Power Parameters

• Input Current: 12 to 48 VDC, 2.2 to 0.5 A
• Input Voltage: 12 to 48 VDC Redundant dual inputs 48 VDC Power over Ethernet
• Power Connector: 1 removable 10-contact terminal block(s)
• Power Consumption: 28.4 W (max.)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 61000-6-2/-6-4 EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMF: 30 A/m
• Cybersecurity: IEC 62443-4-2 Security Level 1 EN 18031-1
• Safety: IEC 62368-1 UL 62368-1
• Hazardous Locations: ATEX Class I Division 2 IECEx
• Road Vehicles: E mark E1
• Vibration: IEC 60068-2-6
• Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

MTBF

• Time: 653,801 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
