Description

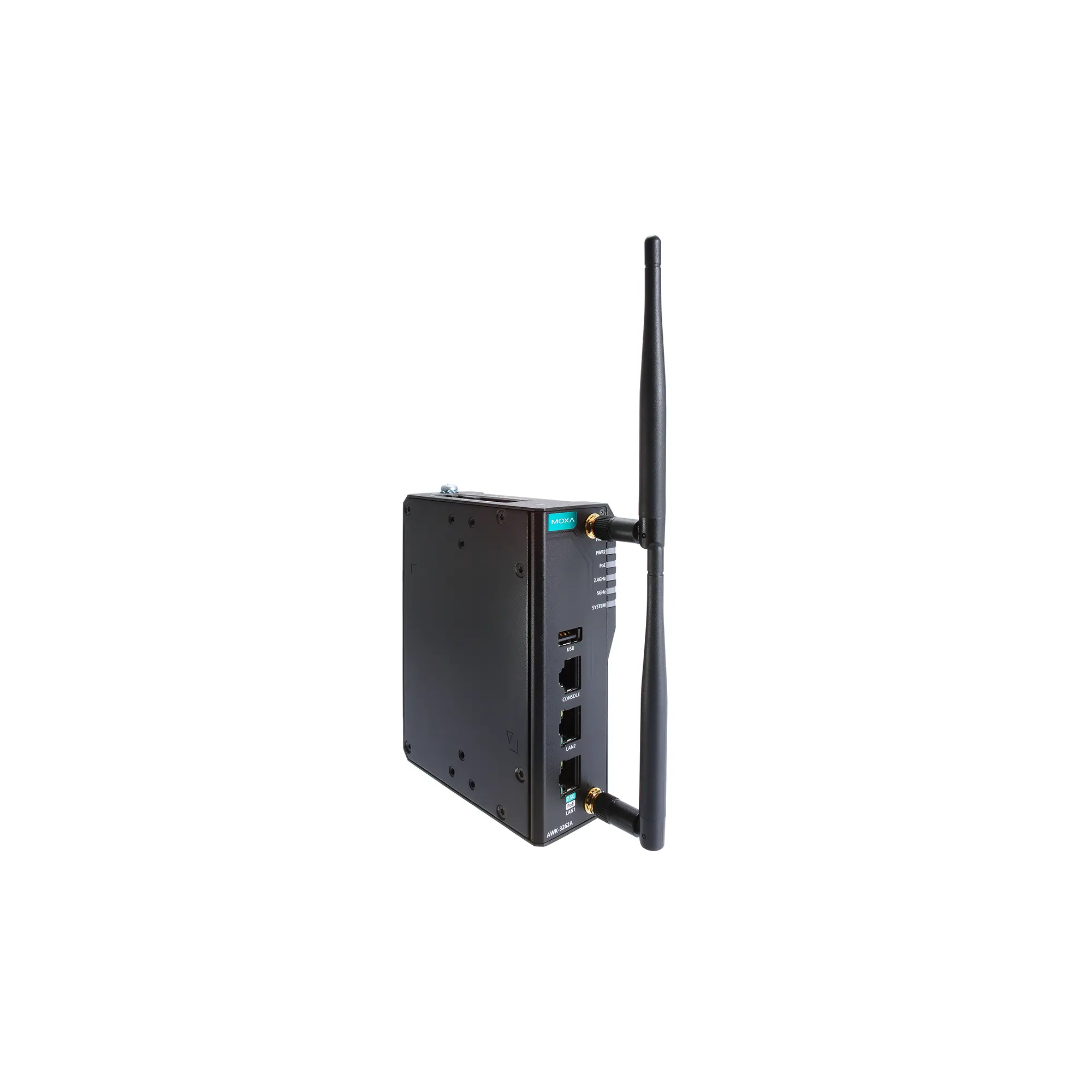

Industrial wireless AP/client – Advanced industrial Wi-Fi 6 (802.11ax) wireless AP/bridge/client with 1 10/100/1000/2500BaseT(X) and 1 10/100/1000BaseT(X) port, IP30, UN band, -40 to 75°C operating temperature
WLAN Interface
- WLAN Standards: 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHzWMM for QoS
- Frequency Band for UN (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels) Available channels change depending on the selected country or region code. 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. 5.745 to 5.825 GHz (5 channels)
- Wireless Security: WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal
- Wireless Roaming: Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual. 802.11k/v/r 802.11k/v are not supported in Client-based modes.
- Transmission Rate: 2.4 GHz:Up to 573.5 Mbps5 GHz:Up to 1,201 Mbps
- Transmitter Power for 802.11a (Dual Chain): 27 When the ambient operating temperature exceeds 70°C, the maximum transmitter power should be set to 24 dBm to prevent performance degradation. ±1.5 dBm @ 6 Mbps 24.5 When the ambient operating temperature exceeds 70°C, the maximum transmitter power should be set to 24 dBm to prevent performance degradation. ±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (5 GHz, Dual Chain): 26±1.5 dBm @ MCS0 20 MHz 22±1.5 dBm @ MCS7 20 MHz 26±1.5 dBm @ MCS0 40 MHz 22±1.5 dBm @ MCS7 40 MHz
- Transmitter Power for 802.11ac (Dual Chain): 26±1.5 dBm @ MCS0 20 MHz 22±1.5 dBm @ MCS8 20 MHz 25±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS9 40 MHz 25±1.5 dBm @ MCS0 80 MHz 21±1.5 dBm @ MCS9 80 MHz
- Transmitter Power for 802.11ax (Dual Chain): 25±1.5 dBm @ MCS0 20 MHz 20±1.5 dBm @ MCS11 20 MHz 25±1.5 dBm @ MCS0 40 MHz 20±1.5 dBm @ MCS11 40 MHz 25±1.5 dBm @ MCS0 80 MHz 20±1.5 dBm @ MCS11 80 MHz
- Transmitter Power for 802.11b (Dual Chain): 29 When the ambient operating temperature exceeds 70°C, the maximum transmitter power should be set to 26 dBm to prevent performance degradation. ±1.5 dBm @ 1 Mbps 29 When the ambient operating temperature exceeds 70°C, the maximum transmitter power should be set to 26 dBm to prevent performance degradation. ±1.5 dBm @ 11 Mbps
- Transmitter Power for 802.11g (Dual Chain): 27±1.5 dBm @ 6 Mbps 26±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (2.4 GHz, Dual Chain): 26±1.5 dBm @ MCS0 20 MHz 24±1.5 dBm @ MCS7 20 MHz 26±1.5 dBm @ MCS0 40 MHz 24±1.5 dBm @ MCS7 40 MHz
- Transmitter Power for 802.11ac (2.4 GHz, Dual Chain): 26±1.5 dBm @ MCS0 20 MHz 24±1.5 dBm @ MCS8 20 MHz 26±1.5 dBm @ MCS0 40 MHz 23±1.5 dBm @ MCS9 40 MHz
- Transmitter Power for 802.11ax (2.4 GHz, Dual Chain): 26±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS11 20 MHz 26±1.5 dBm @ MCS0 40 MHz 21±1.5 dBm @ MCS11 40 MHz
- Receiver Sensitivity for 802.11a: Typ. -90 dBm @ 6 Mbps Typ. -72 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (5 GHz): Typ. -89 dBm @ MCS0 20 MHz Typ. -69 dBm @ MCS7 20 MHz Typ. -86 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
- Receiver Sensitivity for 802.11ac (5 GHz): Typ. -89 dBm @ MCS0 20 MHz Typ. -66 dBm @ MCS8 20 MHz Typ. -86 dBm @ MCS0 40 MHz Typ. -62 dBm @ MCS9 40 MHz Typ. -83 dBm @ MCS0 80 MHz Typ. -58 dBm @ MCS9 80 MHz
- Receiver Sensitivity for 802.11ax (5 GHz): Typ. -90 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz Typ. -84 dBm @ MCS0 80 MHz Typ. -53 dBm @ MCS11 80 MHz
- Receiver Sensitivity for 802.11b: Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps
- Receiver Sensitivity for 802.11g: Typ. -91 dBm @ 6 Mbps Typ. -75 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (2.4 GHz): Typ. -91 dBm @ MCS0 20 MHz Typ. -72 dBm @ MCS7 20 MHz Typ. -88 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz
- Receiver Sensitivity for 802.11ac (2.4 GHz): Typ. -91 dBm @ MCS0 20 MHz Typ. -68 dBm @ MCS8 20 MHz Typ. -88 dBm @ MCS0 40 MHz Typ. -64 dBm @ MCS9 40 MHz
- Receiver Sensitivity for 802.11ax (2.4 GHz): Typ. -91 dBm @ MCS0 20 MHz Typ. -59 dBm @ MCS11 20 MHz Typ. -88 dBm @ MCS0 40 MHz Typ. -56 dBm @ MCS11 40 MHz
- WLAN Operation Mode: Access point Client Client-Router Master Slave Sniffer Mesh
- Antenna: External, 2/2 dBi Omni-directional
- Antenna Connectors: 2 RP-SMA female
Ethernet Interface
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3bz for 2.5GBaseT IEEE 802.3at for PoE IEEE 802.3bt for PoE IEEE 802.3az for Energy-Efficient Ethernet IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication
- 10/100/1000BaseT(X) Ports (RJ45 connector): 1
- PoE Ports (10/100/1000/2500BaseT(X), RJ45 connector): 1
Ethernet Software Features
- Management: DHCP Server DHCP Client DNS HTTP IPv4/IPv6 LLDP SMTP SNMPv1/v2c/v3 Syslog TCP/IP, UDP, VLAN MXconfig MXview One MXview Wireless Turbo Roaming Analyzer
- Routing: Port forwarding Static Route NAT
- Security: HTTPS/SSL, RADIUS, SSH Certificate Management
- Time Management: SNTP Client
Firewall
- Filter: ICMP MAC address IP protocol Port-based Wi-Fi ACL Client Isolation
Serial Interface
- Console Port: RS-232 8-pin RJ45
USB Interface
- Storage Port: USB Type A (for ABC-02 use only)
LED Interface
- LED Indicators: PWR1, PWR2, PoE, SYS, 2.4G, 5G
Input/Output Interface
- Digital Inputs: 2 Max. input current: 8 mA +13 to +30 V for state 1 +3 to -30 V for state 0
- Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons: Reset button
Physical Characteristics
- Housing: Metal
- IP Rating: IP30
- Dimensions: 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
- Weight: 755 g (1.7 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Power Parameters
- Input Current: 12 to 48 VDC, 2 to 0.5 A
- Input Voltage: 12 to 48 VDC Redundant dual inputs 48 VDC Power over Ethernet
- Power Connector: 1 removable 8-contact terminal block(s)
