# BXP-C100-C7-T-Win10

Industrial computer, CPU: BXP-C100-C1 models: Intel® Celeron® 6305E processor (Dual, RAM: SODIMM DDR4 slots x 1, up to 32 GB max., Storage: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101524123290 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

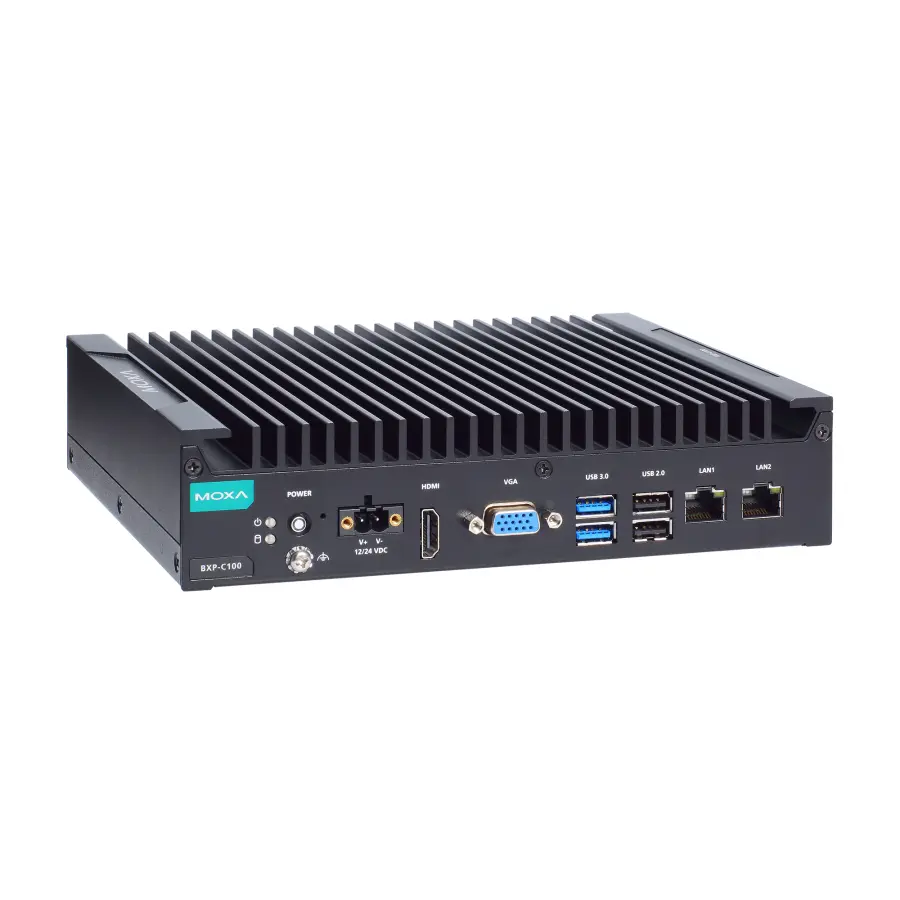

Industrial computer – Box computer with Intel® Core® i7-1185G7E processor, 2 LAN ports, 2 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 4 USB 2.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, Windows 10 LTSC 2021 preinstalled, -30 to 60°C operating temperatureComputerCPU: BXP-C100-C1 models: Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz)BXP-C100-C5 models: Intel® Core™ i5-1145G7E processor (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)BXP-C100-C7 models: Intel® Core™ i7-1185G7E processor (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.System Memory Pre-installed: 8 GB DDR4Storage Slot: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)Storage Pre-installed: BXP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10: 64 GB CFast cardSupported OS: Windows Images and Drivers Supported:- Windows 11 IoT Enterprise LTSC 2024 64-bit- Windows 11 Professional 64-bit - Windows 10 IoT Enterprise LTSC 2021 64-bitLinux drivers supported: - Debian 12 (kernel 6.1)- Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14)Graphics Controller: Intel® UHD GraphicsComputer InterfaceEthernet Ports: BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4All other models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2Serial Ports: BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:RS-232/422/485 ports x 10, software selectable (DB9 male) x 10BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:RS-232/422/485 ports x 5, software selectable (DB9 male) x 5All other models:RS-232/422/485 ports x 2, software selectable (DB9 male) x 2USB 3.0: USB 3.0 hosts x 2, type-A connectorsUSB 2.0: USB 2.0 hosts x 4, type-A connectorsDigital Input: DIs x 4Digital Output: DOs x 4TPM: TPM v2.0Video Output: HDMI 2.0b x 1, (type-A connector)VGA x 1, 15-pin D-sub connector (female)Buttons: Reset button Power buttonEthernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceBaudrate: 50 bps to 115.2 kbpsConnector: DB9 maleData Bits: 5, 6, 7, 8Parity: None, Even, Odd, Space, MarkStop Bits: 1, 1.5, 2Flow Control: RTS/CTS, XON/XOFFSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDDigital InputsConnector: Spring-type Euroblock terminalSensor Type: Dry contactDry Contact: Logic 0: Short to GND Logic 1: OpenDigital OutputsConnector: Spring-type Euroblock terminalI/O Type: SinkCurrent Rating: 200 mA per channelVoltage: 0 to 24 VDCLED IndicatorsSystem: Power x 1 Storage x 1LAN: 2 per port (10/100/1000 Mbps)Power ParametersInput Voltage: 12/24 VDC

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/bxp-c100-series-datasheet-v1.1.pdf)
