# CA-132I

Serial communication device, Serial: RS-422, RS-485, Temp: 0 to 55°C (32 to 131°F), Power: 5 VDC

**Dostupnost:** In stock (2 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181220021120 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

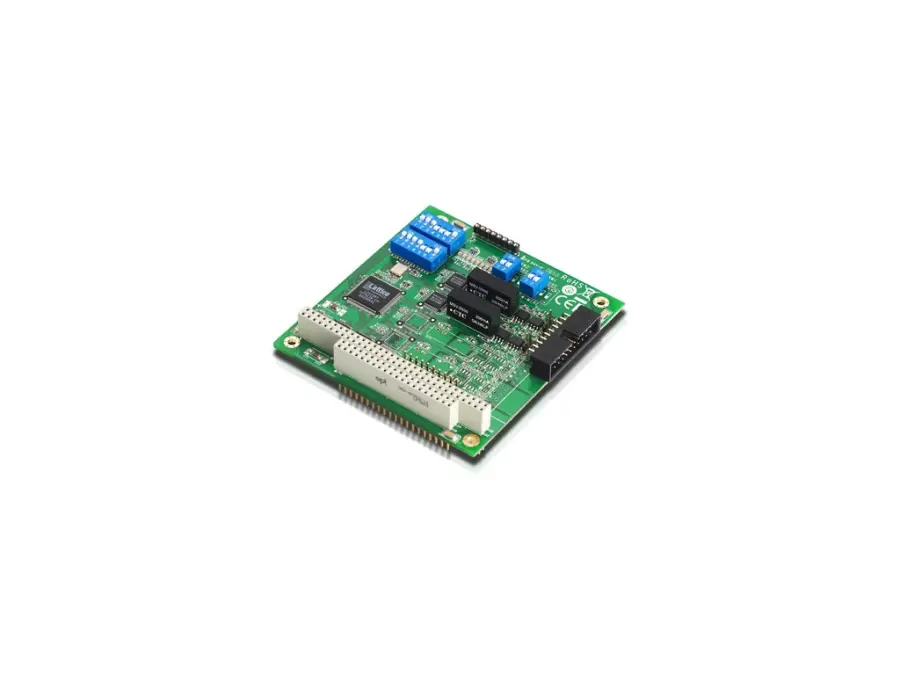

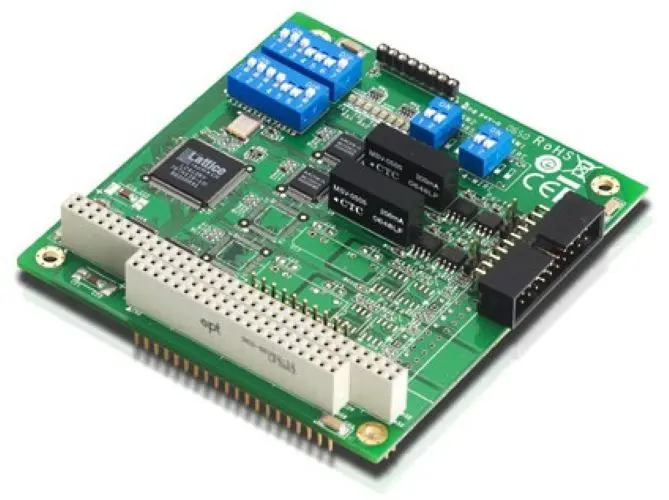

Serial communication device – PC/104 bus, 2-port RS-422/485 module with 2 kV optical isolationSerial InterfaceComm. Controller: 16C550C or compatible x 2Bus: PC/104 busConnector: 20-pin box headerDIP Switches: I/O base address, Interrupt vectorIRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)FIFO: 64 bytesMax. No. of Boards per PC: 8No. of Ports: 2Serial Standards: RS-422, RS-485Baudrate: 50 bps to 921.6 kbpsData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: None, XON/XOFFIsolation: 2 kVSerial SignalsRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDSerial Software FeaturesWindows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP EmbeddedLinux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.xUNIX Drivers: FreeBSD 4.x, QNX 4, SCO UNIX, OpenServerPower ParametersInput Current: 190 mA @ 5 VDCInput Voltage: 5 VDCPhysical CharacteristicsDimensions: 90 x 96 mm (3.54 x 3.78 in)LED InterfaceLED Indicators: Built-in Tx, Rx LEDs for each portEnvironmental LimitsOperating Temperature: 0 to 55°C (32 to 131°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/24EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMFEnvironmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 IEC 60068-2-14Vibration: IEC 60068-2-6DeclarationGreen Product: RoHS, CRoHS, WEEEMTBFTime: 536,288 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Manual CA_Series_PC104_Users_Manual_v5_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/CA_Series_PC104_Users_Manual_v5_ELVAC15.pdf)
* [Katalog CA-132_132I_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/CA-132_132I_Series_ELVAC15.pdf)
