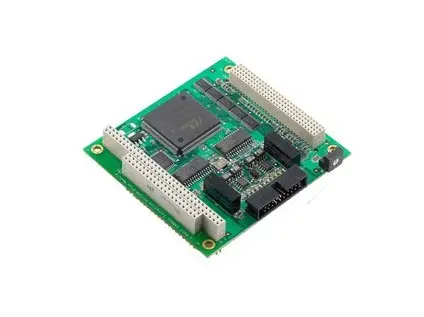

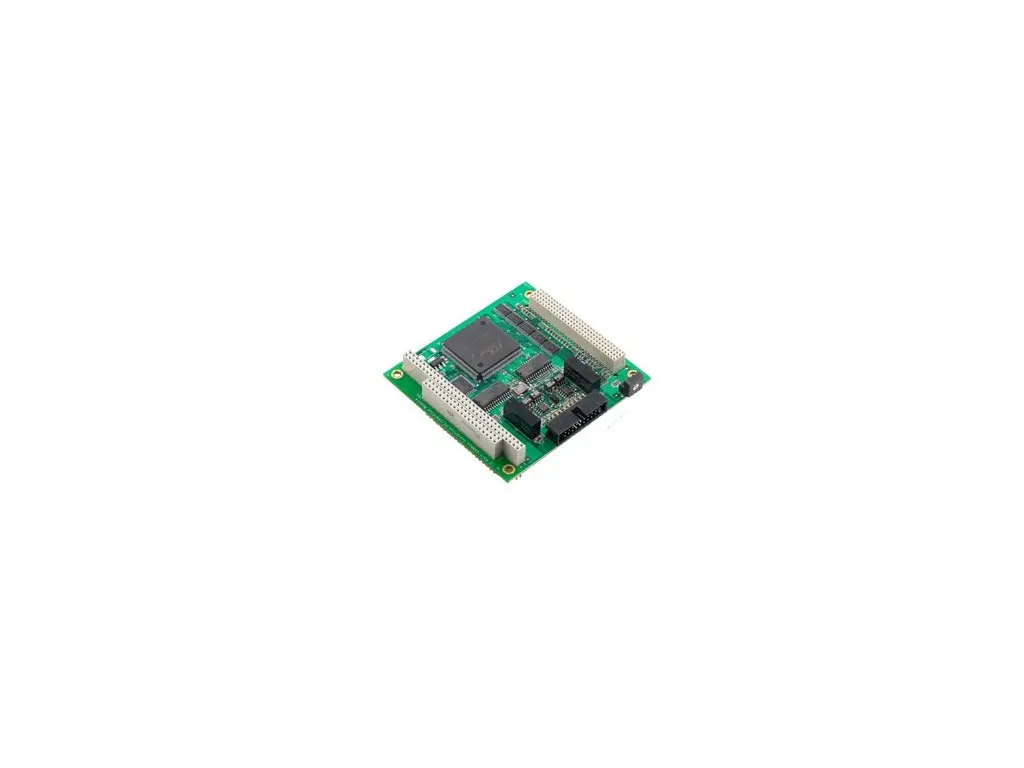

CB-602I-T w/o Cable

Industrial edge connectivity device – 2-port CAN bus PC/104-Plus module, with isolation, -40 to 85°C operating temperature

Serial Interface

• Isolation: 2 kV
• Max. No. of Boards per PC: 8

CAN Interface

• Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined
• Connector: 20-pin box header
• No. of Ports: 2

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class B
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 248,563 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
