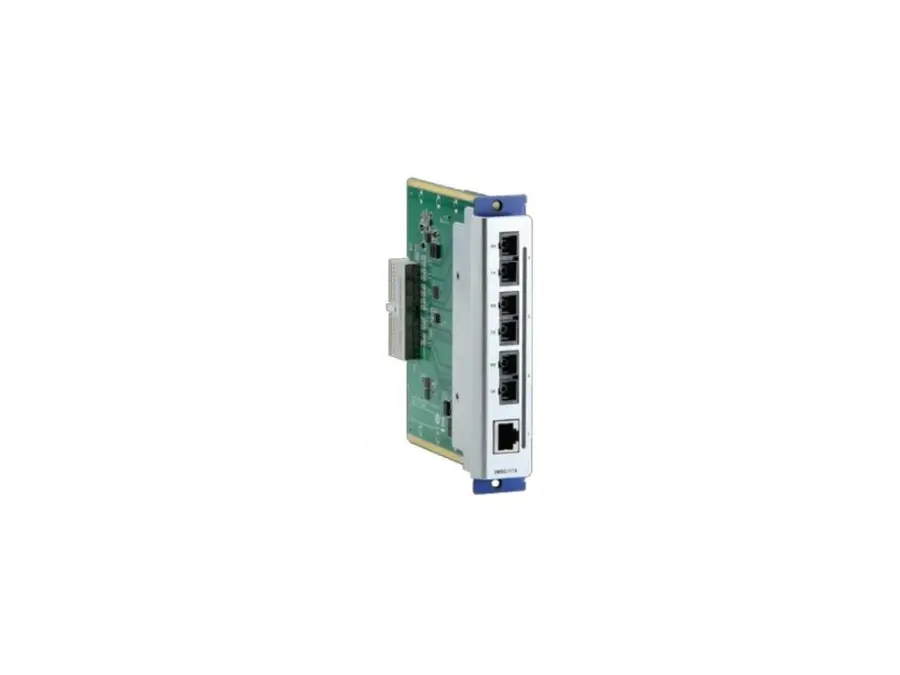

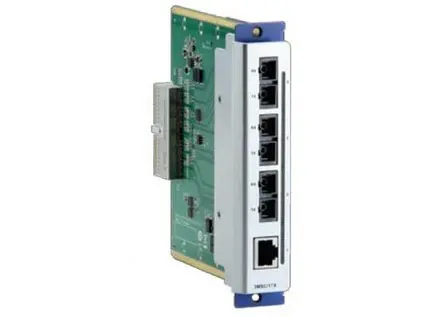

# CM-600-3SSC/1TX

Industrial device, Ports: 1 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection, Temp: -40 to 75°C (-40 to 167°F)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180404113556 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial networking device – Fast Ethernet interface module with 1 10/100BaseT(X) port, RJ45 connector, and 3 100BaseFX single-mode ports, SC connectors, -40 to 75°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 1 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection100BaseFX Ports (single-mode SC connector): 3Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Power ParametersPower Consumption: 2 W (max.)Physical CharacteristicsIP Rating: IP30Dimensions: 29.7 x 144.4 x 144.8 mm (1.17 x 5.69 x 5.7 in)Weight: 230 g (0.51 lb)Environmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)MTBFTime: 740,661 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog CM-600_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/CM-600_Series_ELVAC15.pdf)
