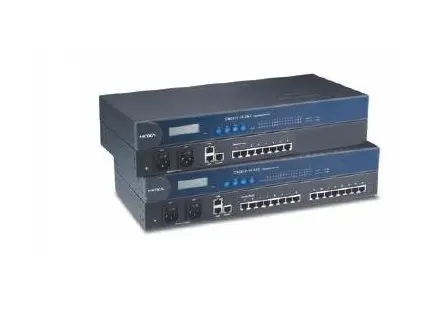

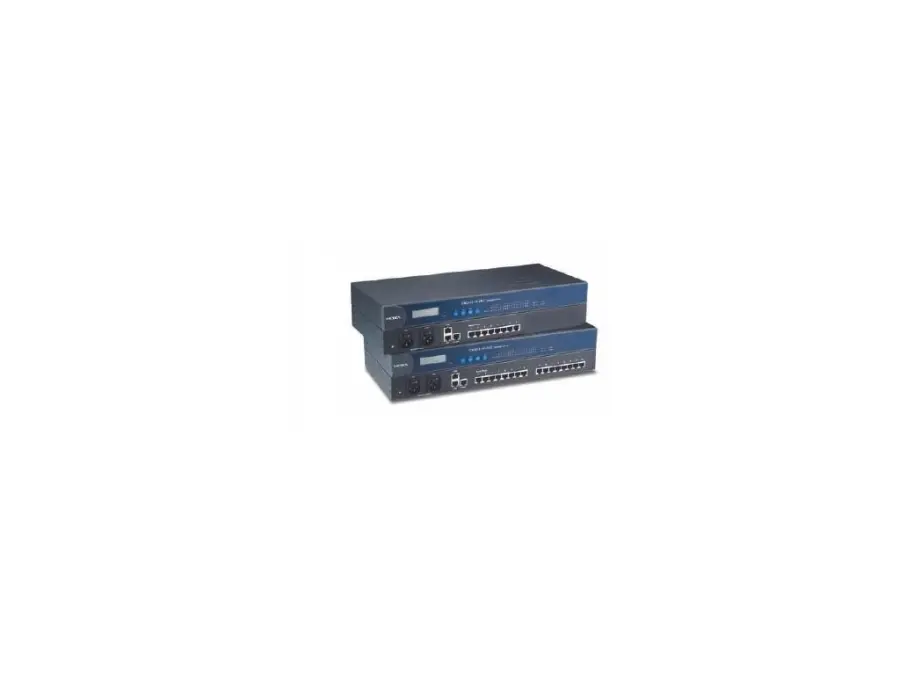

CN2650-16-2AC-T

CN2650-16-2AC-T is a industrial terminal server in the CN2600 Series. Dual-LAN, dual-AC-power terminal server with 16 RS-232/422/485 ports, -40 to 75°C operating temperature

Specifications:

• 10/100BaseT(X) Ports (RJ45 connector): 2
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
• Connector: 8-pin RJ45
• Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
• Details: See www.moxa.com/warranty
• Dimensions (with ears): 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
• Dimensions (without ears): 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)
• No. of Ports: 16
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• Serial Standards: RS-232 RS-422 RS-485
• Terminator for RS-485: 120 ohms
• Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
• Baudrate: 50 bps to 921.6 kbps
• Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
• Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
• Encryption: HTTPS AES-128 AES-256 HMAC RSA-1024 SHA-1
• International Approval: KC
• MIB: MIB-II
• Security: HTTPS/SSL RADIUS SSH PAP CHAP
• Security Protocols: SNMPv3 SSHv2
• Unicast Routing: RIPV1/V2 Static Route
• Input Current: 130 mA @ 110 VAC
• Input Voltage: 100 to 240 VAC (50/60 Hz)
• Magnetic Isolation Protection: 1.5 kV (built-in)
• No. of Power Inputs: 2
• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Vibration: IEC 60068-2-6
• Housing: Metal
• Installation: 19-inch rack mounting
• Weight: 2,640 g (5.82 lb)
• Standards: Telcordia (Bellcore) Standard TR/SR
• Android API: Android 3.1.x and later
• Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
• Management: ARP BOOTP DDNS DHCP Client DNS HTTP IPv4 SMTP SNMPv1/v2c/v3 TCP/IP Telnet UDP ICMP SLIP
• Alert Tools: Built-in buzzer and RTC (real-time clock)
• Authentication: Local database (password only) RADIUS
• Automatic Reboot Trigger: Built-in WDT
• Configuration Options: Serial Console Telnet Console Windows Utility Device Search Utility (DSU) Web Console (HTTP/HTTPS)
• Data Bits: 5, 6, 7, 8
• Flow Control: None RTS/CTS DTR/DSR XON/XOFF
• Freefall: IEC 60068-2-32
• Green Product: RoHS, CRoHS, WEEE
• Operation Modes: Real COM mode TCP Server mode TCP Client mode UDP mode RFC2217 mode Terminal mode Reverse Telnet mode PPP mode DRDAS mode Redundant COM mode Disabled
• Parity: None Even Odd Space Mark
• Safety: UL 60950-1
• Stop Bits: 1, 1.5, 2
• Time: 115,887 hrs
• Warranty Period: 5 years
