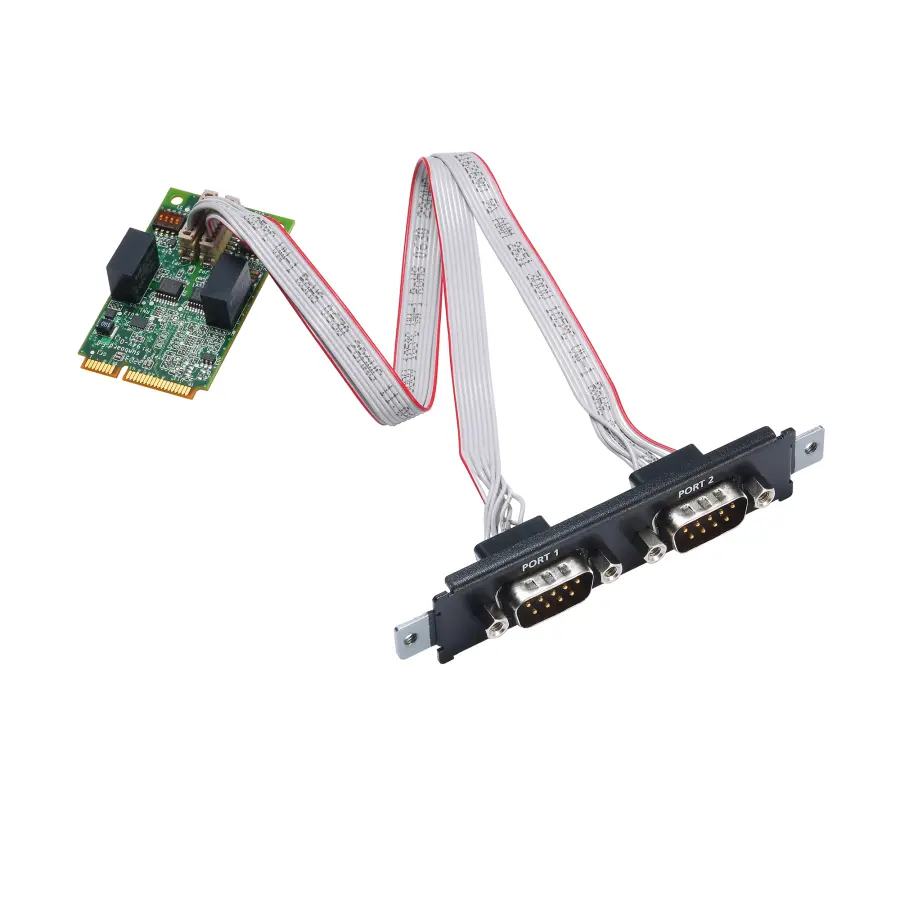

CP-102N-I-T

Serial communication device – 2-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation, -40 to 85°C operating temperature

Serial Interface

• Comm. Controller: 16C550C compatible
• Bus: Mini PCI Express
• Connector: 2 x DB9 male DB9 male
• FIFO: 128 bytes
• No. of Ports: 2
• Serial Standards: RS-232
• Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: None, RTS/CTS, XON/XOFF
• Isolation: 2.5 kV (I models)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features

• Windows Drivers: Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022
• Linux Drivers: Linux kernel 4.x, Linux kernel 5.x

Power Parameters

• Input Current: 458 mA @ 3.3 VDC

Physical Characteristics

• Dimensions: 30 x 50.95 mm (1.18 x 2 in)

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 3,512,504 hrs
• Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
