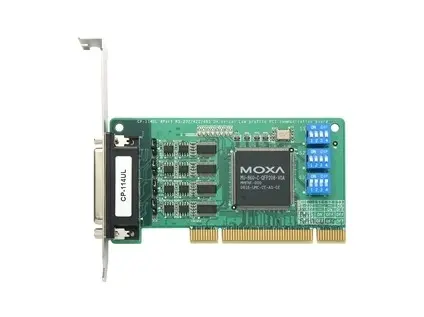

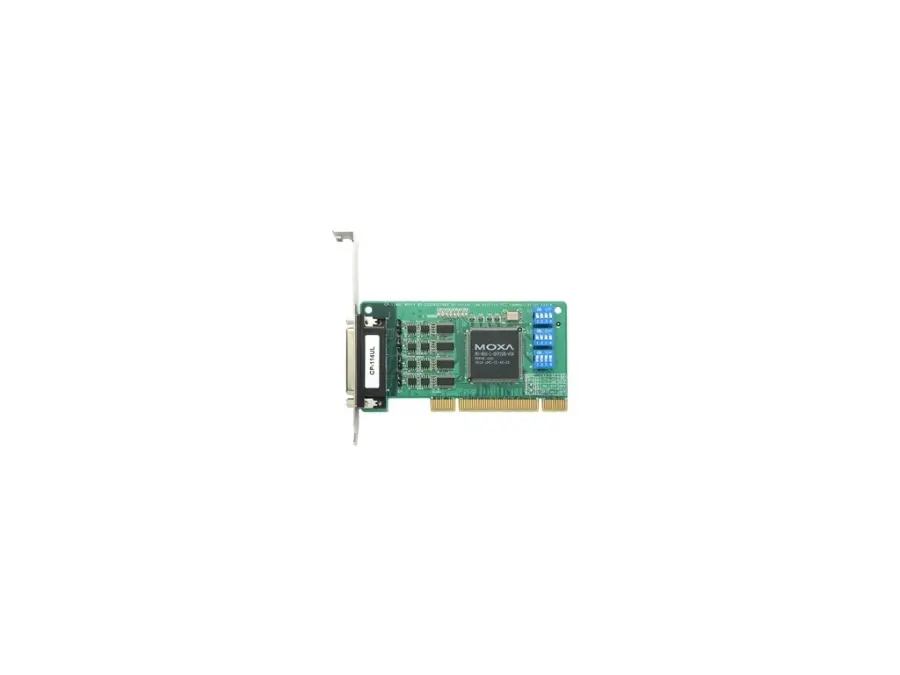

CP-114UL-T

CP-114UL-T is a industrial computer in the CP-114UL Series. 4-port RS-232/422/485 low-profile Universal PCI serial board, -40 to 85°C operating temperature

Specifications:

• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Connector: DB44 female
• Details: See www.moxa.com/warranty
• Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
• LED Indicators: Built-in Tx, Rx LEDs for each port
• No. of Ports: 4
• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• Serial Standards: RS-232, RS-422, RS-485
• Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Baudrate: 50 bps to 921.6 kbps
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Input Current: 320 mA @ 5 VDC
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class B
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Standards: Telcordia SR332
• Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
• UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
• Bus: 32-bit Universal PCI
• Comm. Controller: MU860 (16C550C compatible)
• Data Bits: 5, 6, 7, 8
• FIFO: 128 bytes
• Flow Control: None, RTS/CTS, XON/XOFF
• Green Product: RoHS, CRoHS, WEEE
• Max. No. of Boards per PC: 8
• Parity: None, Even, Odd, Space, Mark
• Stop Bits: 1, 1.5, 2
• Time: 114,223 hrs
• Warranty Period: 5 years
