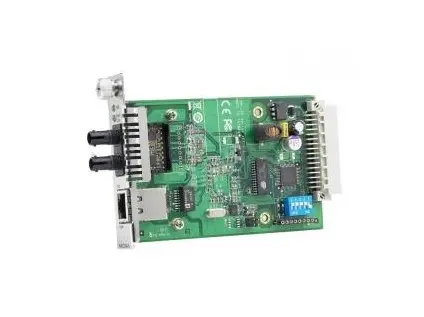

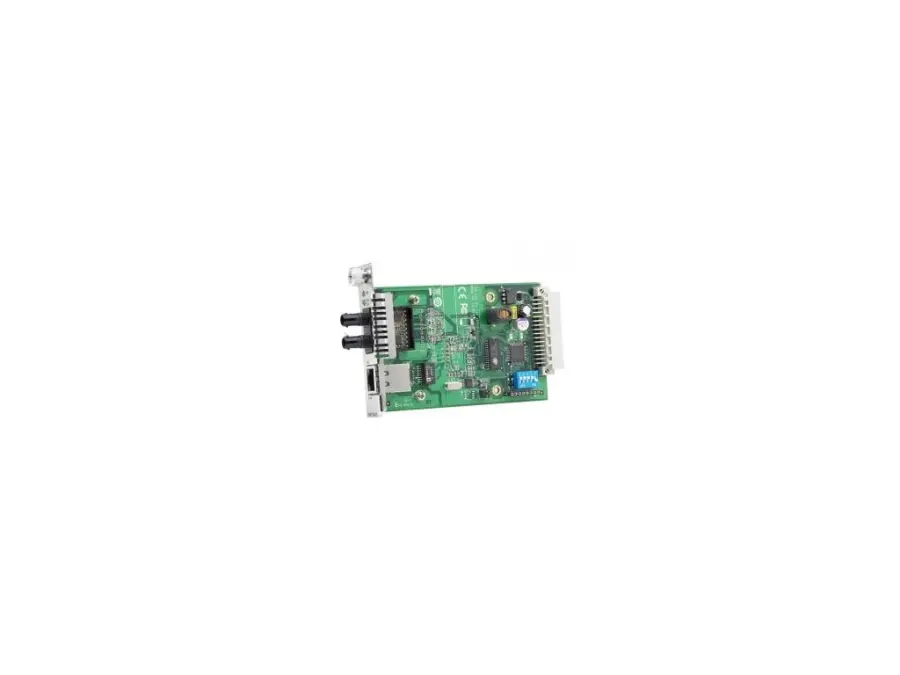

CSM-200-1213

CSM-200-1213 is a industrial Ethernet-to-fiber media converter in the CSM-200 Series. 10/100BaseT(X) to 100BaseFX slide-in module media converter, multi-mode ST connector

Specifications:

• 10/100BaseT(X) Ports (RJ45 connector): 1
• 100BaseFX Ports (multi-mode ST connector): Multi-mode ST connector
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Details: See www.moxa.com/warranty
• Dimensions: 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
• Optical Fiber: | 100BaseFX Multi-Mode | Single-Mode Fiber Cable Type | OM1 | 50/125 µm | G.652 800 MHz x km Typical Distance | 4 km | 5 km | 40 km Wavelength | Typical (nm) | 1300 | 1310 TX Range (nm) | 1260 to 1360 | 1280 to 1340 RX Range (nm) | 1100 to 1600 | 1100 to 1600 Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 RX Range (dBm) | -3 to -32 | -3 to -34 Link Budget (dB) | 12 | 29 Dispersion Penalty (dB) | 3 | 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Input Current: 180 mA @ 12 VDC
• Input Voltage: 12 VDC
• Magnetic Isolation Protection: 1.5 kV (built-in)
• Overload Current Protection: Supported
• Power Consumption: 180 mA @ 12 VDC
• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC) IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Vibration: IEC 60068-2-6
• Weight: Product only: 115 g (0.25 lb)
• Standards: IEEE 802.3u for 100BaseT(X) and 100BaseFX
• Safety: EN 60950-1, UL 60950-1
• Time: 1,454,560 hrs
• Warranty Period: 5 years
