CSM-400-1225

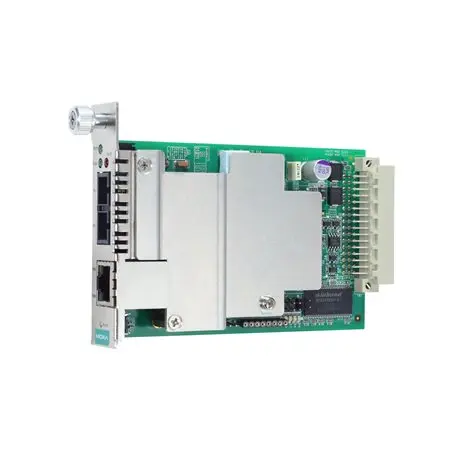

Industrial networking device – 10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-B single-mode SC connector, -20 to 55°C operating temperature

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1
• 100BaseFX Ports, WDM-B Single-Mode SC Connector: 1
• Optical Fiber: Read more 100BaseFX 100 BaseFX WDM-A 100 BaseFX WDM-B Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km 20 km 20 km Wavelength Typical (nm) 1300 1310 1310/1550 1550/1310 TX Range (nm) 1260 to 1360 1280 to 1340 1280 to 1340 1480 to 1600 RX Range (nm) 1100 to 1600 1100 to 1600 1480 to 1600 1280 to 1340 Optical Power TX Range (dBm) -10 to -20 0 to -5 -5 to 15 -5 to 15 RX Range (dBm) -3 to -32 -3 to -34 -3 to -32 -3 to -32 Link Budget (dB) 12 29 17 17 Dispersion Penalty (dB) 3 1 1 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
• Magnetic Isolation Protection: 1.5 kV (built-in)
• Standards: IEEE 802.3u for 100BaseT(X) and 100BaseFX

Security Functions

• Authentication: Local database (password only)
• Encryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256
• Security Protocols: SSHv2 HTTPS (TLS 1.2)

Power Parameters

• Input Current: 220 mA @ 12 VDC
• Input Voltage: 12 VDC
• Overload Current Protection: Supported
• Power Consumption: 220 mA @ 12 VDC

Physical Characteristics

• Dimensions: 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
• Weight: Product only: 125 g (0.28 lb)

Environmental Limits

• Operating Temperature: -20 to 55°C (-4 to 131°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
• Safety: EN 62368-1 UL 62368-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 1,454,560 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
