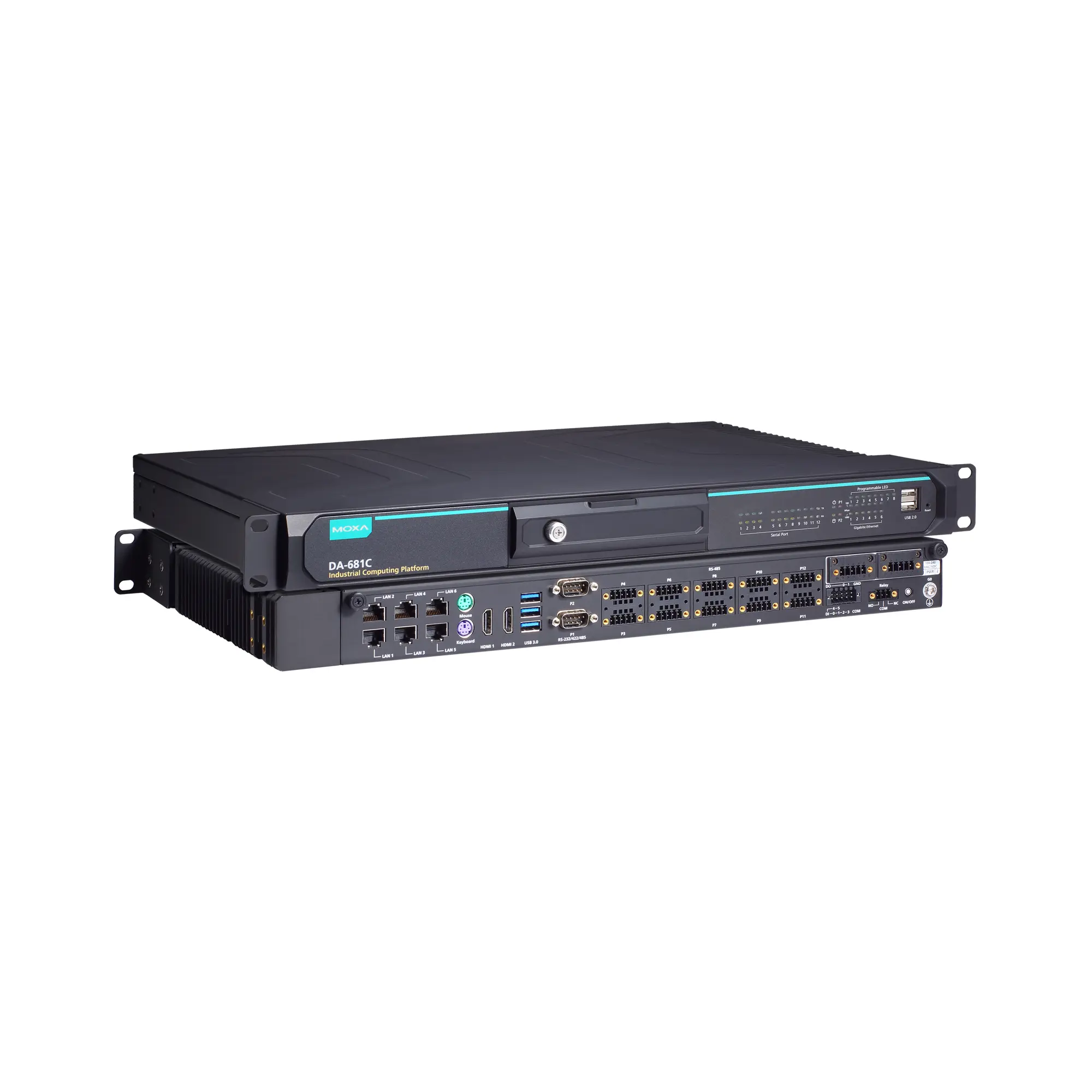

# DA-681C-KL3-HH-T

Industrial computer, CPU: Intel® Core™ i3-7100U processor (3M cache, up to 2.40 GHz), RAM: 32 GB max. capacity (SODIMM x 2, each supporting 2400 MHz, Storage: 2.5-inch HDD/SSD slots x 1 mSATA slot

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101508123930 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Intel® 7th Gen Core™ i3-7100U processor, 2 HDMI ports, 2 PS/2 ports, 6 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 10 RS-485 serial ports, 6 DIs, 2 DOs, 1 mSATA slot, 1 SSD slot, dual power, -40 to 70°C operating temperatureComputerCPU: Intel® Core™ i3-7100U processor (3M cache, up to 2.40 GHz)System Memory Slot: SODIMM DDR4 slots x 2DRAM: 32 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 16 GB maximum per module)Storage Slot: 2.5-inch HDD/SSD slots x 1 mSATA slots x 1Graphics Controller: Intel® HD Graphics 630Supported OS: Windows 10 IoT Enterprise LTSC 2019 Value (64-bit) Linux Debian 9 Linux SDKs supported:Debian 12Ubuntu 22.04 (LTS & HWE)RedHat 9CentOS 7.9Computer InterfaceEthernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector) RS-485 (2-wire) ports x 10 (terminal-block connector)USB 2.0: USB 2.0 hosts x 3, type-A connectors 2 ports on the front panel, 1 port inside the computerUSB 3.0: USB 3.0 hosts x 3, type-A connectors 3 ports on the rear panelVideo Output: HDMI x 2, HDMI connector (type A)Secure Boot: UEFITPM: TPM v2.0Digital InputsConnector: Screw-fastened Euroblock terminalI/O Mode: DIIsolation: 3k VDCSensor Type: Dry contact Wet contact (NPN)Dry Contact: Logic 0: Close to GND Logic 1: OpenWet Contact (COM to DI): Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDCDigital OutputsConnector: Screw-fastened Euroblock terminalCurrent Rating: 200 mA per channelI/O Type: SinkVoltage: 0 to 30 VDCIsolation: 3k VDCSerial InterfaceBaudrate: 50 bps to 115.2 kbpsConnector: Terminal blockESD: 8 kV (level 4)Isolation: 2 kVSerial Standards: RS-232/422/485Surge: 2 kVSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDLED IndicatorsSystem: Programmable x 8 Storage x 1 Power x 1LAN: 2 per port (10/100/1000 Mbps)Serial: 2 per port (Tx, Rx)Power ParametersInput Current: 100 to 240 VAC, 50/60 Hz, 1.6 A (max) 100 to 240 VDC, 0.8 A (max)Power Button: Reset button (front panel) ON/OFF (rear panel)Physical CharacteristicsHousing: MetalDimensions (without ears): 440 x 316 x 44 mm (17.32 x 12.44 x 1.73 in)Weight: 9,000 g (21.82 lb)Installation: 19-inch rack mountingEnvironmental LimitsOperating Temperature: -40 to 70°C (-40 to 158°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35<
