DRP-A100-E2-2L4C-T

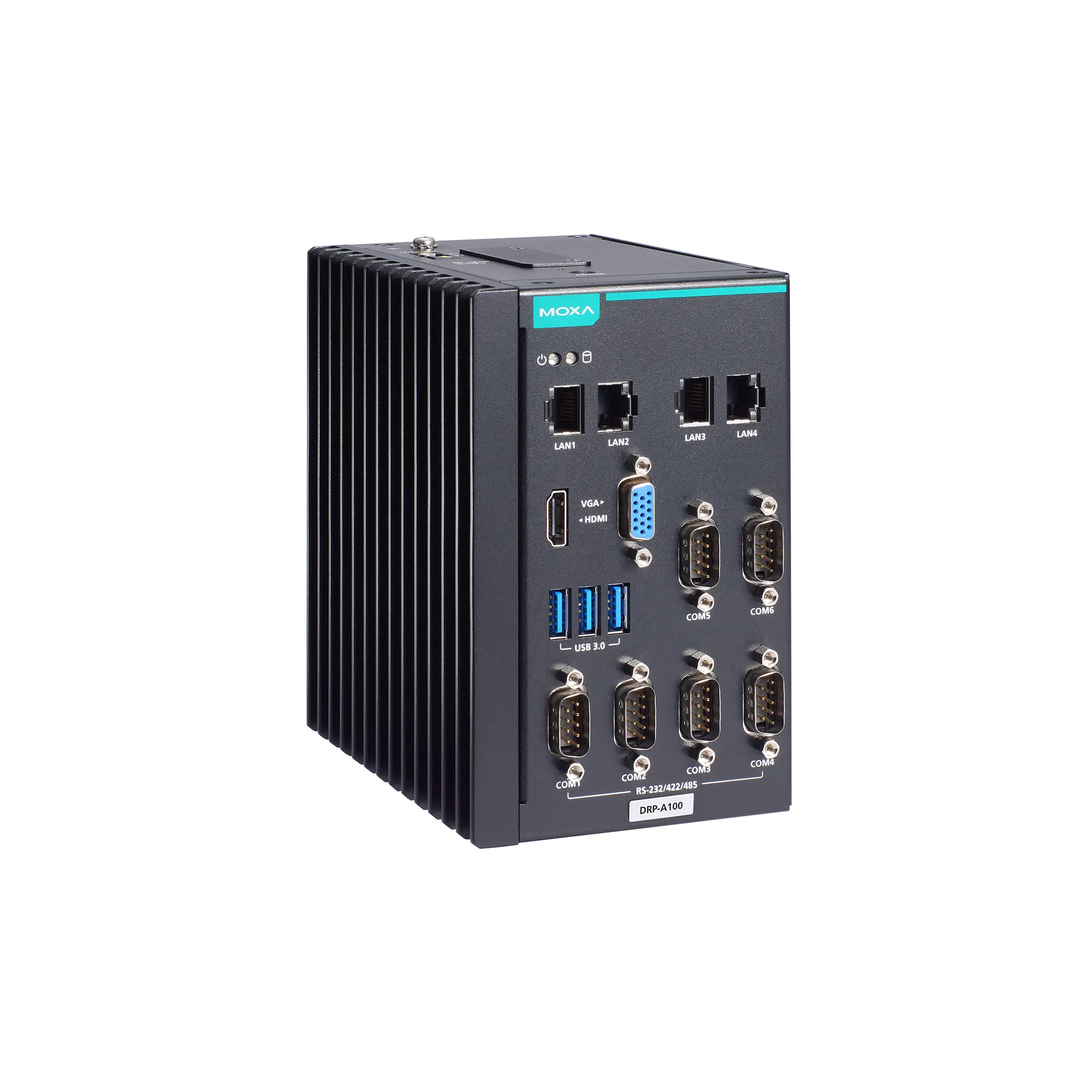

DRP-A100-E2-2L4C-T – industrial DIN rail computer (fanless)

• CPU: Intel Atom® x6211E (E2)
• Interfaces: LAN ×4 (10/100/1000 Mb/s, RJ45), serial RS‑232/422/485 ×6 (software selectable, DB9)
• USB: 3× USB 3.0 (Type‑A) | Video: VGA + HDMI 2.0b
• Storage: CFast slot (SATA III) + SD 3.0 slot (SDHC/SDXC)
• Security: TPM 2.0 | Watchdog | RTC with battery
• Power supply: 12/24 VDC (Euroblock terminal block), typical power consumption 50–90 W depending on the series
• Operating temperature: −30…60 °C | Enclosure: metal, IP20 | Mounting: DIN rail
• Supported OS: Windows 11 Pro / Windows 11 IoT LTSC 2024 / Windows 10 IoT LTSC 2021; Linux (Debian 11/12, Ubuntu 22.04 LTS, RHEL 9)
• Certification: CE/FCC, EN 62368-1; industrial/HL: ATEX, IECEx, Class I Div.2; marine: DNV/IEC 60945 (see datasheet)

Image and description are for informational purposes. The actual product and its specifications may vary depending on the current version. For complete information, please download the datasheet or contact us.
