# DRP-A100-E2-6C-T

Industrial computer, CPU: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30, RAM: SODIMM DDR4 slots x 1, up to 32 GB max., Storage: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101521123060 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

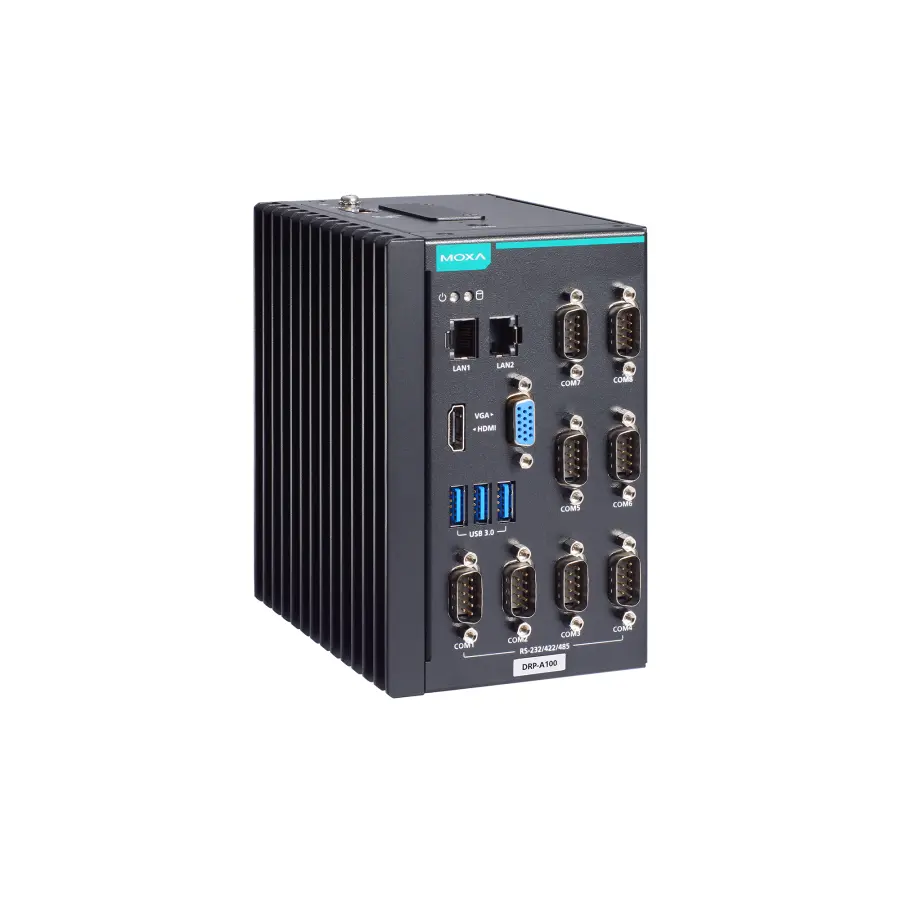

Industrial computer – DIN-rail computer with Intel Atom® x6211E processor, 2 LAN ports, 8 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 60°C operating temperatureComputerCPU: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.System Memory Pre-installed: 8 GB DDR4Storage Slot: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)Supported OS: Windows images and drivers supported:- Windows 11 Professional 64-bit - Windows 11 IoT Enterprise LTSC 2024 64-bit- Windows 10 IoT Enterprise LTSC 2021 64-bitLinux drivers supported:- Debian 12 (kernel 6.1)- Debian 11 (kernel 5.10)- Ubuntu 22.04 LTS (kernel 5.15)- RHEL 9 (kernel 5.14)Graphics Controller: Intel® UHD GraphicsComputer InterfaceEthernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2Serial Ports: RS-232/422/485 ports x 8 (software-selectable, DB9 male connector)USB 3.0: USB 3.0 hosts x 3, type-A connectorsVideo Output: HDMI 2.0b x 1, (type A connector)VGA x 1, 15-pin D-sub connector (female)Buttons: Reset button Power buttonTPM: TPM v2.0Ethernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceBaudrate: 50 bps to 115.2 kbpsConnector: DB9 maleData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: RTS/CTS, XON/XOFFSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDLED IndicatorsSystem: Power x 1 Storage x 1LAN: 2 per port (10/100/1000 Mbps)Power ParametersInput Voltage: 12/24 VDCPower Consumption: 50 WPower Connector: Screw-fastened Euroblock terminalPhysical CharacteristicsHousing: MetalIP Rating: IP20Dimensions: 94 x 130 x 150 mm (3.7 x 5.12 x 5.91 in)Weight: 1,612 g (3.55 lb)Installation: DIN-rail mountingDeclarationGreen Product: RoHS, CRoHS, WEEEEnvironmental LimitsOperating Temperature: -30 to 60°C (-22 to 140°F)Storage Temperature: -40 to 75°C (-40 to 167°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class A BSMIEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 6 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line-to-ground 1 kV, line-to-line 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V IEC 61000-4-8 PFMF: 1 A/m at 50 HzSafety: UL 62368-1 EN 62368-1 IEC 62368-1 BSMIMaritime: DNV-CG-0339 IEC 60945 IACS E10Hazardous Locations:

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/drp-a100-series-datasheet-v1.0.pdf)
