Description

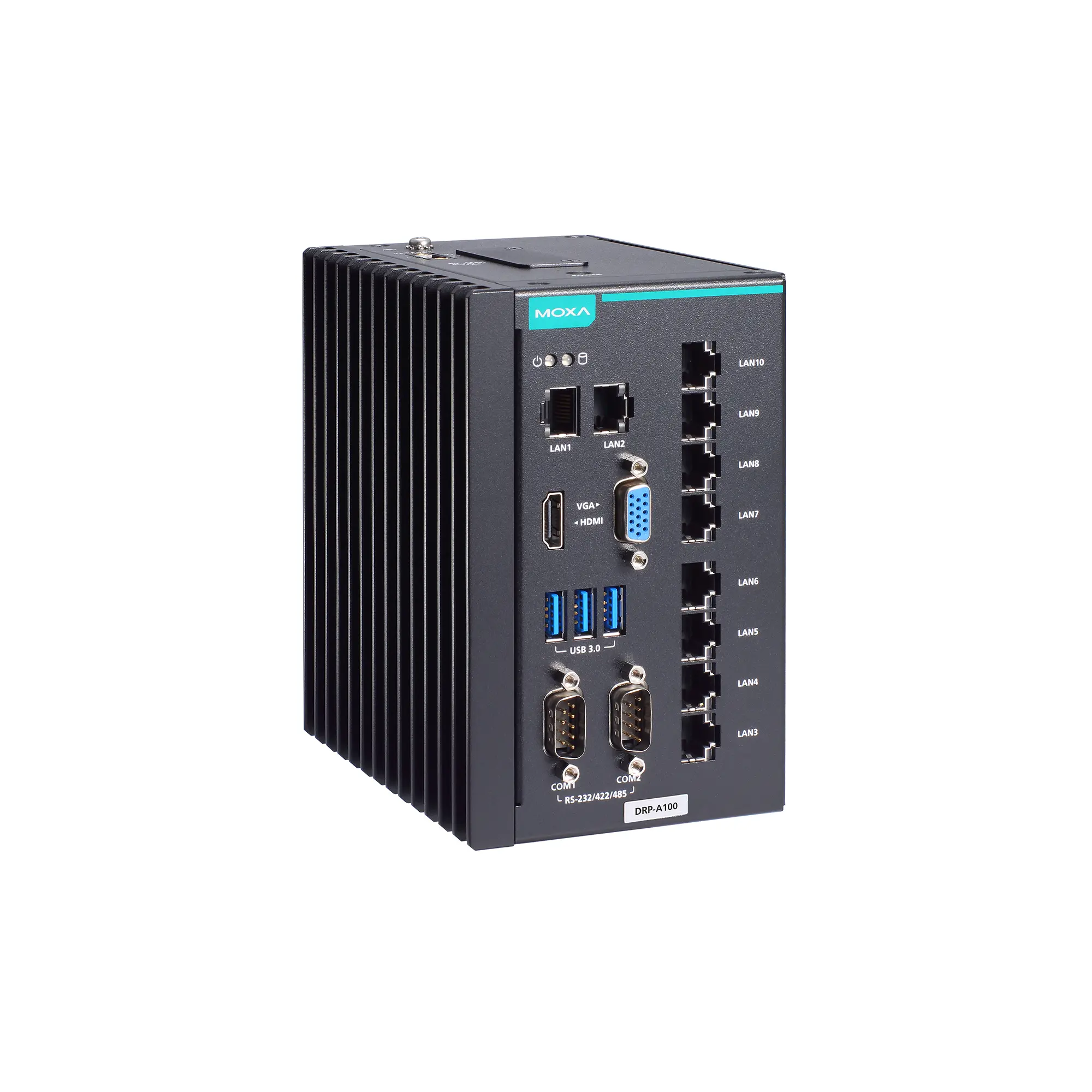

Industrial computer – DIN-rail computer with Intel Atom® x6425E processor, 10 LAN ports, 2 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 60°C operating temperature
Computer
- CPU: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2 GHz)
- System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed: 8 GB DDR4
- Storage Slot: CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)
- Supported OS: Windows images and drivers supported:- Windows 11 Professional 64-bit - Windows 11 IoT Enterprise LTSC 2024 64-bit- Windows 10 IoT Enterprise LTSC 2021 64-bitLinux drivers supported:- Debian 12 (kernel 6.1)- Debian 11 (kernel 5.10)- Ubuntu 22.04 LTS (kernel 5.15)- RHEL 9 (kernel 5.14)
- Graphics Controller: Intel® UHD Graphics
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
- Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- USB 3.0: USB 3.0 hosts x 3, type-A connectors
- Video Output: HDMI 2.0b x 1, (type A connector)VGA x 1, 15-pin D-sub connector (female)
- Buttons: Reset button Power button
- TPM: TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: RTS/CTS, XON/XOFF
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage: 12/24 VDC
- Power Consumption: 50 W
- Power Connector: Screw-fastened Euroblock terminal
Physical Characteristics
- Housing: Metal
- IP Rating: IP20
- Dimensions: 94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)
- Weight: 1,612 g (3.55 lb)
- Installation: DIN-rail mounting
Declaration
- Green Product: RoHS, CRoHS, WEEE
Environmental Limits
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Storage Temperature: -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A BSMI
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 6 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line-to-ground 1 kV, line-to-line 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V IEC 61000-4-8 PFMF: 1 A/m at 50 Hz
- Safety: UL 62368-1 EN 62368-1 IEC 62368-1 BSMI
- Maritime: DNV-CG-0339 IEC 60945 IACS E10
- Hazardous Locations:
