title: "EDR-G9004-VPN-2MGTXSFP-T"
category: "Industrial Communication > Industrial Ethernet > Ethernet Routers"
---

**Kategorie:** Industrial Communication > Industrial Ethernet > Ethernet Routers

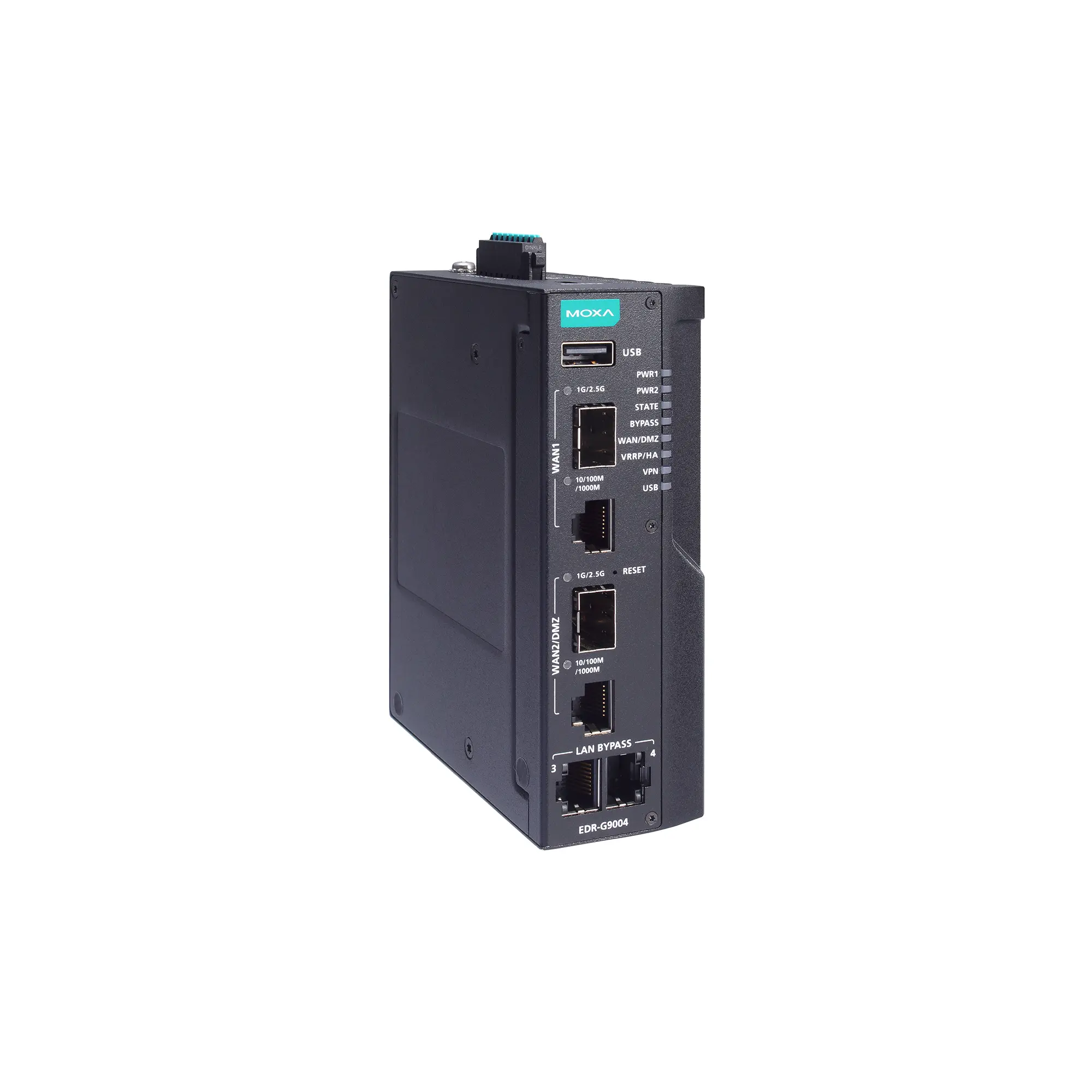

# EDR-G9004-VPN-2MGTXSFP-T

Industrial router, Ports: 2 (with Gen3 LAN Bypass), SFP: 2, Temp: -40 to 75°C (-40 to 167°F) DNV-certified for -25 to 70°C, Power: 12/24/48 VDC, redundant dual inputs (DNV-certified for 24

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180402112940 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial router – Industrial secure router with 2 Gigabit copper ports with Gen3 Bypass, 2 Gigabit copper/SFP combo ports with firewall/NAT/VPN, 12/24/48 VDC input voltage, -40 to 75°C operating temperatureInput/Output InterfaceAlarm Contact Channels: Resistive load: 1 A @ 24 VDCButtons: Reset buttonDigital Input Channels: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector): 2 (with Gen3 LAN Bypass)Combo Ports (10/100/1000BaseT(X) or 1000/2500BaseSFP): 2DMZ: Supports DMZ portStandards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow controlEthernet Software FeaturesManagement: Back Pressure Flow Control DDNS DHCP Server/Client Web Console (HTTP/HTTPS) LLDP SNMPv1/v2c/v3 Telnet TFTP, HTTPS, SSHRouting Throughput: Max. 350K packets per second / 2 Gbps (based on RFC 2544)Routing Table: Max. 4K routing rulesConcurrent Connections: Max. 400K (based on RFC 3511)Connections Per Second: Max. 20K (based on RFC 3511)Routing Redundancy: VRRPSecurity: Secure Boot IPsec L2TP (server) RADIUS TACACS+ Trust access control SCP, SFTP, NTP authentication Syslog AuthenticationTime Management: NTP Server/Client SNTPMulticast Routing: Static RouteUnicast Routing: OSPF RIPV1/V2 Static RouteLED InterfaceLED Indicators: PWR1, PWR2, STATE, BYPASS, WAN/DMZ, VRRP/HA, VPN, USBDoS and DDoS ProtectionTechnology: ARP-Flood FIN Scan ICMP Flood TCP Sessions Without SYN NMAP-ID Scan NMAP-Xmas Scan Null Scan SYN/FIN Scan SYN/RST Scan SYN-Flood Xmas ScanFirewallFilter: DDoS Ethernet protocols ICMP IP address MAC address PortsStateful Inspection: Router firewall Transparent (bridge) firewallDeep Packet Inspection: Modbus TCP Modbus UDP DNP3 IEC 60870-5-104 IEC 61850 MMS EtherNet/IP MELSEC Omron FINS, OPC, UA Siemens S7 Comm. Siemens S7 Comm. Plus Additional protocols will be supported through future firmware updates.Intrusion Prevention System: Requires an additional license.Throughput: Firewall:Max. 350K packets per second / 2 Gbps (based on RFC 2544)IPS:Max. 200K packets per second / 2 Gbps (based on RFC 2544)IPsec VPNAuthentication: MD5 and SHA (SHA-512) RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificateConcurrent VPN Tunnels: Max. 250 IPsec VPN tunnelsEncryption: DES 3DES AES-128 AES-192 AES-256 AES-256-GCMProtocols: IPsec L2TP (server) PPTP (client)Throughput: Conditions: AES-256, SHA-256Max. 100K packets per second / 800 Mbps (based on RFC 2544)NATFeatures: 1-to-1 N-to-1 NAT loopback Port forwardingReal-Time Firewall / VPN Event LogEvent Type: Firewall event VPN eventMedia: Local storage SNMP Trap Syslog serverSerial InterfaceConsole Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)Connector: USB Type-CPower ParametersConnection:
