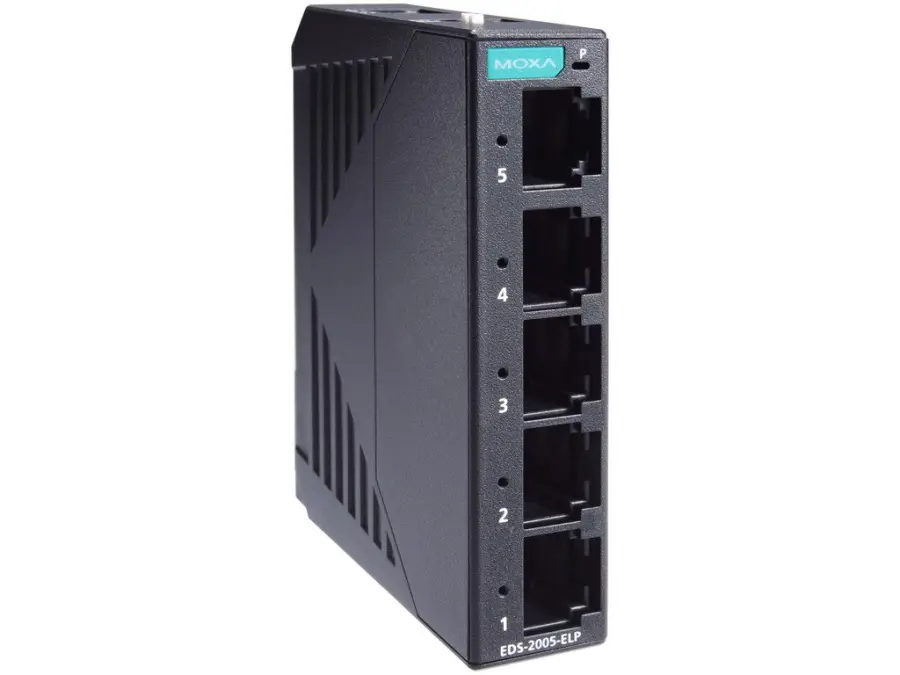

# Moxa EDS-2005-ELP průmyslový ethernetový switch bez managementu

Industrial Unmanaged Ethernet switch, Ports: 5 Full/Half duplex mode Auto MDI/MDI-X connection Auto ne, Temp: -10 to 60°C (14 to 140°F), Power: 12/24/48 VDC

**Dostupnost:** In stock (241 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180412112875 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Unmanaged Ethernet switch – Unmanaged Fast Ethernet switch with 5 10/100BaseT(X) ports, 12/24/48 power input, plastic housing, -10 to 60°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 5 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedStandards: IEEE 802.3 for 10BaseT IEEE 802.1p for Class of Service IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow controlSwitch PropertiesProcessing Type: Store and ForwardMAC Table Size: 2 KPacket Buffer Size: 768 kbitsDIP Switch ConfigurationEthernet Interface: Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)Power ParametersConnection: 1 removable 3-contact terminal block(s)Input Current: 0.039 A @ 24 VDCInput Voltage: 12/24/48 VDCOperating Voltage: 9.6 to 60 VDCOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsDimensions: 19 x 81 x 65 mm (0.74 x 3.19 x 2.56 in)Installation: DIN-rail mounting Wall mounting (with optional kit)Weight: 74 g (0.16 lb)Housing: PlasticEnvironmental LimitsAmbient Relative Humidity: 5 to 95% (non-condensing)Operating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Standards and CertificationsSafety: UL 61010-2-201 EN 62368-1EMC: EN 55032/35 EN 61000-6-2/-6-4EMI: CISPR 22, 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFShock: IEC 60068-2-27Vibration: IEC 60068-2-6Freefall: IEC 60068-2-32MTBFTime: 5,249,061 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog moxa-eds-2005-elp-series-datasheet-v1.2](https://www.elvac.eu/files/shop/moxa/datasheet/moxa-eds-2005-elp-series-datasheet-v1.2.pdf)
