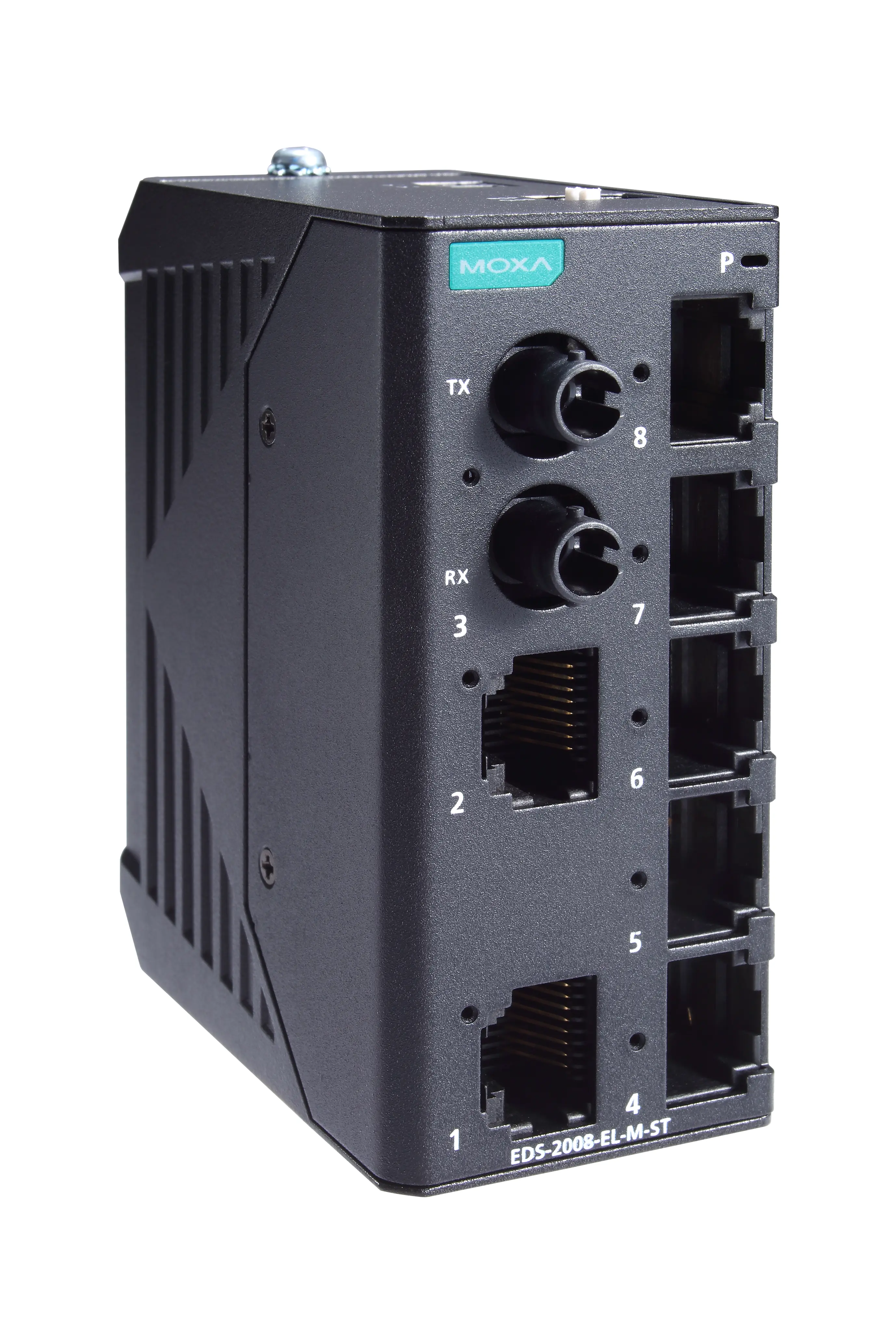

# EDS-2008-EL-M-ST

Industrial Unmanaged Ethernet switch, Ports: EDS-2008-EL: 8EDS-2008-EL-M-ST: 7EDS-2008-EL-M-SC: 7 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180412112625 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Unmanaged Ethernet switch – Unmanaged Fast Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with ST connectors, 12/24/48 power input, metal housing, -10 to 60°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): EDS-2008-EL: 8EDS-2008-EL-M-ST: 7EDS-2008-EL-M-SC: 7 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed100BaseFX Ports (multi-mode SC connector): EDS-2008-EL-M-SC: 1100BaseFX Ports (multi-mode ST connector): EDS-2008-EL-M-ST: 1Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of ServiceOptical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Switch PropertiesProcessing Type: Store and ForwardMAC Table Size: 2 KPacket Buffer Size: 768 kbitsDIP Switch ConfigurationEthernet Interface: Quality of Service (QoS) Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic. , Broadcast Storm Protection (BSP)Power ParametersConnection: 1 removable 2-contact terminal block(s)Input Current: EDS-2008-EL: 0.052A @ 24 VDCEDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.082A @ 24 VDCInput Voltage: 12/24/48 VDCOperating Voltage: 9.6 to 60 VDCOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsInstallation: DIN-rail mounting Wall mounting (with optional kit)Weight: 169 g (0.37 lb)Housing: MetalDimensions: EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector)EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)Environmental LimitsAmbient Relative Humidity: 5 to 95% (non-condensing)Operating Temperature: EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Standards and CertificationsSafety: UL 61010-2-201 EN 62368-1EMC: EN 55032/35 EN 61000-6-2/-6-4EMI: CISPR 22, 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFShock: IEC 60068-2-27Vibration: IEC 60068-2-6Freefall: IEC 60068-2-32MTBFT

## Soubory ke stažení

* [Katalog moxa-eds-2008-el-series-datasheet-v1.3](https://www.elvac.eu/files/shop/moxa/datasheet/moxa-eds-2008-el-series-datasheet-v1.3.pdf)
