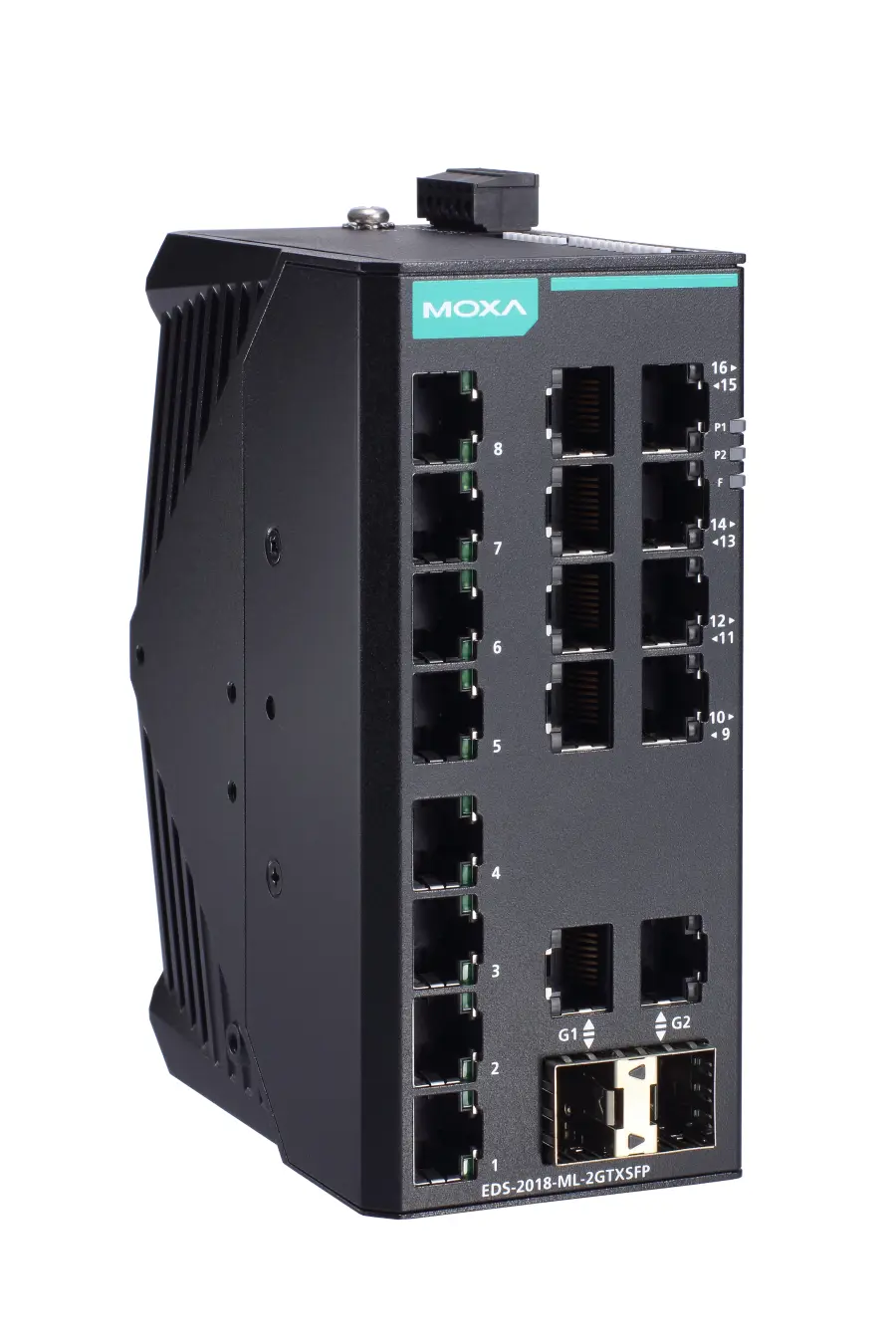

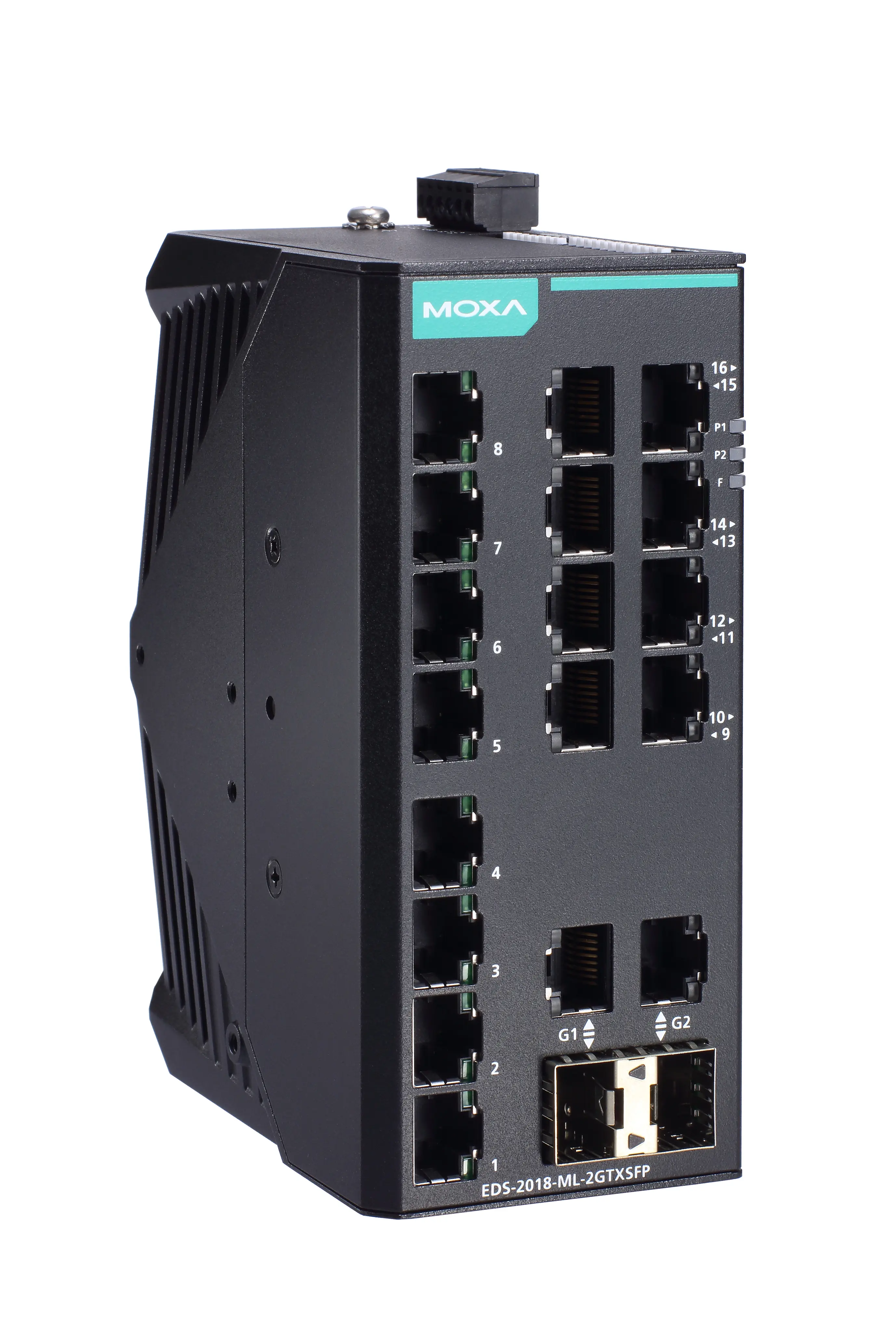

# EDS-2018-ML-2GTXSFP-T

Industrial Unmanaged Ethernet switch, Ports: 16 Auto MDI/MDI-X connection Full/Half duplex mode Auto n, SFP: 2 Auto negotiation speed Auto MDI/MDI-X connection Full/H, Temp: -40 to 75°C (-40 to 167

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180412110820 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Unmanaged Ethernet switch – Unmanaged Gigabit Ethernet switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -40 to 75°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 16 Auto MDI/MDI-X connection Full/Half duplex mode Auto negotiation speedCombo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 2 Auto negotiation speed Auto MDI/MDI-X connection Full/Half duplex modeStandards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.1p for Class of ServiceDIP Switch ConfigurationEthernet Interface: Quality of Service (QoS) Broadcast storm protection Port break alarmInput/Output InterfaceAlarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDCSwitch PropertiesMAC Table Size: 8 KPacket Buffer Size: 4 MbitsProcessing Type: Store and ForwardPower ParametersConnection: 1 removable 6-contact terminal block(s)Input Current: 0.277 A @ 24 VDCInput Voltage: 12/24/48 VDC Redundant dual inputsOperating Voltage: 9.6 to 60 VDCOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)Weight: 683 g (1.51 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: UL 61010-2-201 EN 62368-1(LVD)EMC: EN 55032/35 EN 61000-6-2/-6-4EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFHazardous Locations: Class I Division 2 IECEx ATEXMaritime: DNV, LR, ABS, NKRailway: EN 50121-4Traffic Control: NEMA TS2Vibration: IEC 60068-2-6Shock: IEC 60068-2-27Freefall: IEC 60068-2-32MTBFTime: 1,776,132 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog moxa-eds-2018-ml-series-datasheet-v1.3](https://www.elvac.eu/files/shop/moxa/datasheet/moxa-eds-2018-ml-series-datasheet-v1.3.pdf)
