Description

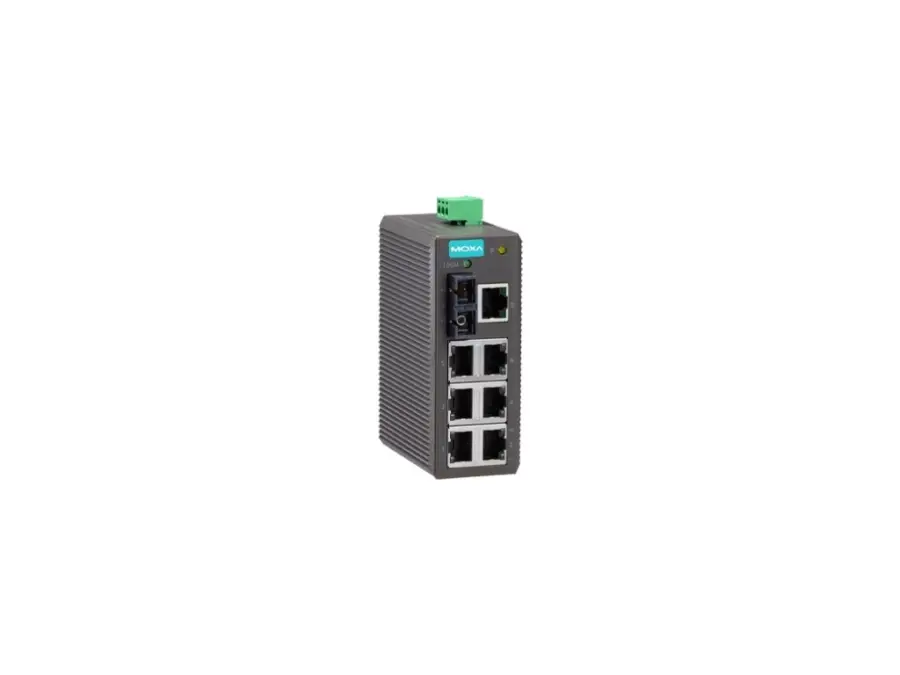

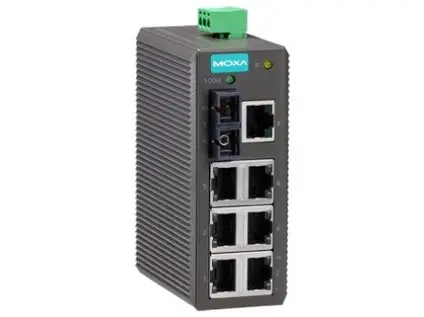

Industrial Managed Ethernet switch – Entry-level unmanaged Ethernet switch with 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connector, plastic housing, -10 to 60°C operating temperature
Ethernet Interface
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
- 10/100BaseT(X) Ports (RJ45 connector): 7
- 100BaseFX Ports (multi-mode SC connector): 1
- Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Switch Properties
- Processing Type: Store and Forward
- MAC Table Size: 2 K
- Packet Buffer Size: 768 kbits
Power Parameters
- Input Voltage: 12/24/48 VDC 24 24 VAC only for models with hardware version 2.1.1 or later VAC
- Operating Voltage: 9.6 to 60 VDC 18 to 30 VAC
- Input Current: 12 to 48 VDC, 0.20 to 0.05 A or 24 VAC, 50-60 Hz, 0.21 A (max.)
- Connector: 1 removable 3-contact terminal block(s)
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 40.03 x 100 x 82.13 mm (1.58 x 3.94 x 3.23 in)
- Weight: 166 g (0.37 lb)
- Installation: DIN-rail mounting
Environmental Limits
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- Safety: UL 508 EN 62368-1
- EMC: EN 55032/35
- EMI: FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
MTBF
- Time: 7,499,231 hrs
- Standards: Telcordia (Bellcore), GB
