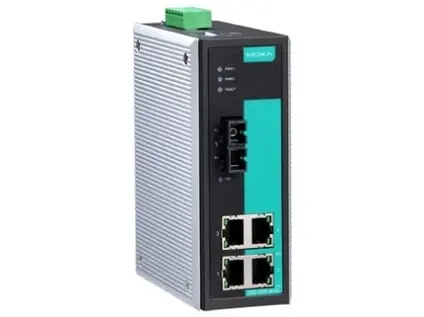

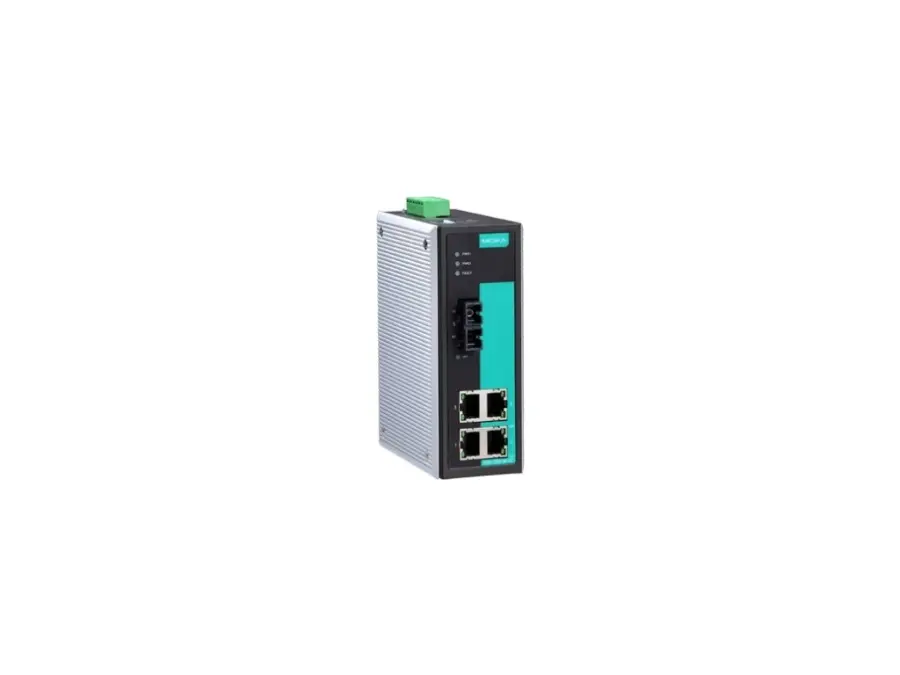

--- title: "EDS-305-S-SC-80" category: "Industrial Communication > Industrial Ethernet > Unmanaged Ethernet Switches" --- **Kategorie:** Industrial Communication > Industrial Ethernet > Unmanaged Ethernet Switches # EDS-305-S-SC-80 Industrial Unmanaged Ethernet switch, Ports: 4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection, Temp: -10 to 60°C (14 to 140°F) **Dostupnost:** Not in stock (0 pcs) ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 180412112240 | | Warranty | 60 | | Warranty for companies | 60 | | Brand | MOXA | ## Podrobný popis Industrial Unmanaged Ethernet switch – Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, 1 100BaseFX single-mode port with SC connector for 80 km transmission, relay output warning, 0 to 60°C operating temperatureInput/Output InterfaceAlarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDCEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection100BaseFX Ports (single-mode SC connector, 80 km): 1Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow controlOptical Fiber: Read more 100BaseFX Multi-Mode Fiber Cable Type OM1 OM2 OM3 OM4 Typical Distance 4 km 4 km 4 km 4 km Wavelength TX Range (nm) 1260 to 1360 RX Range (nm) 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 RX Range (dBm) -3 to -32 Link Budget (dB) 12 Dispersion Penalty (dB) 3 3 3 3 100BaseFX Multi-Mode Single-Mode Single-Mode (40 km) (80 km) Fiber Cable Type 50/125 µm G.652 G.652 800 MHz x km Typical Distance 5 km 40 km 80 km Wavelength TX Range (nm) 1260 to 1360 1280 to 1340 1530 to 1570 RX Range (nm) 1100 to 1600 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 -3 to -34 Link Budget (dB) 12 29 29 Dispersion Penalty (dB) 3 1 1 Note: When using a single-mode fiber transceiver over short distances, we highly recommend installing an attenuator to prevent damaging the transceiver due to excessive optical power.Note: To reach the "typical distance" of a fiber transceiver, the Link Budget (dB) should be greater than the combined Dispersion Penalty (dB) and Total Link Loss (dB).DIP Switch ConfigurationEthernet Interface: Port break alarmSwitch PropertiesMAC Table Size: 2 KPacket Buffer Size: 768 kbitsProcessing Type: Store and ForwardPower ParametersConnection: 1 removable 6-contact terminal block(s)Input Current: 0.2 A (max.)Input Voltage: 12-48 VDC Redundant dual inputsOperating Voltage: 9.6 to 60 VDCReverse Polarity Protection: SupportedOverload Current Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 53 x 135 x 105 mm (2.09 x 5.32 x 4.13 in)Weight: 790 g (1.75 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: UL 61010-201-1 UL 62368-1 EN 62368-1 IEC 62368-1EMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMFHazardous Locations: ATEX Class I Division 2 IECExVibration: IEC 60068-2-6Shock: IEC 60068-2-27Freefall: IEC 60068-2-32Maritime: DNV ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Max. provozní teplota | Max. provozní teplota 60 °C | | Celkový počet LAN portů | Celkový počet LAN portů 5 | | Počet metalických LAN portů | Počet metalických LAN portů 4 | | Počet optických LAN portů | Počet optických LAN portů 1 | | Počet portů max 100 Mb | Počet portů max 100 Mb 5 | | Normy | Normy ATEX Zone 2; DNV / GL; UL 508 / UL 60950-1 | ## Soubory ke stažení * [Manual EDS-305_HIG_9e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/EDS-305_HIG_9e_ELVAC15.pdf) * [Katalog EDS-305_308_309_316_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/EDS-305_308_309_316_Series_ELVAC15.pdf)
