title: "EDS-309-3M-ST"
category: "Industrial Communication > Industrial Ethernet > Unmanaged Ethernet Switches"
---

**Kategorie:** Industrial Communication > Industrial Ethernet > Unmanaged Ethernet Switches

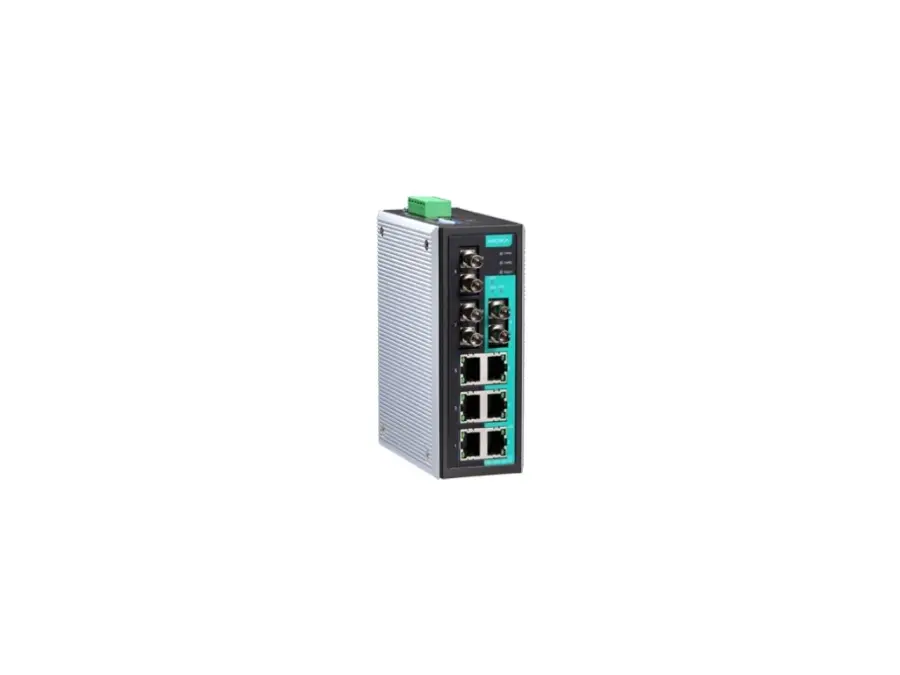

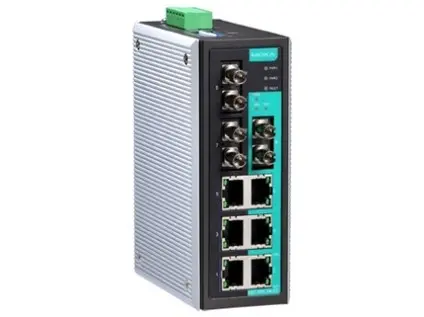

# EDS-309-3M-ST

Industrial Unmanaged Ethernet switch, Ports: 6 Auto negotiation speed Full/Half duplex mode Auto MDI/M, Temp: -10 to 60°C (14 to 140°F), Power: Redundant dual inputs 12/24/48 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180412111115 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Unmanaged Ethernet switch – Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, 3 100BaseFX multi-mode ports with ST connectors, relay output warning, 0 to 60°C operating temperatureInput/Output InterfaceAlarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDCEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection100BaseFX Ports (multi-mode ST connector): 3Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow controlSwitch PropertiesMAC Table Size: 1 KPacket Buffer Size: 512 kbitsProcessing Type: Store and ForwardDIP Switch ConfigurationEthernet Interface: Port break alarmPower ParametersInput Current: 0.26 A @ 24 VDCConnection: 1 removable 6-contact terminal block(s)Operating Voltage: 9.6 to 60 VDCInput Voltage: Redundant dual inputs 12/24/48 VDCReverse Polarity Protection: SupportedOverload Current Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)Weight: 790 g (1.75 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: UL 60950 UL 508 CSA C22.2 No. 60950, EN 62368-1 (LVD)EMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMFHazardous Locations: ATEX Class I Division 2Vibration: IEC 60068-2-6Shock: IEC 60068-2-27Freefall: IEC 60068-2-32Maritime: DNVMTBFTime: 2,388,799 hrsStandards: MIL-HDBK-217FWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Celkový počet LAN portů | Celkový počet LAN portů
9 |
| Počet metalických LAN portů | Počet metalických LAN portů
6 |
| Počet optických LAN portů | Počet optických LAN portů
3 |
| Počet portů max 100 Mb | Počet portů max 100 Mb
9 |
| Normy | Normy
ATEX Zone 2; DNV / GL; UL 508 / UL 60950-1 |

## Soubory ke stažení

* [Katalog EDS-305_308_309_316_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/EDS-305_308_309_316_Series_ELVAC15.pdf)
* [Manual EDS-308_309_HIG_9e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/EDS-308_309_HIG_9e_ELVAC15.pdf)
