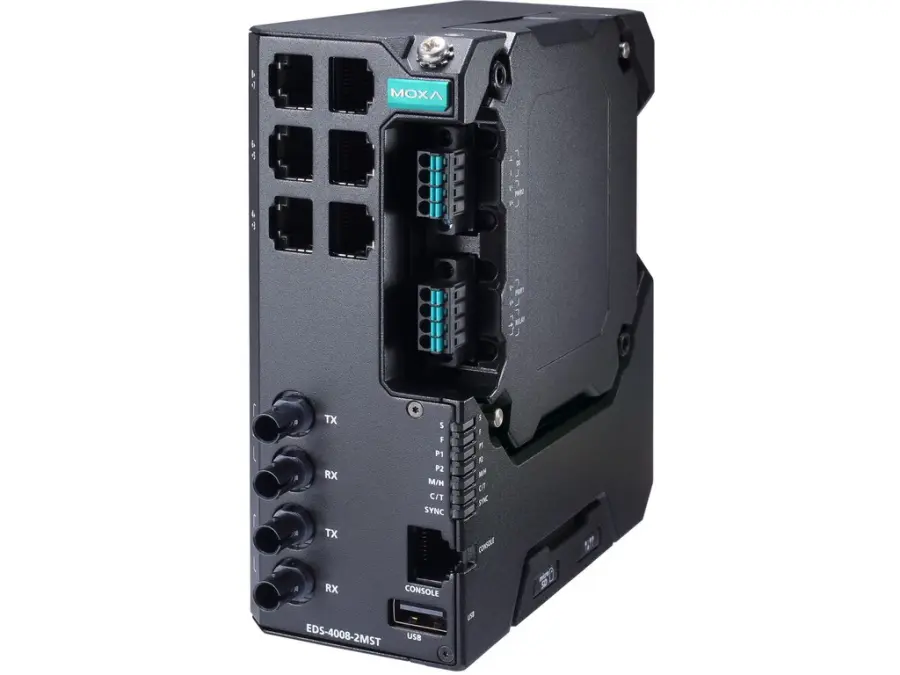

# EDS-4008-2MST-HV

Industrial Managed Ethernet switch, Ports: 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection, Temp: -10 to 60°C (14 to 140°F)

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408110450 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed Ethernet switch – Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, single power supply 110/220 VAC/VDC, -10 to 60°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection100BaseFX Ports (multi-mode ST connector): 2Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authenticationOptical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Ethernet Software FeaturesIndustrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO DeviceManagement: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP, RARP, LLDP Fiber check Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON, TFTP, SFTP, HTTP, HTTPS Telnet Syslog Private MIBFilter: GMRP, GVRP, GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP QuerierRedundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing Link Aggregation MSTP MRPSecurity: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL, SSH, RADIUS, TACACS+ Access control list Login and Password Policy DHCP SnoopingTime Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based)Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017Protocols: IPv4/IPv6 TCP/IP, UDP, ICMP, ARP RARP, TFTP, DNS, NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON SyslogMIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9Switch PropertiesMAC Table Size: 16 KJumbo Frame Size: 9.216 KBMax. No. of VLANs: 256VLAN ID Range: VID 1 to 4094IGMP Groups: 512Priority Queues: 4Packet Buffer Size: 1 MBLED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNCSerial InterfaceConsole Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)USB InterfaceUSB Connector: USB Type A (Reserved)Input/Output InterfaceAlarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDCDigital Input Channels: 1Digital Inputs: +13

## Soubory ke stažení

* [Katalog moxa-eds-4008-series-datasheet-v1.0](https://www.elvac.eu/files/shop/moxa/datasheet/moxa-eds-4008-series-datasheet-v1.0.pdf)
