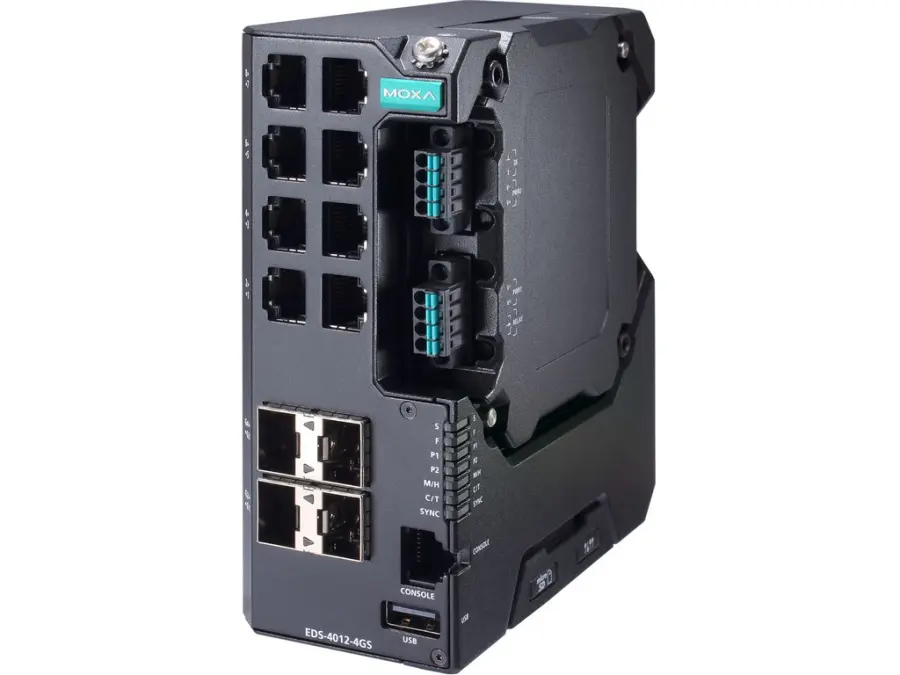

# EDS-4012-4GS-LV-T

Industrial Managed PoE Ethernet switch, Ports: 8 Auto negotiation speed Full/Half duplex mode Auto MDI/M, SFP: 4, PoE: 90 W, Temp: -40 to 75°C (-40 to 167°F), Power: 12/24/48 VDC Redundant dual in

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408110625 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed PoE Ethernet switch – Managed Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power supply, 12/24/48 VDC, -40 to 75°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection100/1000BaseSFP Ports: 4Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authenticationEthernet Software FeaturesIndustrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO DeviceManagement: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP, RARP, LLDP Fiber check Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON, TFTP, SFTP, HTTP, HTTPS Telnet Syslog Private MIBFilter: GMRP, GVRP, GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP QuerierRedundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing Link Aggregation MRP MSTPSecurity: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL, SSH, RADIUS, DHCP Snooping TACACS+ Login and Password Policy Access control listTime Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based)Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017Protocols: IPv4/IPv6 TCP/IP, UDP, ICMP, ARP RARP, TFTP, DNS, NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON SyslogMIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9Switch PropertiesMAC Table Size: 16 KJumbo Frame Size: 9.216 KBMax. No. of VLANs: 256VLAN ID Range: VID 1 to 4094IGMP Groups: 512Priority Queues: 4Packet Buffer Size: 1 MBLED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNCSerial InterfaceConsole Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)USB InterfaceUSB Connector: USB Type A (Reserved)Input/Output InterfaceAlarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDCDigital Input Channels: 1Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAButtons: Reset buttonDIP Switch ConfigurationDIP Switches: Turbo Ring, Master, Coupler, ReservePower ParametersConnection: 2 removable 4-contact terminal block(s)Pre-installed Power Module: PWR-100–LVNote: The EDS-4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-4012-4GS-T + PWR-100–LV = EDS-4012-4GS-LV-TEDS-4012-4GS-T + PWR-105-HV-I = EDS-4012-4GS-HV-TIf you install a different power module, refer to the

## Soubory ke stažení

* [Katalog moxa-eds-4012-series-datasheet-v1.0](https://www.elvac.eu/files/shop/moxa/datasheet/moxa-eds-4012-series-datasheet-v1.0.pdf)
