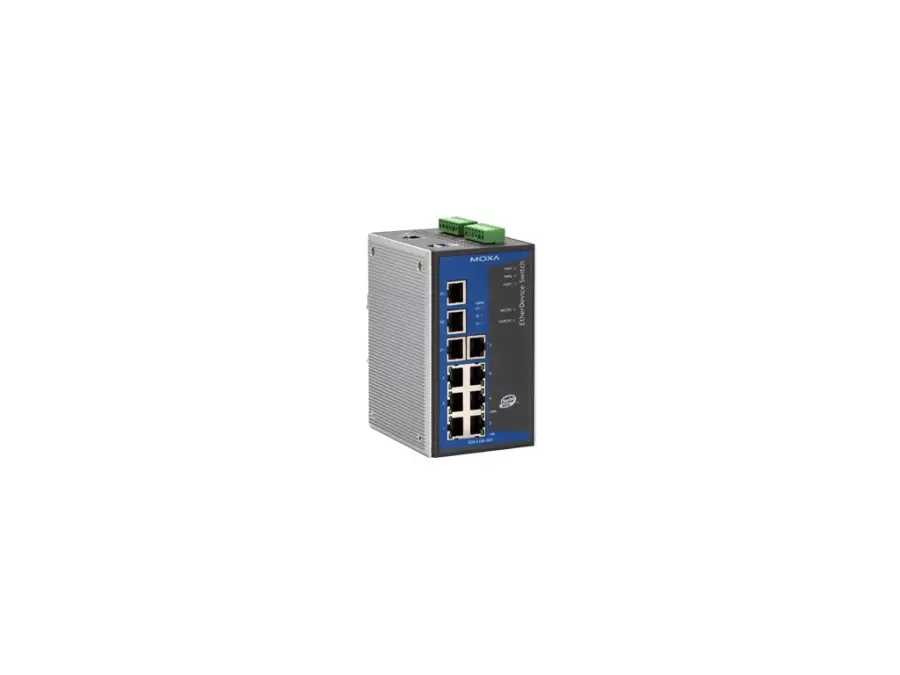

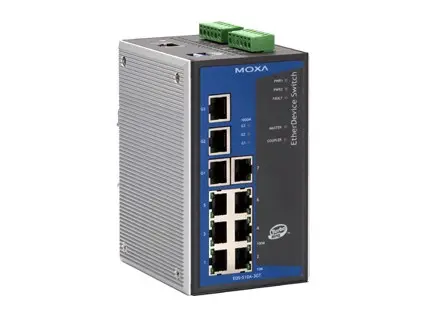

--- title: "EDS-510A-3GT" category: "Industrial Communication > Industrial Ethernet > Managed Ethernet Switches" --- **Kategorie:** Industrial Communication > Industrial Ethernet > Managed Ethernet Switches # EDS-510A-3GT Industrial Managed Ethernet switch, Ports: 7 Auto negotiation speed Full/Half duplex mode Auto MDI/M, Temp: -10 to 60°C (14 to 140°F), Power: 24 VDC Redundant dual inputs **Dostupnost:** Not in stock (0 pcs) ## Základní informace | Parametr | Hodnota | | --- | --- | | Unit | pcs | | Code 1 | 180408111510 | | Warranty | 60 | | Warranty for companies | 60 | | Brand | MOXA | ## Podrobný popis Industrial Managed Ethernet switch – Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, 3 10/100/1000BaseT(X) ports, 0 to 60°C operating temperatureInput/Output InterfaceAlarm Contact Channels: 2 Relay output with current carrying capacity of 1 A @ 24 VDCDigital Input Channels: 2Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 7 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection10/100/1000BaseT(X) Ports (RJ45 connector): 3 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connectionStandards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACPEthernet Software FeaturesFilter: 802.1Q VLAN Port-based VLAN IGMP v1/v2 GVRP GMRPIndustrial Protocols: EtherNet/IP Modbus TCPManagement: IPv4/IPv6 SNMPv1/v2c/v3 LLDP Port Mirror Back Pressure Flow Control BOOTP, DDM, DHCP Option 66/67/82 DHCP Server/Client Flow control RARP, RMON, SMTP, SNMP Inform Syslog Telnet TFTPMIB: MIB-II Bridge MIB Ethernet-like MIB P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBRedundancy Protocols: STP, MSTP, RSTP, LACP Link Aggregation Turbo Chain Turbo Ring v1/v2Security: HTTPS/SSL, RADIUS, TACACS+ Port Lock SSHTime Management: NTP Server/Client SNTPSwitch PropertiesIGMP Groups: 256MAC Table Size: 8 KMax. No. of VLANs: 64Packet Buffer Size: 1 MbitsPriority Queues: 4VLAN ID Range: VID 1 to 4094LED InterfaceLED Indicators: PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (Gigabit port), MSTR/HEAD, CPLR/TAILSerial InterfaceConsole Port: RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)DIP Switch ConfigurationEthernet Interface: Turbo Ring, Master, Coupler, ReservePower ParametersConnection: 2 removable 6-contact terminal block(s)Input Current: 0.48 A @ 24 VDCInput Voltage: 24 VDC Redundant dual inputsOperating Voltage: 12 to 45 VDCOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)Weight: 1170 g (2.58 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsSafety: EN 62368-1 UL 60950-1 UL 508< ## Technická specifikace | Vlastnost | Hodnota | | --- | --- | | Max. provozní teplota | Max. provozní teplota 60 °C | | Celkový počet LAN portů | Celkový počet LAN portů 10 | | Počet metalických LAN portů | Počet metalických LAN portů 10 | | Počet portů max 1000 Mb | Počet portů max 1000 Mb 3 | | Počet portů max 100 Mb | Počet portů max 100 Mb 7 | | Normy | Normy ATEX Zone 2; DNV / GL; NEMA TS2; UL 508 / UL 60950-1 | | Podpora MSTP a 802.1X | Podpora MSTP a 802.1X Ano | | Způsob montáže | Způsob montáže DIN/Panel | ## Soubory ke stažení * [Manual Moxa_Managed_Switches_UM_v8_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/Moxa_Managed_Switches_UM_v8_ELVAC15.pdf) * [Katalog EDS-510A_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/EDS-510A_Series_ELVAC15.pdf)
