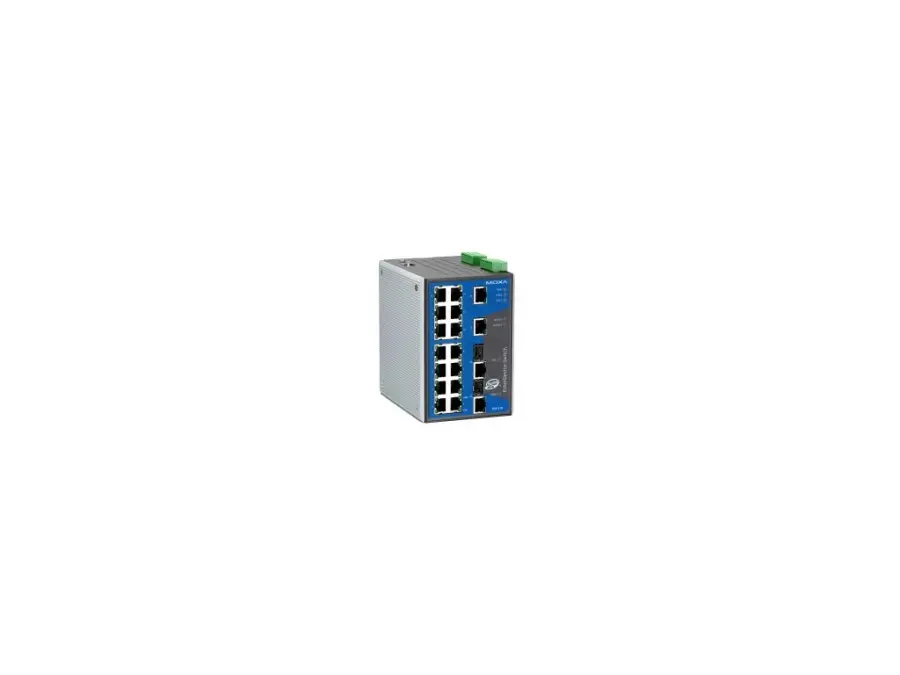

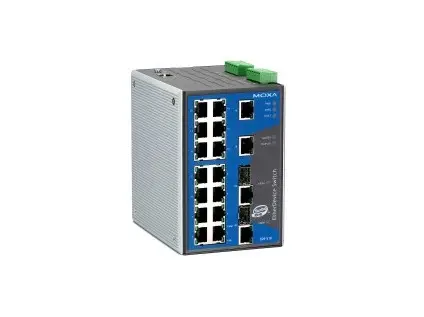

EDS-518E-4GTXSFP

Industrial Managed Ethernet switch – Managed Gigabit Ethernet switch with 14 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, -10 to 60°C operating temperature

Input/Output Interface

• Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
• Buttons: Reset button
• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 14 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
• Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 4
• 10/100/1000BaseT(X) Ports (RJ45 connector): Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
• Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

• Filter: 802.1Q VLAN BPDU Filter BPDU Guard GMRP, GVRP, IGMP v1/v2/v3 Port-based VLAN
• Industrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device
• Management: LLDP Back Pressure Flow Control BOOTP Port Mirroring DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP, RMON, SCP, SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
• MIB: Ethernet-like MIB MIB-II Bridge MIB P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIB
• Redundancy Protocols: Link Aggregation MRP, MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2
• Security: Broadcast storm protection HTTPS/SSL TACACS+ SNMPv3 MAB authentication Sticky MAC NTP authentication MAC ACL Port Lock RADIUS, SSH, SMTP with TLS
• Time Management: NTP Server/Client SNTP

Switch Properties

• IGMP Groups: 2048
• MAC Table Size: 16 K
• Max. No. of VLANs: 64
• Packet Buffer Size: 1 Mbits
• Priority Queues: 4
• VLAN ID Range: VID 1 to 4094

USB Interface

• Storage Port: USB Type A

LED Interface

• LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL

Serial Interface

• Console Port: USB-serial console (Type B connector)

DIP Switch Configuration

• DIP Switches: Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Connection: 2 removable 4-contact terminal block(s)
• Input Current: 0.45 A @ 24 VDC
• Input Voltage: 12/24/48/-48 VDC Redundant dual inputs
• Operating Voltage: 9.6 to 60 VDC
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
• Weight: 1630 g (3.59 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508
• EMC: EN 55032/35 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Hazardous Locations: ATEX Class I Division 2
• Power Substation: IEC 61850-3 IEEE 1613
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Maritime: LR, ABS, DNV, NK

MTBF

• Standards: Telcordia (Bellcore), GB
• Time: 865,559 hrs

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
