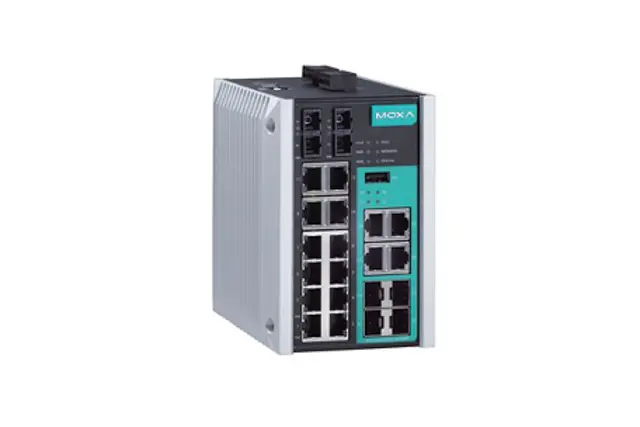

# EDS-518E-SS-SC-4GTXSFP-T

Industrial Managed Ethernet switch, Ports: 12 Auto negotiation speed Full/Half duplex mode Auto MDI/, SFP: 4, Temp: -40 to 75°C (-40 to 167°F), Power: 12/24/48/-48 VDC Redundant dual inputs

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408110954 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed Ethernet switch – Managed Gigabit Ethernet switch with 12 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 2 100BaseFX single-mode ports with SC connector, -40 to 75°C operating temperatureInput/Output InterfaceAlarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDCButtons: Reset buttonDigital Input Channels: 1Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 12 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connectionCombo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 410/100/1000BaseT(X) Ports (RJ45 connector): Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection100BaseFX Ports (single-mode SC connector): 2Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACPEthernet Software FeaturesFilter: 802.1Q VLAN BPDU Filter BPDU Guard GMRP, GVRP, IGMP v1/v2/v3 Port-based VLANIndustrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO DeviceManagement: LLDP Back Pressure Flow Control BOOTP Port Mirroring DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP, RMON, SCP, SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTPMIB: Ethernet-like MIB MIB-II Bridge MIB P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBRedundancy Protocols: Link Aggregation MRP, MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2Security: Broadcast storm protection HTTPS/SSL TACACS+ SNMPv3 MAB authentication Sticky MAC NTP authentication MAC ACL Port Lock RADIUS, SSH, SMTP with TLSTime Management: NTP Server/Client SNTPSwitch PropertiesIGMP Groups: 2048MAC Table Size: 16 KMax. No. of VLANs: 64Packet Buffer Size: 1 MbitsPriority Queues: 4VLAN ID Range: VID 1 to 4094USB InterfaceStorage Port: USB Type ALED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (fiber port), Gigabit combo port, MSTR/HEAD, CPLR/TAILSerial InterfaceConsole Port: USB-serial console (Type B connector)DIP Switch ConfigurationDIP S

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-40 °C |
| Max. provozní teplota | Max. provozní teplota
75 °C |
| Celkový počet LAN portů | Celkový počet LAN portů
18 |
| Počet metalických LAN portů | Počet metalických LAN portů
16 |
| Počet optických LAN portů | Počet optických LAN portů
2 |
| Počet portů max 1000 Mb | Počet portů max 1000 Mb
4 |
| Počet portů max 100 Mb | Počet portů max 100 Mb
14 |
| Počet portů max 10 Mb | Počet portů max 10 Mb
2 |
| Počet portů max 10 Gb | Počet portů max 10 Gb
2 |
| Normy | Normy
ATEX Zone 2; EN 50121-4; NEMA TS2; UL 508 / UL 60950-1 |
| Počet SFP slotů | Počet SFP slotů
4 |
| Podpora MSTP a 802.1X | Podpora MSTP a 802.1X
Ano |
| Způsob montáže | Způsob montáže
DIN/Panel |
