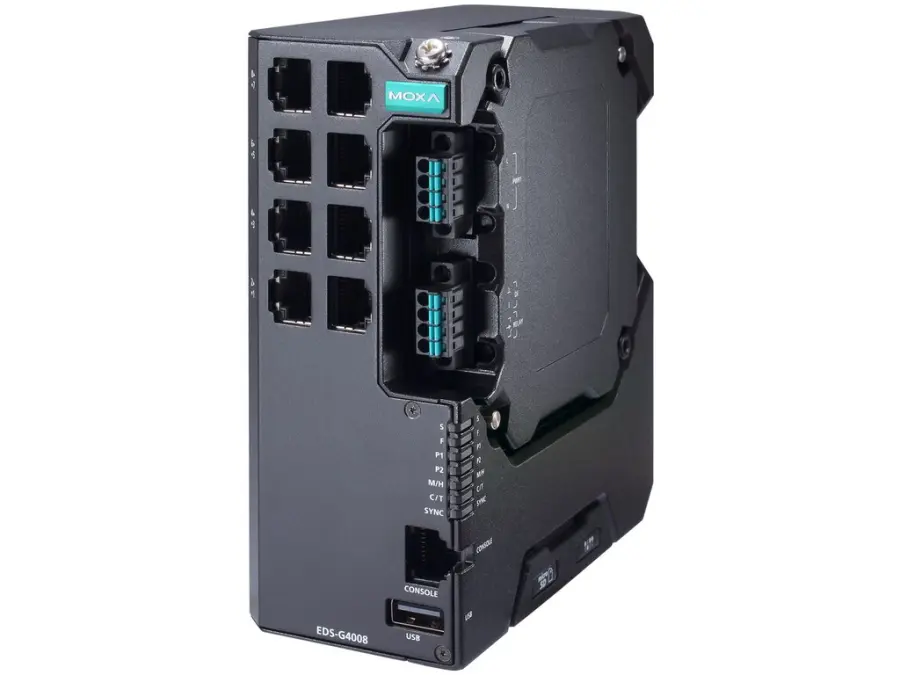

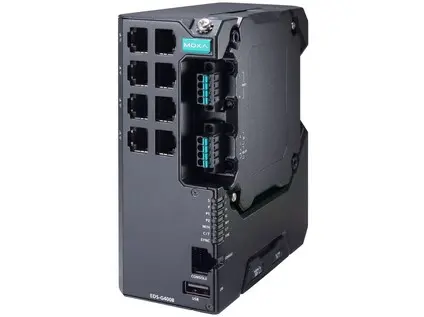

EDS-G4008-LV-T

Industrial Managed Ethernet switch – Managed Ethernet switch with 8 10/100/1000BaseT(X) ports, dual power supply, 12/24/48 VDC, -40 to 75°C operating temperature

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 8 Auto MDI/MDI-X connection Auto negotiation speed Full/Half duplex mode
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication

Ethernet Software Features

• Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device
• Management: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP RARP LLDP Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB Fiber check
• Filter: GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
• Redundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing Link Aggregation MRP MSTP
• Security: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL SSH RADIUS TACACS+ Access control list Login and Password Policy DHCP Snooping
• Time Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
• Protocols: IPv4/IPv6 TCP/IP UDP ICMP ARP RARP TFTP DNS NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog
• MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9

Switch Properties

• MAC Table Size: 16 K
• Jumbo Frame Size: 9.216 KB
• Max. No. of VLANs: 256
• VLAN ID Range: VID 1 to 4094
• IGMP Groups: 512
• Priority Queues: 4
• Packet Buffer Size: 1 MB

LED Interface

• LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface

• Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface

• USB Connector: USB Type A (Reserved)

Input/Output Interface

• Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
• Buttons: Reset button

DIP Switch Configuration

• DIP Switches: Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Connection: 2 removable 4-contact terminal block(s)
• Pre-installed Power Module: PWR-100–LV
• Note: The EDS-G4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-TEDS-G4008-T + PWR-105-HV-I = EDS-G4008-HV-TIf you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.
• Input Voltage: 12/24/48 VDC Redundant dual inputs
• Operating Voltage: 9.6 to 60 VDC
• Input Current: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported
• Power Consumption (Max.): 8.84 W

Physical Characteristics

• IP Rating: IP40
• Dimensions: 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
• Weight: 859.5 g (1.89 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)
• Housing: Metal

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Industrial Cybersecurity: IEC 62443-4-2 Security Level 2
• Safety: UL 61010-2-201 EN 62368-1 (LVD)
• EMC: EN 55032/35 EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Maritime: LR ABS DNV NK
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Power Substation: IEC 61850-3 IEEE 1613 Class 1
• Hazardous Locations: Class I Division 2 IECEx ATEX

MTBF

• Time: 1,098,085 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
