Description

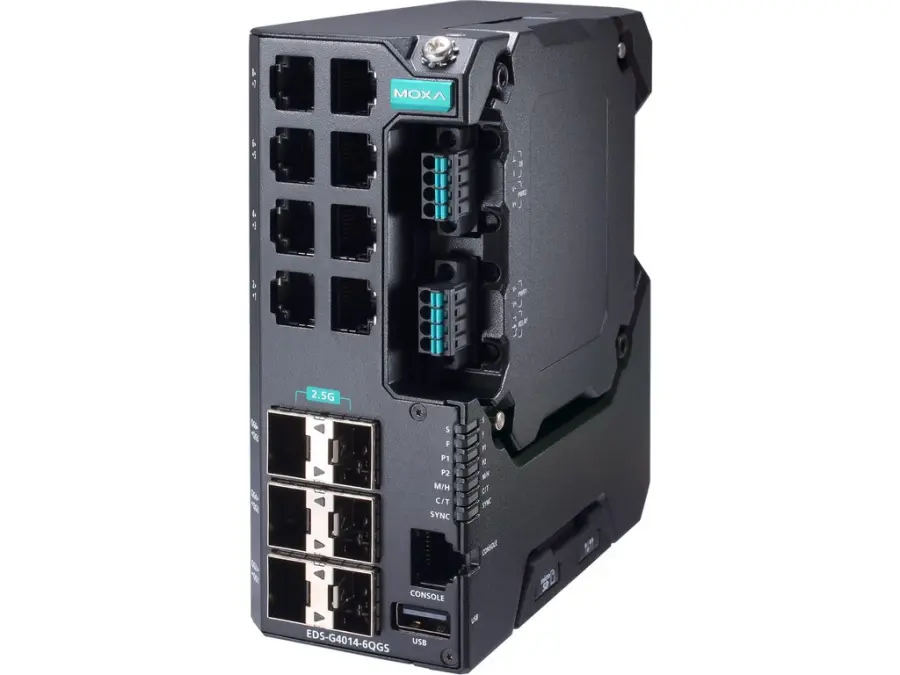

Industrial Managed Ethernet switch – Managed Ethernet switch with 8 10/100/1000BaseT(X) ports, 6 1000/2500BaseSFP ports, single power supply, 110/220 VAC/VDC, -10 to 60°C operating temperature
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 8 Auto MDI/MDI-X connection Auto negotiation speed Full/Half duplex mode
- 1000/2500BaseSFP Ports: 6
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3bz for 2.5GBaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication
Ethernet Software Features
- Industrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device
- Management: IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server/Client ARP, RARP, LLDP Port Mirroring (SPAN, RSPAN) Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON, TFTP, SFTP, HTTP, HTTPS Telnet Syslog Private MIB Fiber check
- Filter: GMRP, GVRP, GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier
- Redundancy Protocols: STP RSTP Turbo Ring v2 Turbo Chain Ring Coupling Dual-Homing Link Aggregation MRP MSTP
- Security: Broadcast storm protection Rate Limit Trust access control Static Port Lock MAC Sticky HTTPS/SSL, SSH, RADIUS, TACACS+ Login and Password Policy Access control list DHCP Snooping
- Time Management: SNTP NTP Server/Client NTP Authentication IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
- Protocols: IPv4/IPv6 TCP/IP, UDP, ICMP, ARP RARP, TFTP, DNS, NTP Client DHCP Server DHCP Client 802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 RMON Syslog
- MIB: P-BRIDGE MIB Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB, RMON, MIB Groups 1, 2, 3, 9
Switch Properties
- MAC Table Size: 16 K
- Jumbo Frame Size: 9.216 KB
- Max. No. of VLANs: 256
- VLAN ID Range: VID 1 to 4094
- IGMP Groups: 512
- Priority Queues: 4
- Packet Buffer Size: 1 MB
LED Interface
- LED Indicators: PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface
- Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
- USB Connector: USB Type A (Reserved)
Input/Output Interface
- Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
- Buttons: Reset button
DIP Switch Configuration
- DIP Switches: Turbo Ring, Master, Coupler, Reserve
Power Parameters
- Connector: 2 removable 4-contact terminal block(s)
- Pre-installed Power Module: PWR-105-HV-I
- Note: The EDS-G4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.For example:EDS-G4014-6QGS-T + PWR-100-LV = EDS-G4014-6QGS-LV-TEDS-G4014-6QGS-T + PWR-105-HV-I = EDS-G4014-6QGS-HV-TIf you install a
