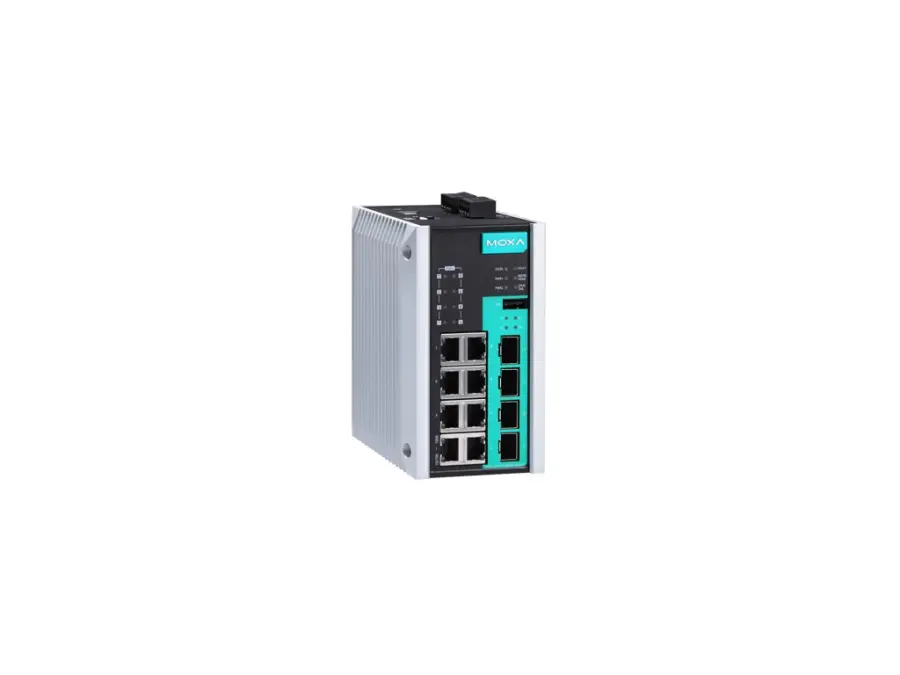

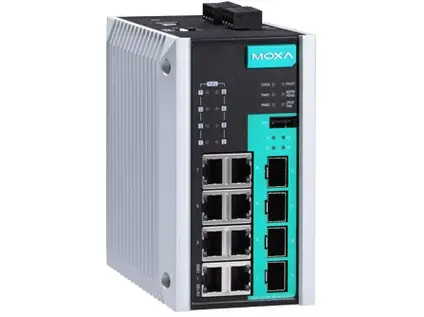

EDS-G512E-8PoE-4GSFP

Industrial Managed PoE Ethernet switch – 12-port full Gigabit managed Ethernet switch with 8 10/100/1000BaseT(X) PoE/PoE+ ports, 4 100/1000BaseSFP slots, -10 to 60°C operating temperature

Input/Output Interface

• Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
• Buttons: Reset button
• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

• PoE Ports (10/100/1000BaseT(X), RJ45 connector): 8
• 100/1000BaseSFP Slots: 4
• Standards: IEEE 802.3af/at for PoE/PoE+ output

Ethernet Software Features

• Filter: 802.1Q VLAN BPDU Filter BPDU Guard GMRP, GVRP, IGMP v1/v2/v3 Port-based VLAN
• Industrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device
• Management: LLDP Back Pressure Flow Control BOOTP Port Mirror DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP, RMON, SCP, SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTP
• MIB: Ethernet-like MIB MIB-II Bridge MIB P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIB
• Redundancy Protocols: Link Aggregation MRP, MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2
• Security: Broadcast storm protection HTTPS/SSL TACACS+ SNMPv3 MAB authentication Sticky MAC NTP authentication IP, ACL, MAC, ACL Port Lock RADIUS, SSH, SMTP with TLS
• Time Management: NTP Server/Client SNTP

Switch Properties

• IGMP Groups: 2048
• Jumbo Frame Size: 9.6 KB
• MAC Table Size: 8 K
• Max. No. of VLANs: 256
• Packet Buffer Size: 4 Mbits
• Priority Queues: 4
• VLAN ID Range: VID 1 to 4094

USB Interface

• Storage Port: USB Type A

LED Interface

• LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL, smart PoE LED (EDS-G512E-8PoE-4GSFP Series only)

Serial Interface

• Console Port: USB-serial console (Type B connector)

DIP Switch Configuration

• DIP Switches: Turbo Ring, Master, Coupler, Reserve

Power Parameters

• Connection: 2 removable 4-contact terminal block(s)
• Input Current: 5.3 A @ 48 VDC
• Input Voltage: 48 VDC
• Operating Voltage: 44 to 57 VDC (> 50 VDC for PoE+ output recommended)
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported
• Power Budget: Max. 240 W for total PD consumption Max. 36 W for each PoE port
• Power Consumption (Max.): Max. 14.36 W full loading without PDs’ consumption When selecting a power supply, check the PD power consumption.

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
• Weight: 1,540 g (3.40 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508 EN 62368-1
• EMI: FCC Part 15B Class A
• EMS: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
• Power Substation: IEC 61850-3 IEEE 1613
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32

MTBF

• Time: 788,215 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
