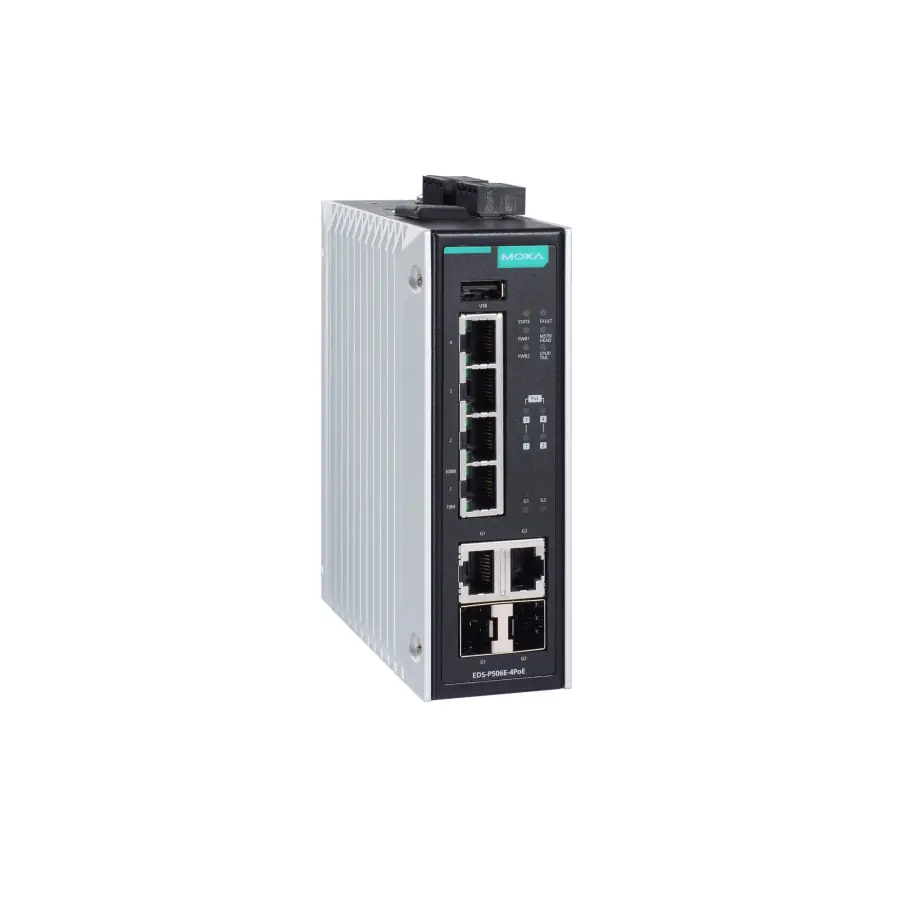

# EDS-P506E-4PoE-2GTXSFP

Industrial Managed PoE Ethernet switch, Ports: 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto ne, SFP: 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto ne, PoE: 4 Full/Half duplex m

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408111890 |
| Warranty | 61 |
| Warranty for companies | 61 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed PoE Ethernet switch – Managed Ethernet switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -10 to 60°C operating temperatureEthernet InterfaceCombo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedPoE Ports (10/100BaseT(X), RJ45 connector): 4 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speedStandards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesFilter: 802.1Q VLAN BPDU Filter BPDU Guard GMRP, GVRP, IGMP v1/v2/v3 Port-based VLANIndustrial Protocols: EtherNet/IP Modbus TCP PROFINETManagement: Back Pressure Flow Control BOOTP, DDM, DHCP Option 66/67/82 DHCP Server/Client Fiber check Flow control IPv4/IPv6 RARP, RMON, SCP, SMTP SNMP Inform SNMPv1/v2c/v3 Syslog Telnet TFTPMIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBRedundancy Protocols: Link Aggregation MRP, MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2Security: Broadcast storm protection HTTPS/SSL, MAC, ACL, TACACS+ MAB authentication Sticky MAC NTP authentication Port Lock RADIUS SSHTime Management: IEEE 1588v2 PTP (software-based) NTP Server/Client SNTPSwitch PropertiesIGMP Groups: 256Jumbo Frame Size: 9.6 KBMAC Table Size: 8 KPacket Buffer Size: 12 MbitsPriority Queues: 4Max. No. of VLANs: 64VLAN ID Range: VID 1 to 4094USB InterfaceStorage Port: USB Type ALED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 10/100/1000M (Gigabit Combo port), MSTR/HEAD, CPLR/TAIL, PoESerial InterfaceConsole Port: USB-serial console (Type B connector)Input/Output InterfaceDigital Input Channels: 1Digital Inputs: Max. input current: 8 mA +13 to +30 V for state 1 -30 to +3 V for state 0Alarm Contact Channels: 1 Relay output with current carrying capacity of 0.5 A @ 48 VDCButtons: Reset buttonDIP Switch ConfigurationEthernet Interface: Turbo Ring, Master, Coupler, ReservePower ParametersInput Voltage: 12/24/48 VDC Redundant dual inputsOperating Voltage: 12 to 57 VDC (> 50 VDC for PoE+ output recommended)Input Current: 4.08 A @ 48 VDCMax. PoE Power Output per Port: 60 WConnection: 2 removable 4-contact terminal block(s)Power Consumption (Max.): Max. 18.96 W full loading without PDs’ consumptionTotal PoE Power Budget: Max. 180 W for total PD's consumption @ 48 VDC input Max. 150 W for total PD's consumption @ 24 VDC input Max. 62 W for total PD's consumption @ 12 VDC input
