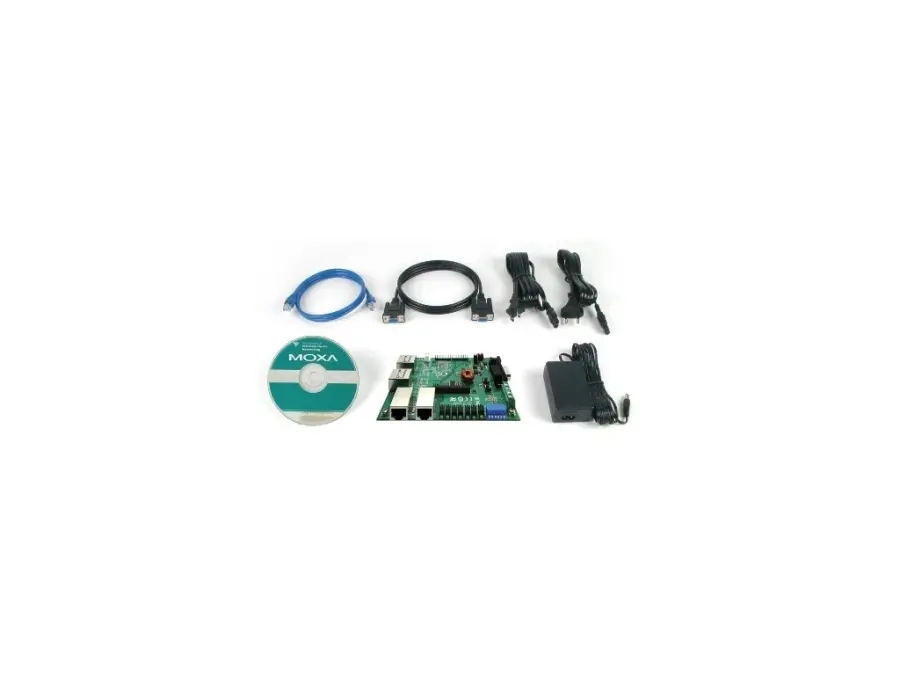

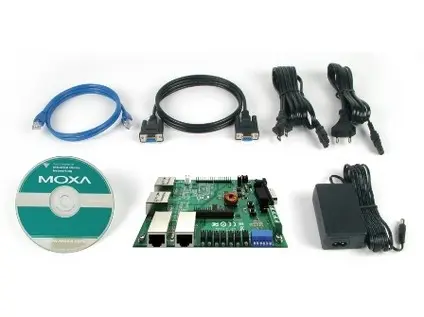

EOM-104 Evaluation Kit

Industrial Managed Ethernet switch – Evaluation kit with an EOM-104 switch module and evaluation board with 4 10/100BaseT(X) ports for testing and application development

Ethernet Interface

• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol
• 10/100BaseT(X) Port: 4
• Connector: 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins
• GPIO: 4 x Programmable I/O pins

Ethernet Software Features

• Protocols: BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
• MIB: Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Switch Properties

• MAC Table Size: 1 K
• Packet Buffer Size: 512 kbits

Serial Interface

• Console Port: RS-232 (TxD, RxD, DTR, DSR)

Power Parameters

• Input Current: 0.48 A @ 3.3 VDC

Physical Characteristics

• Dimensions: 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)
• Weight: 21 g (0.046 lb)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
