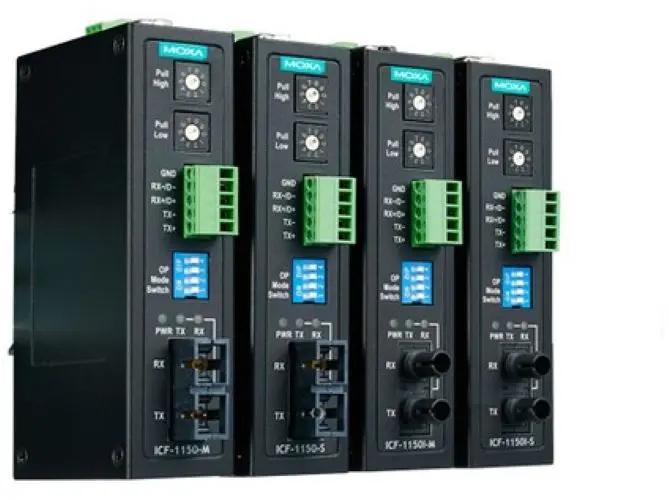

ICF-1150I-M-SC-T

Serial converter – Industrial RS-232/422/485 to multi-mode fiber converter, SC connector, 2 kV isolation, -40 to 85°C operating temperature

Serial Interface

• No. of Ports: 2
• Serial Standards: RS-232 RS-422 RS-485
• Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
• Flow Control: ADDC (automatic data direction control) for RS-485
• Connector: 5-pin terminal block Multi-mode SC connector
• Isolation: 2 kV (I models)
• Optical Fiber: Read more Low-Speed Fiber Module Multi-Mode Single-Mode Fiber Cable Requirements 50/125 µm, 800 MHz G.652 62.5/125 µm, 500 MHz Typical Distance 5 km 40 km Wavelength Typical (nm) 850 1310 TX Range (nm) 840 to 860 1290 to 1330 RX Range (nm) 800 to 900 1100 to 1650 Optical Power TX Range (dBm) 0 to -8 0 to -8 RX Range (dBm) 0 to -25 0 to -25 Link Budget (dB) 15 20 Dispersion Penalty (dB) 1 1 Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.
• Pull High/Low Resistor for RS-485: 150 kilo-ohm, 10 kilo-ohm, 4.7 kilo-ohm, 3.3 kilo-ohm, 1 kilo-ohm, 909 ohm, 822 ohm, 770 ohm, 500 ohm, 485 ohm
• RS-485 Data Direction Control: ADDC (automatic data direction control)
• Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms

Serial Signals

• RS-232: TxD, RxD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: 300 mA (max)
• Input Voltage: 12 to 48 VDC
• No. of Power Inputs: 1
• Overload Current Protection: Supported
• Power Connector: Terminal block

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
• Weight: 330 g (0.73 lb)
• Installation: DIN-rail mounting

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: UL 61010-2-201
• Vibration: IEC 60068-2-6
• Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D ATEX Zone 2

MTBF

• Time: 792,085 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
