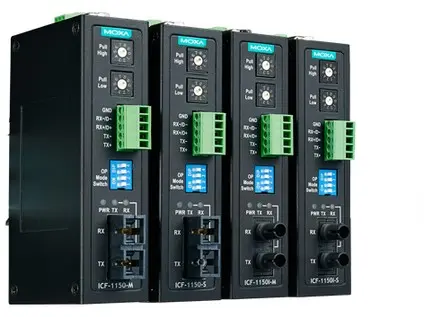

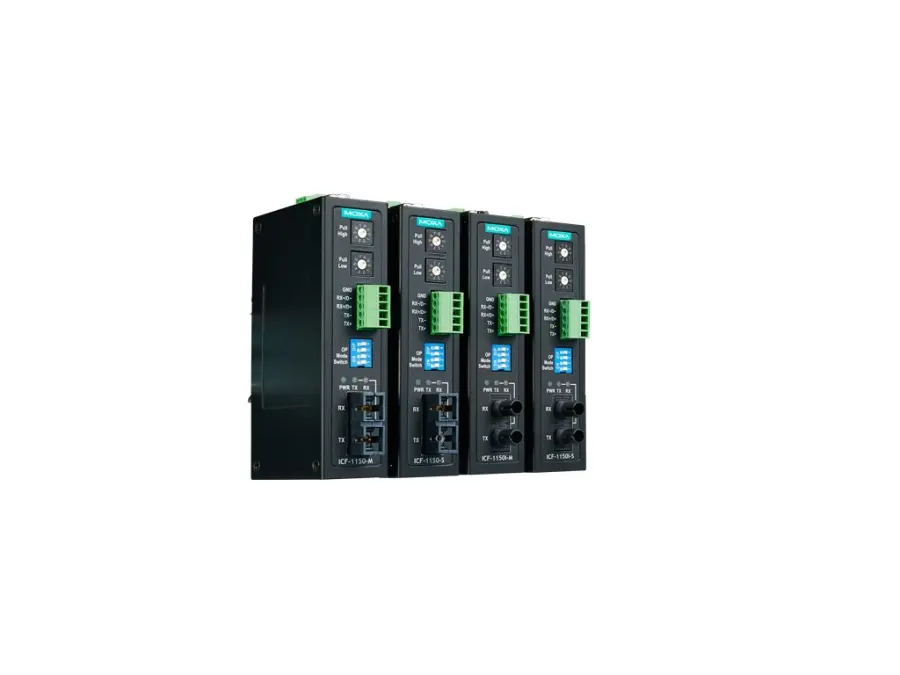

# ICF-1150I-S-SC-IEX

Serial converter, Serial: RS-232 RS-422 RS-485, Temp: 0 to 60°C (32 to 140°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181616020927 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial converter – Industrial RS-232/422/485 to single-mode fiber converter, SC connector, 2 kV isolation, IECEx, 0 to 60°C operating temperatureSerial InterfaceNo. of Ports: 2Serial Standards: RS-232 RS-422 RS-485Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)Flow Control: ADDC (automatic data direction control) for RS-485Connector: 5-pin terminal block Single-mode SC connectorIsolation: 2 kV (I models)Optical Fiber: Read more Low-Speed Fiber Module Multi-Mode Single-Mode Fiber Cable Requirements 50/125 µm, 800 MHz G.652 62.5/125 µm, 500 MHz Typical Distance 5 km 40 km Wavelength Typical (nm) 850 1310 TX Range (nm) 840 to 860 1290 to 1330 RX Range (nm) 800 to 900 1100 to 1650 Optical Power TX Range (dBm) 0 to -8 0 to -8 RX Range (dBm) 0 to -25 0 to -25 Link Budget (dB) 15 20 Dispersion Penalty (dB) 1 1 Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.Pull High/Low Resistor for RS-485: 150 kilo-ohm, 10 kilo-ohm, 4.7 kilo-ohm, 3.3 kilo-ohm, 1 kilo-ohm, 909 ohm, 822 ohm, 770 ohm, 500 ohm, 485 ohmRS-485 Data Direction Control: ADDC (automatic data direction control)Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohmsSerial SignalsRS-232: TxD, RxD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPower ParametersInput Current: 300 mA (max)Input Voltage: 12 to 48 VDCNo. of Power Inputs: 1Overload Current Protection: SupportedPower Connector: Terminal blockPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)Weight: 330 g (0.73 lb)Installation: DIN-rail mountingEnvironmental LimitsOperating Temperature: 0 to 60°C (32 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMFEnvironmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3Safety: UL 61010-2-201Vibration: IEC 60068-2-6Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D ATEX Zone 2 IECExMTBFTime: 792,085 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Katalog ICF-1150_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/ICF-1150_Series_ELVAC15.pdf)
* [Manual ICF-1150_Series_QIG_v5_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/ICF-1150_Series_QIG_v5_ELVAC15.pdf)
