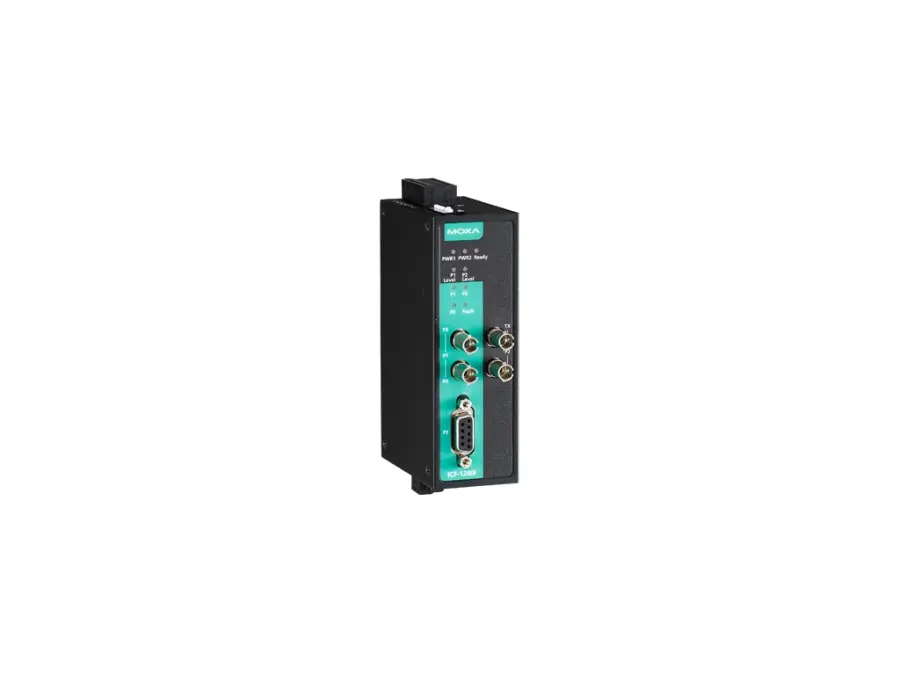

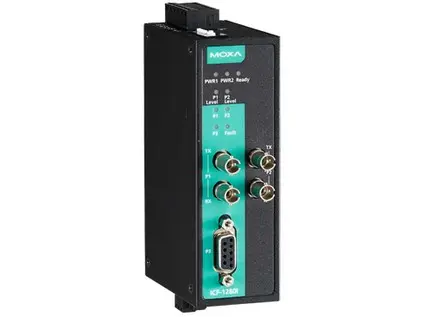

ICF-1280I-M-ST-T

Industrial edge connectivity device – PROFIBUS to fiber converter, multi-mode, 2 ST connectors, -40 to 75°C operating temperature

Serial Interface

• Optical Fiber: ICF-1280I-M-ST Series: 100BaseFX ports (multi-mode ST connector)ICF-1280I-S-ST Series: 100BaseFX ports (single-mode ST connector)
• Optical Fiber: Read more Multi-Mode Single-Mode Wavelength 820 nm 1310 nm Tx Output -14 dBm -7 dBm Rx Sensitivity -28 dBm -29 dBm Link Budget 14 dBm 21 dBm Typical Distance 4 km 45 km

PROFIBUS Interface

• Baudrate: 9600 bps to 12 Mbps
• Connector: DB9 female
• Industrial Protocols: PROFIBUS DP
• Isolation: 2 kV (built-in)
• No. of Ports: 1

Power Parameters

• Input Current: 370 mA @ 12 to 48 VDC
• Input Voltage: 12 to 48 VDC
• No. of Power Inputs: 2
• Overload Current Protection: Supported
• Power Connector: Terminal block (for DC models)
• Power Consumption: 370 mA @ 12 to 48 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 39 x 115 x 70 mm (1.54 x 4.53 x 2.76 in)
• Weight: 225 g (0.49 lb)
• Installation: DIN-rail mounting

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Hazardous Locations: ATEX Class I Division 2 IECEx
• Maritime: DNV
• Safety: IEC 60950-1 UL 508
• Vibration: IEC 60068-2-6

MTBF

• Time: 1,870,854 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
